Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip - SEG Series

Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip - SEG Series

PUL-d8244a

Lewis SEG Series Overhead Pulling Grip - Durable, Efficient, High Load Capacity

$39.99
$39.99
Sale

Initiate Order

Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip - SEG Series

Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip - SEG Series

$39.99

Quantity: 1

Claim Your Seller Account

Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip - SEG Series

Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip - SEG Series

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

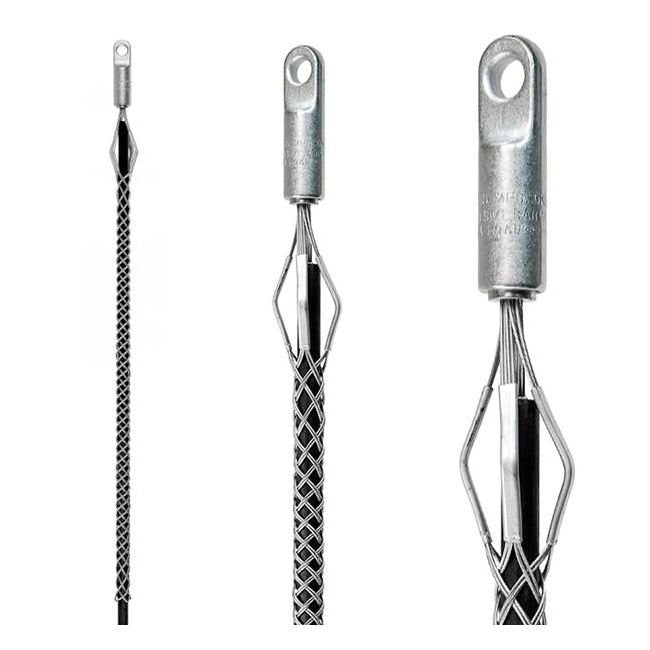

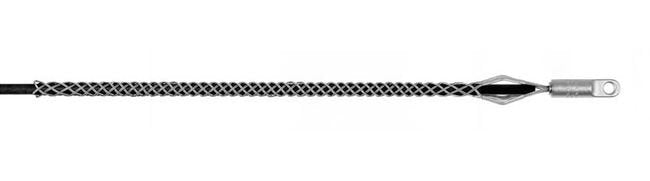

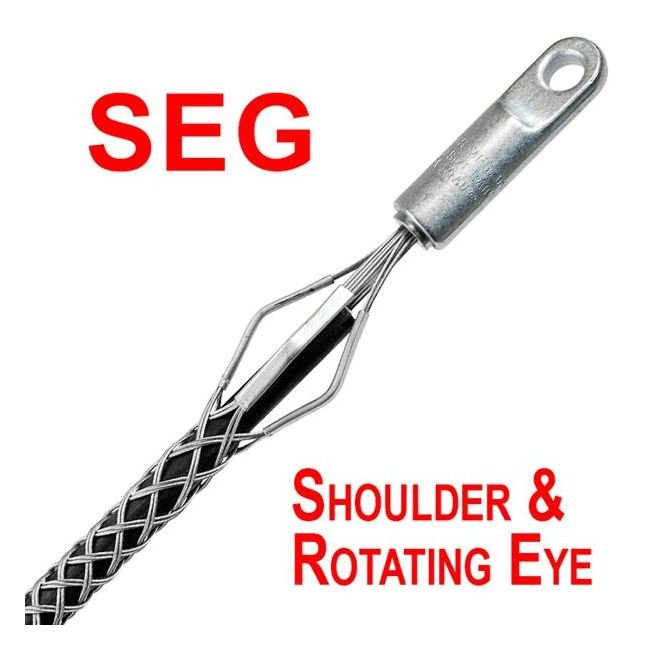

The Lewis SEG Series Overhead Pulling Grip is a rugged and reliable solution for wire pulling tasks. With hardened steel rotating eyes designed for durability and efficiency, this grip effortlessly threads through blocks and sheaves without binding. It offers a work load capacity of 11200 lb and an ultimate tensile strength of 22400 lb, meeting the highest industry standards for overhead pulling applications. The rotating swivel eye, though not a ball bearing swivel, provides controlled torque relief, ensuring smooth operation in demanding environments. Trusted by professionals, this grip is a dependable choice for a wide range of wire pulling needs.

Product Specifications

Additional Information

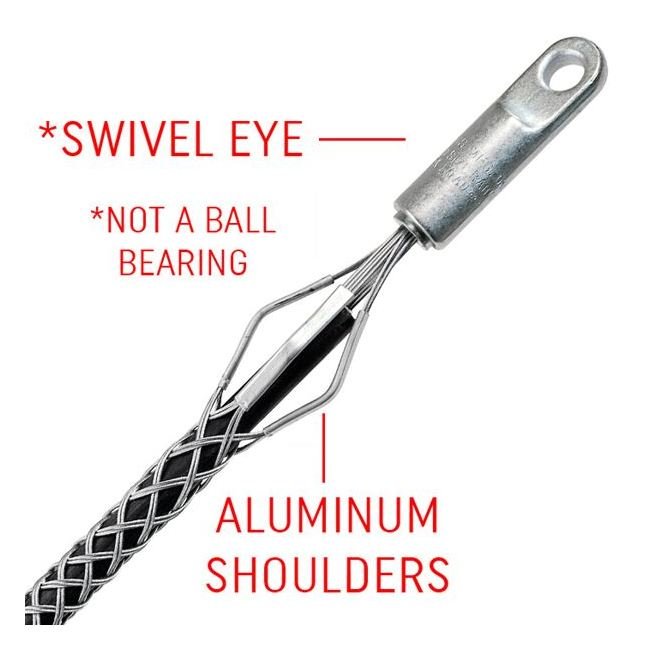

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

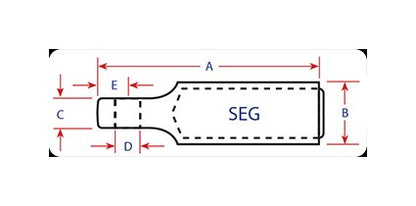

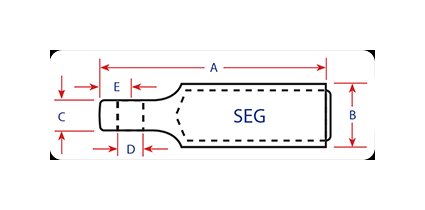

Dimensions A
6 1/2 in
Dimensions B
1 5/8 in
Dimensions C
5/8 in
Dimensions D
55/64 in
Dimensions E
1 in
Dimensions Mesh
48 in
Dimensions Range
1 1/2 to 2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
22400 lb
Specifications Work Load Wl
11200 lb
