Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
SKU:PUL-d8244a
Enhance cable pulling efficiency with the Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip featuring a hardened steel rotating eye.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

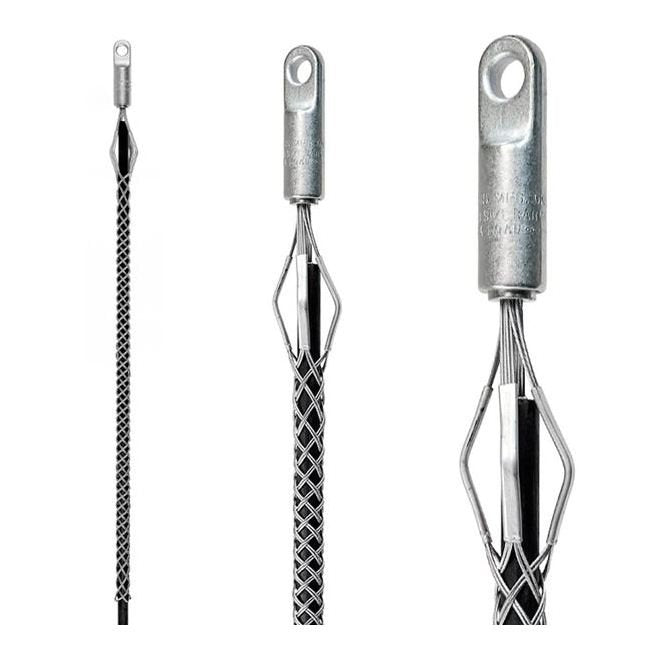

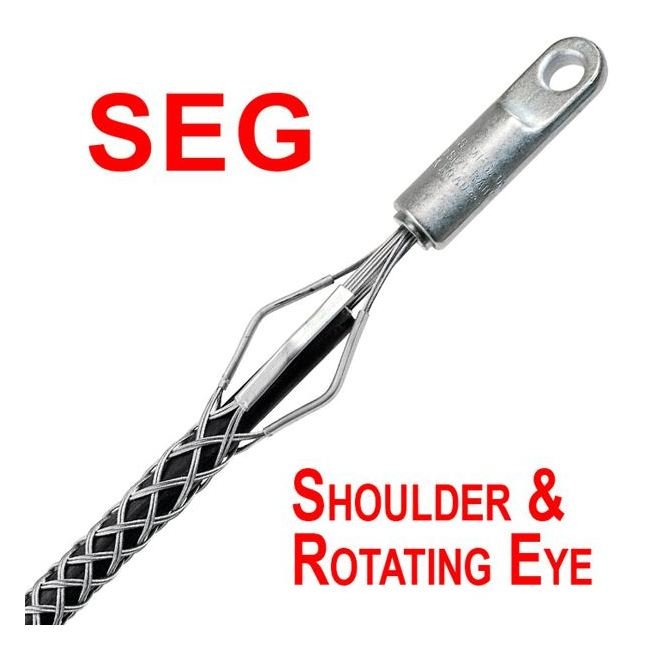

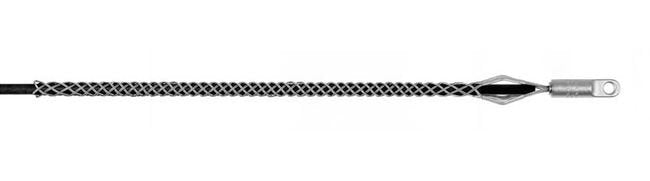

The Lewis 1 1/2 to 2 in. Range Overhead Pulling Grip is a top-tier solution for overhead cable pulling applications. With a work load capacity of 11200 lb and ultimate tensile strength of 22400 lb, this grip is engineered for durability and efficiency. The hardened steel rotating eye ensures smooth operation through blocks and sheaves without binding. Noteworthy for its rugged construction and compact design, this SEG Series model guarantees reliable performance under demanding conditions. For institutions seeking robust pulling grips that meet stringent standards, this Lewis grip delivers unmatched quality and precision.
Product Specifications
Additional Information

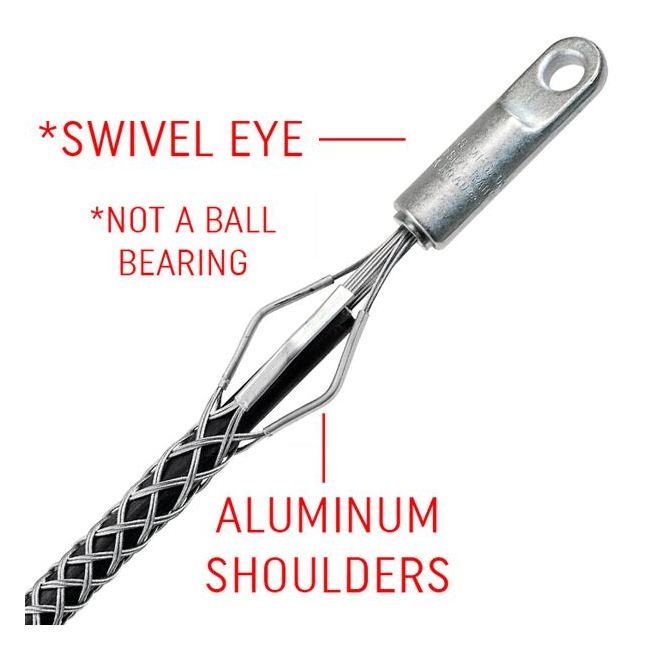

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

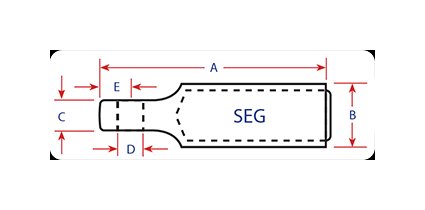

Dimensions A
6 1/2 in
Dimensions B
1 5/8 in
Dimensions C
5/8 in
Dimensions D
55/64 in
Dimensions E
1 in
Dimensions Mesh
48 in
Dimensions Range
1 1/2 to 2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
22400 lb
Specifications Work Load Wl
11200 lb
