Lewis 1-1.5 in. Double Weave Aramid Fiber Ouchless Grip
Lewis 1-1.5 in. Double Weave Aramid Fiber Ouchless Grip
SKU:PUL-4b6bdc
Enhanced safety and efficiency with Lewis 1-1.5 in. Double Weave Aramid Fiber Ouchless Grip for wire pulling applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis 1-1.5 in. Double Weave Aramid Fiber Ouchless Grip
$29.99
Quantity: 1
Claim Your Seller Account
Lewis 1-1.5 in. Double Weave Aramid Fiber Ouchless Grip
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

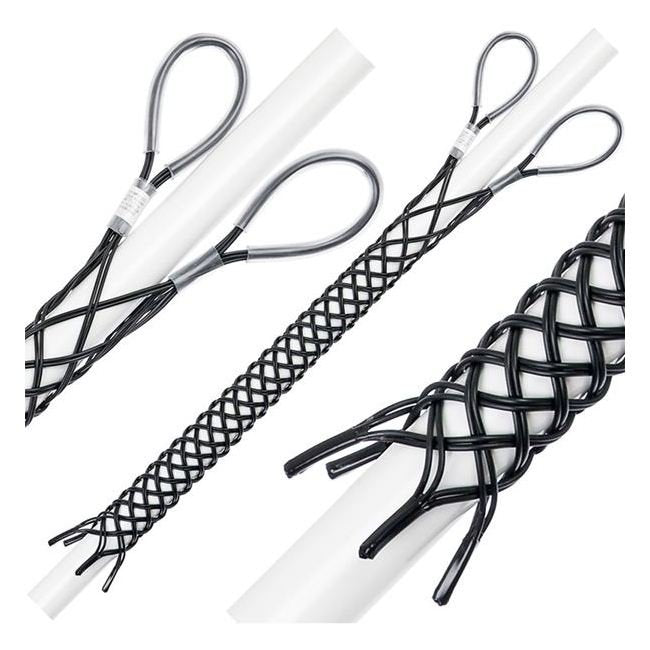

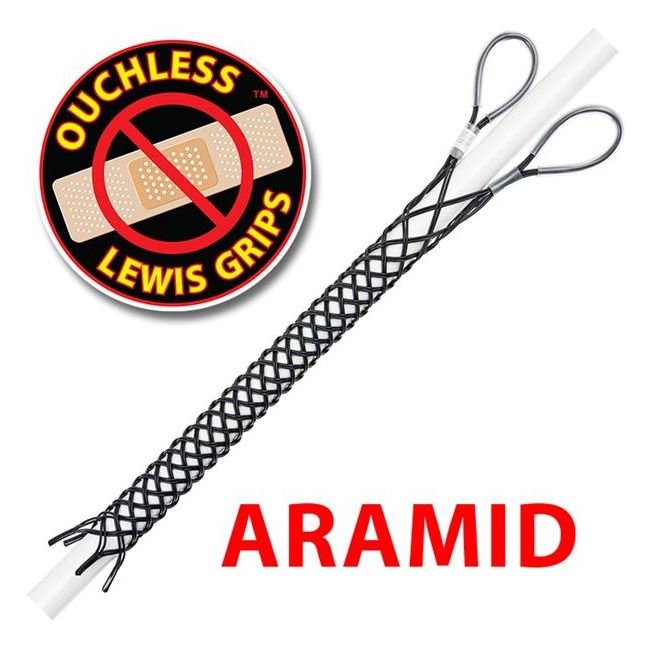

The Lewis 1-1.5 in. Double Weave Double Eye Fiber Ouchless Grip™ is a reliable solution for wire pulling applications, featuring tough plastic-coated Aramid fiber strands that prevent wire frays and cuts. With a work load of 3300 lb and ultimate tensile strength of 6600 lb, these grips are designed for overhead or underground operations, ideal for pulling electric or fiber optic cables. Non-conductive and significantly lighter than metal grips, the Ouchless Lewis Grips™ offer enhanced safety and ease of use. They are compatible with various grip configurations and excel in corrosive environments, with a Stainless Steel option available for specific conditions.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 to 1 1/2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
DLE Models
Specifications Type
Double Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
6600 lb
Specifications Weave
Double
Specifications Work Load Wl
3300 lb
