Lewis 1-1.5 in. LSG Series Wire Rope & Cable Snake Grip
Lewis 1-1.5 in. LSG Series Wire Rope & Cable Snake Grip
SKU:PUL-20e7e3
Versatile Lewis 1-1.5 in. LSG Wire Rope & Cable Snake Grip for secure cable handling and pulling applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 1-1.5 in. LSG Series Wire Rope & Cable Snake Grip
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 1-1.5 in. LSG Series Wire Rope & Cable Snake Grip
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

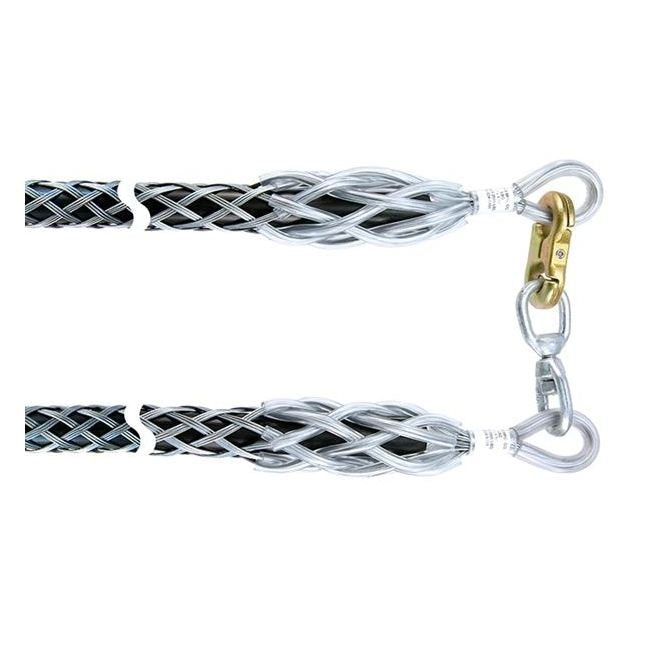

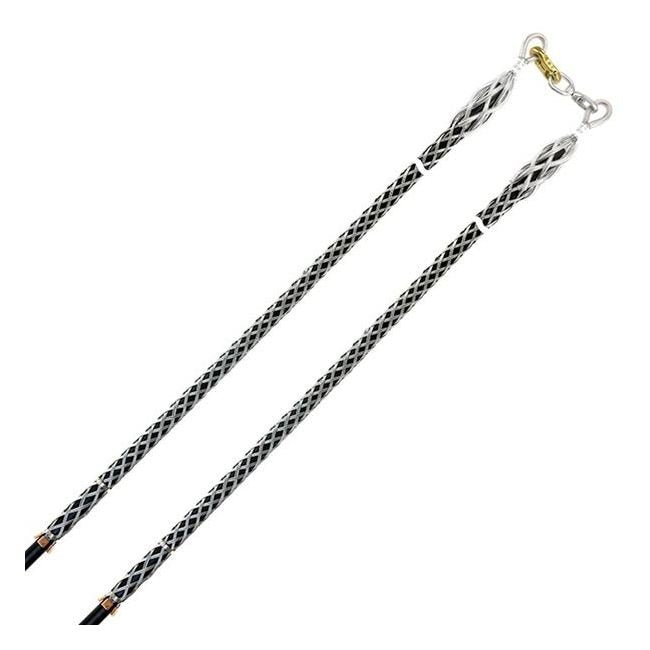

The Lewis Snake Grip is a versatile pulling grip designed to expand or contract to securely hold different cable and wire rope sizes. With a work load of 3500 lb and ultimate tensile strength of 7000 lb, this LSG Snake Grip ensures reliable performance. The swivel and swing link smoothly navigate through blocks, preventing line twisting. Facilitating easy cable installation using existing lines, the grip must be properly banded and taped for safety. Complying with stringent safety guidelines, this standard profile grip is a trusted choice for secure and efficient pulling applications.
Product Specifications
Additional Information

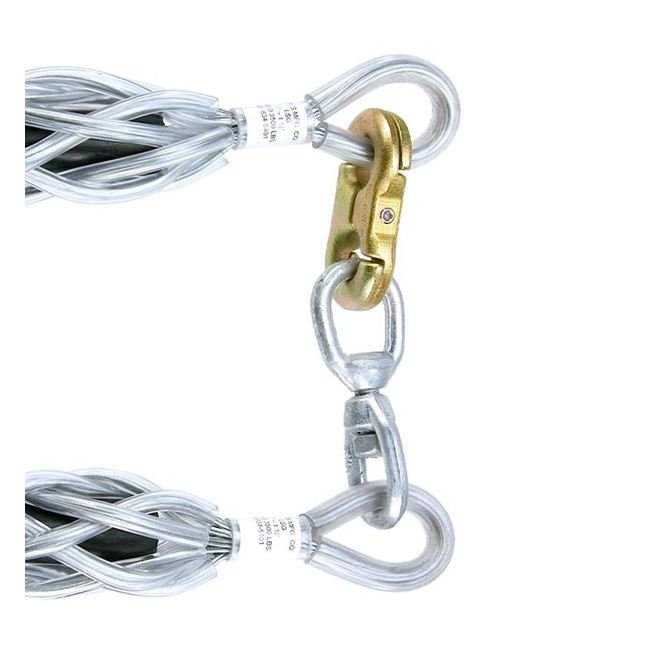

The swivel and swing link go smoothly through blocks and prevent line twisting. Install new cable by using old existing cable as pulling line. Always seize the ends of the Grip by banding and taping. Make sure to BAND AND TAPE the ends of the Grips.
Dimensions Range
1 to 1 1/2 in
Specifications Brand
Lewis
Specifications Style
LSG Snake Grip
Specifications Type
Wire Rope & Cable Snake Grip
Specifications Ultimate Tensile Strength Uts
7000 lb
Specifications Work Load Wl
3500 lb
Warning
READ THIS GUIDELINE BEFORE USING LSG SNAKE GRIPSFOLLOW GRIPS BANDING INSTRUCTIONS CONTAINED IN THIS DOCUMENTSafety is always No. 1. Make sure no one is under the line as it is being pulled through the blocks and crown.DO NOT stand below or near the drilling line under tension, severe injury or death could occur. KEEP BACKBoth ends of the snake grip must be properly BANDED AND TAPED according to banding instructions located in this documentFailure to follow the safety and use instructions properly could lead to injury or even death.
