Lewis 1-1.5 in. Overhead Pulling Grip

Lewis 1-1.5 in. Overhead Pulling Grip

PUL-747c80

Durable Lewis 1-1.5 in. Overhead Pulling Grip for efficient wire pulling. Hardened steel rotating eye. Ideal for overhead applications.

$34.99
$34.99
Sale

Initiate Order

Lewis 1-1.5 in. Overhead Pulling Grip

Lewis 1-1.5 in. Overhead Pulling Grip

$34.99

Quantity: 1

Claim Your Seller Account

Lewis 1-1.5 in. Overhead Pulling Grip

Lewis 1-1.5 in. Overhead Pulling Grip

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

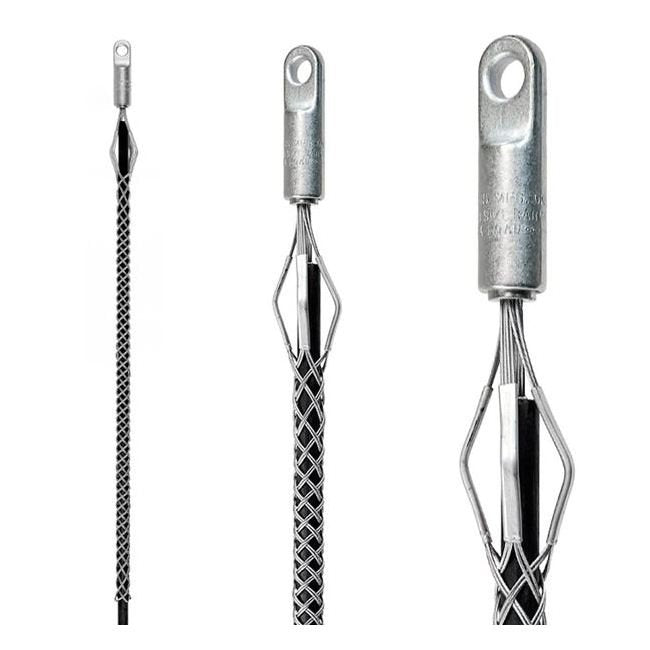

The Lewis Overhead Pulling Grip in the 1 to 1 1/2-inch range is a rugged and reliable solution for wire pulling applications. With a work load of 9600 lb and ultimate tensile strength of 19200 lb, this grip features a hardened steel rotating eye for seamless threading through blocks and sheaves without binding. The swivel eye design allows for torque relief under tension, making it ideal for overhead wire pulling tasks in various settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information

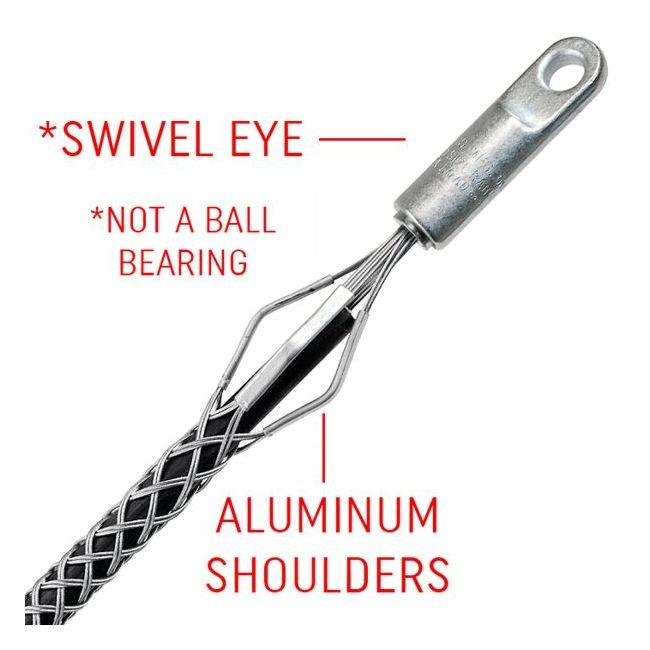

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.
Dimensions A
4 5/8 in
Dimensions B
1 3/8 in
Dimensions C
1/2 in
Dimensions D
43/64 in
Dimensions E
7/8 in
Dimensions Mesh
42 in
Dimensions Range
1 to 1 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style

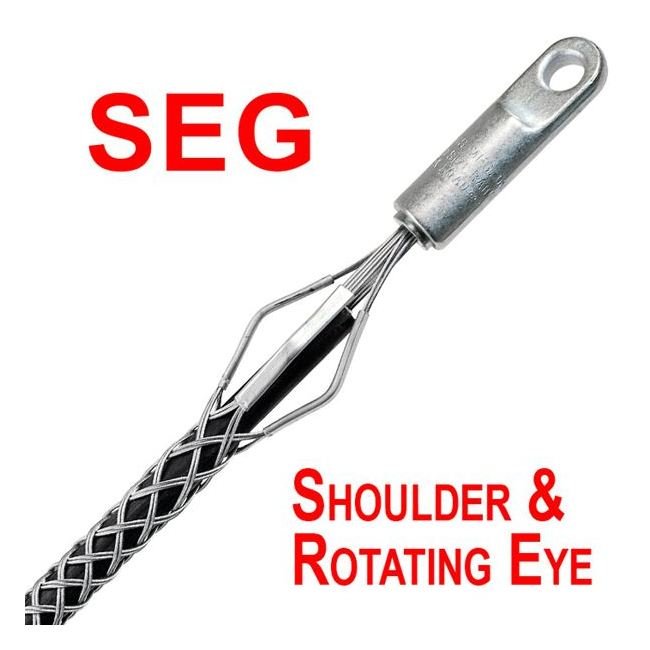

SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
19200 lb
Specifications Work Load Wl
9600 lb
