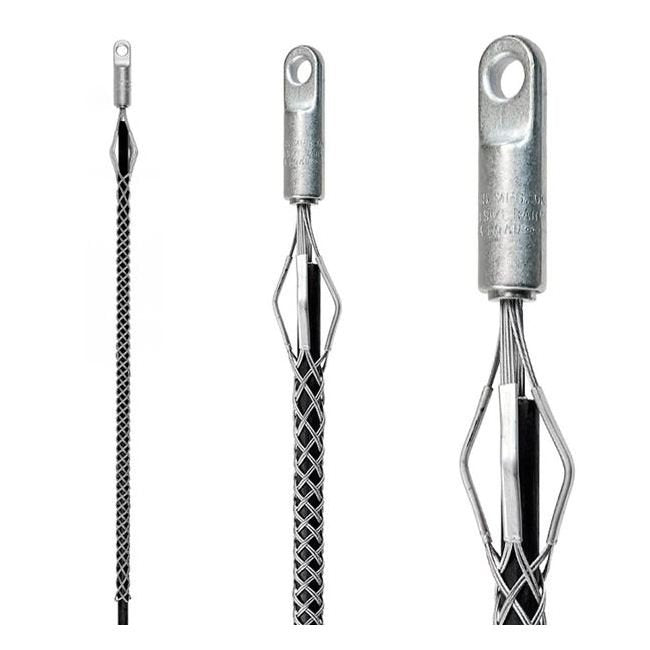

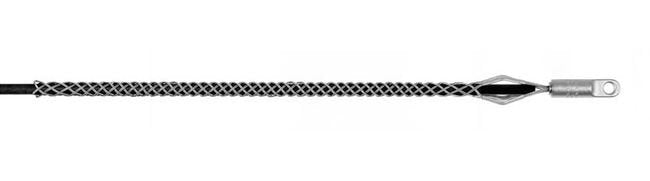

Lewis 1/2 to 1 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
Lewis 1/2 to 1 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
SKU:PUL-1e08f5
Enhance wire pulling efficiency with Lewis Overhead Pulling Grip. Durable hardened steel rotating eye ensures reliability and performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Lewis 1/2 to 1 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$45.99
Quantity: 1
Claim Your Seller Account
Lewis 1/2 to 1 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis Overhead Pulling Grip is a robust solution designed for wire pulling applications in demanding environments. Featuring a hardened steel rotating eye, this grip offers exceptional durability and efficiency. With a work load of 3500 lb and an ultimate tensile strength of 7000 lb, it ensures reliable performance. The SEG Models with swivel eye grips allow seamless threading through blocks and sheaves without binding. Not a ball bearing swivel, this grip efficiently relieves pulling torque when tension is released. Upgrade to this pulling grip for superior strength and functionality.
Product Specifications
Additional Information

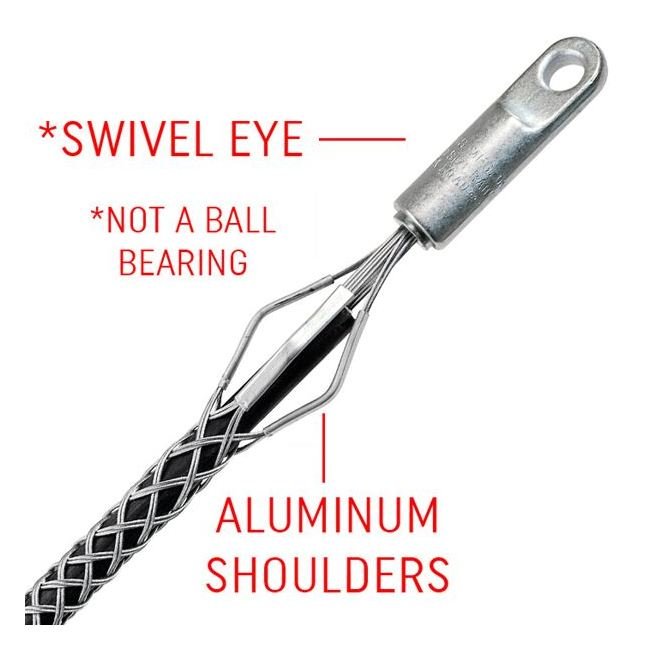

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

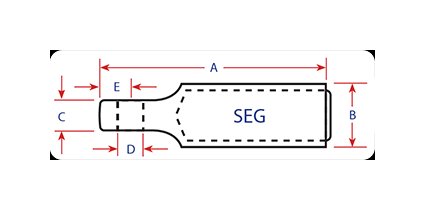

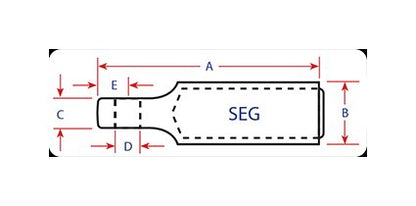

Dimensions A
3 1/2 in
Dimensions B
1 in
Dimensions C
1/2 in
Dimensions D
17/32 in
Dimensions E
5/8 in
Dimensions Mesh
36 in
Dimensions Range
1/2 to 1 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style

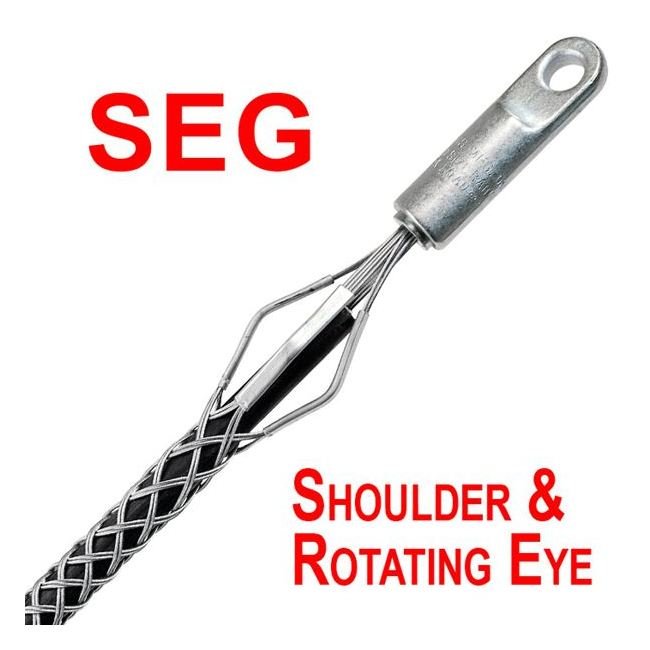

SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
7000 lb
Specifications Work Load Wl
3500 lb
