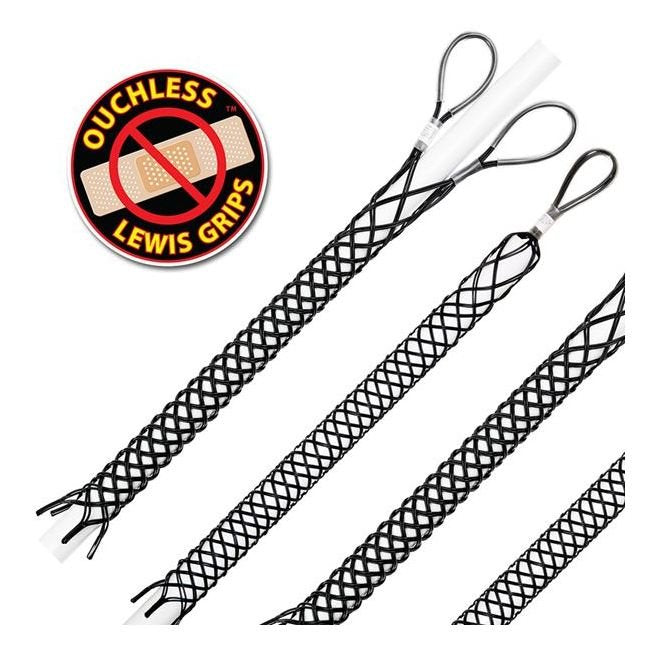

Lewis 1/4-3/4 in. Single Weave Aramid Fiber Ouchless Grip™
Lewis 1/4-3/4 in. Single Weave Aramid Fiber Ouchless Grip™
SKU:PUL-a0dd45
Safety-focused Lewis Ouchless Grip™ with Aramid fiber, non-conductive & durable. Ideal for government use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis 1/4-3/4 in. Single Weave Aramid Fiber Ouchless Grip™
$29.99
Quantity: 1
Claim Your Seller Account
Lewis 1/4-3/4 in. Single Weave Aramid Fiber Ouchless Grip™
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis Ouchless Grip™ offers unparalleled safety with its plastic-coated Aramid fiber construction, ensuring no wire frays or cuts. Designed for overhead or underground cable pulling, this grip is lightweight, non-conductive, and durable. With a work load of 830 lb and an ultimate tensile strength of 1660 lb, it meets stringent industry standards and is ideal for government and institutional applications.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
4 in
Dimensions Mesh
24 in
Dimensions Range
1/4 to 3/4 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
DLE Models
Specifications Type
Double Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
1660 lb
Specifications Weave
Single
Specifications Work Load Wl
830 lb
