Lewis 1/4 to 1/2 in. Overhead Pulling Grip - SEG Series
Lewis 1/4 to 1/2 in. Overhead Pulling Grip - SEG Series
SKU:PUL-372e09
Enhanced Lewis 1/4-1/2 in. Overhead Pulling Grip: Durable, high strength, non-ball bearing swivel design for reliable wire pulling.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 1/4 to 1/2 in. Overhead Pulling Grip - SEG Series
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 1/4 to 1/2 in. Overhead Pulling Grip - SEG Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

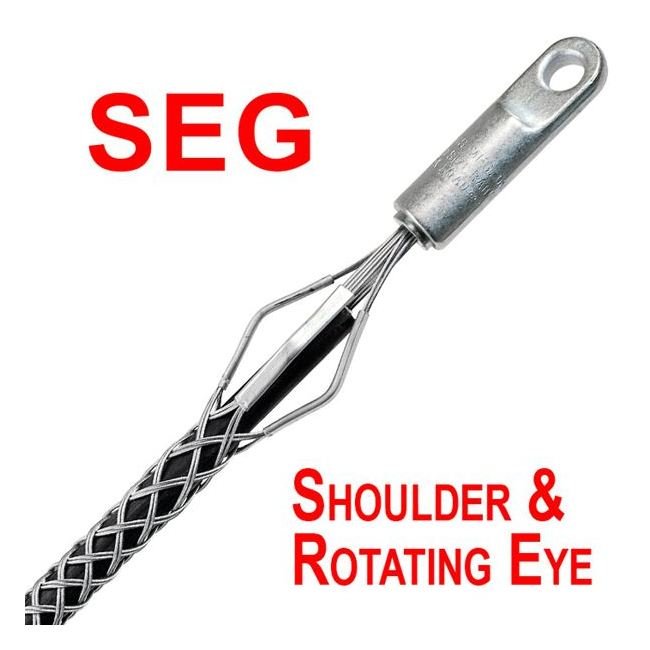

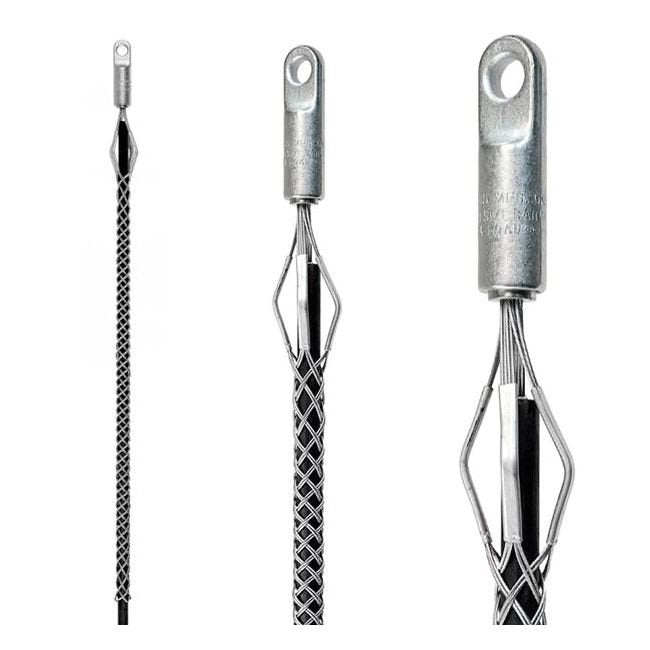

The Lewis 1/4 to 1/2 in. Overhead Pulling Grip from the SEG Series is a robust solution for wire pulling tasks. Crafted with hardened steel rotating eyes, this grip ensures durability and seamless threading through blocks and sheaves without binding. With a work load of 1200 lb and an ultimate tensile strength of 2400 lb, it offers reliable performance in demanding conditions. The non-ball bearing swivel eye design allows for torque relief during tension release, making it ideal for overhead pulling applications where a continual swivel movement is not imperative. Upgrade your wire pulling operations with this Lewis pulling grip that prioritizes strength, functionality, and ease of use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

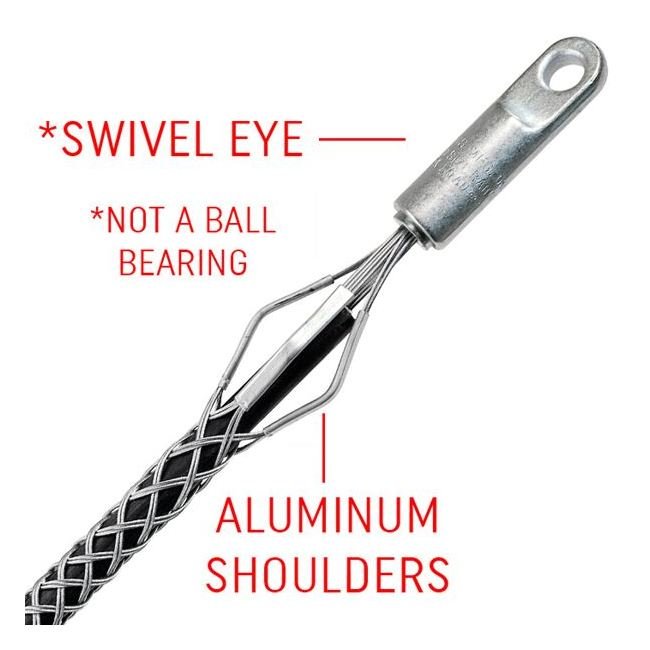

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.
Dimensions A
3 1/4 in
Dimensions B
7/8 in
Dimensions C
3/8 in
Dimensions D
15/32 in
Dimensions E
17/32 in
Dimensions Mesh
24 in
Dimensions Range
1/4 to 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
2400 lb
Specifications Work Load Wl
1200 lb
