Lewis 1 to 2 in. Range LSG-S Wire Rope & Cable Snake Grip

Name: Lewis 1 to 2 in. Range LSG-S Wire Rope & Cable Snake Grip
Brand: Colonial Teltek
SKU: PUL-cb5c0d
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-cb5c0d

Lewis 1-2 in. LSG-S Wire Rope & Cable Snake Grip: Non-Rotating, Low Profile, High Strength. Follow safety guidelines.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

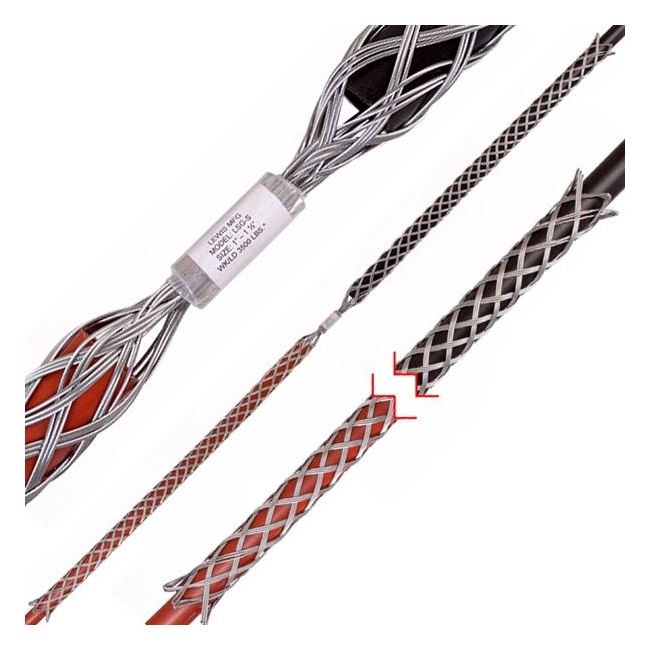

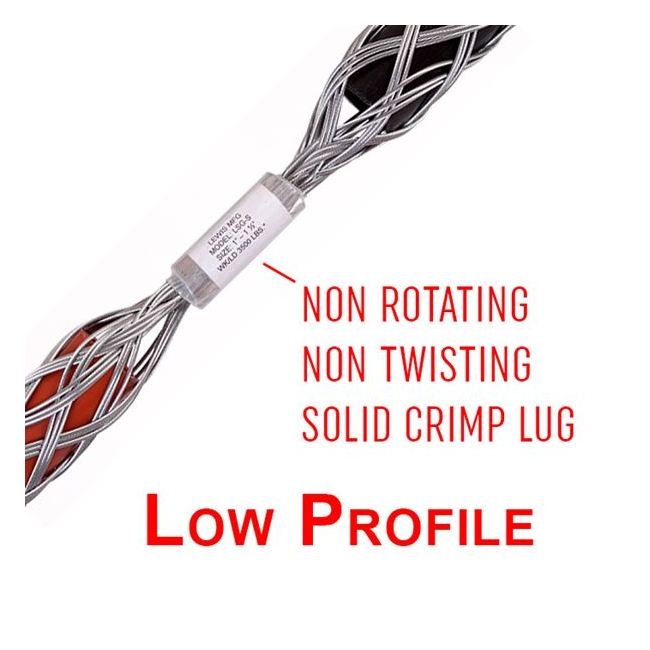

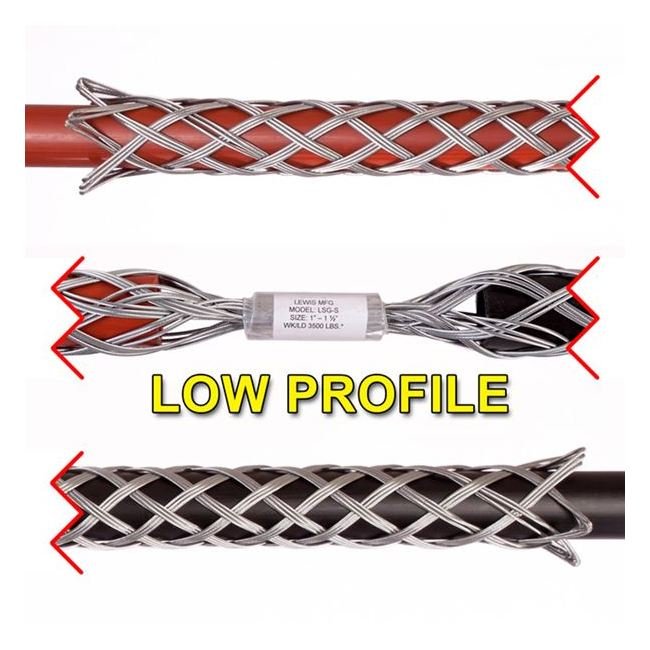

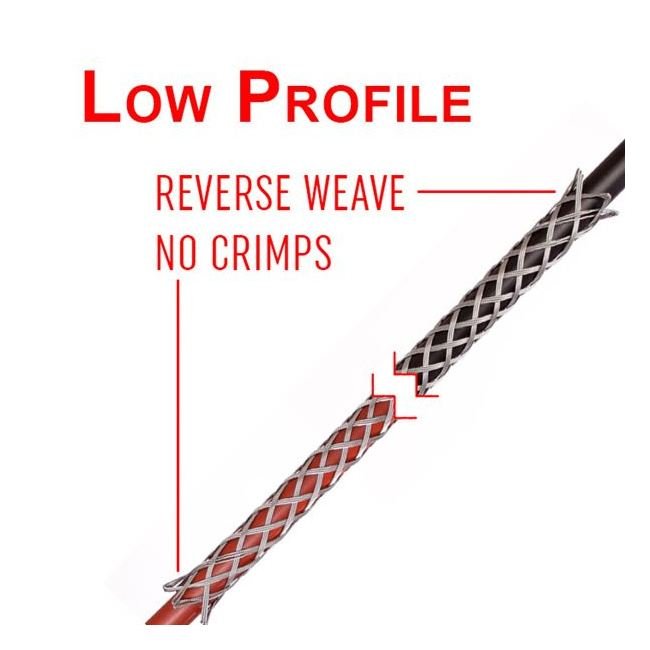

The Lewis 1 to 2 in. Range LSG-S Wire Rope and Cable Snake Grip features a unique Reverse Weave design with a Solid Non-Rotating crimp lug, eliminating copper tabs and making the grip non-removable on both sides. This design provides the Lowest Profile, ideal for tight spaces, while the Non-Rotating crimp lug prevents twisting. With a Work Load of 3500 lb and Ultimate Tensile Strength of 7000 lb, this grip ensures secure and reliable wire pulling. Safety guidelines must be strictly followed, including proper banding and taping of grip ends.

Product Specifications

Dimensions Range

1 to 2 in

Note

The grips on the Special Size LSG-S models are not the same on each side.

Specifications Brand

Lewis

Specifications Style

LSG-S Snake Grip

Specifications Type

Wire Rope & Cable Snake Grip

Specifications Ultimate Tensile Strength Uts

7000 lb

Specifications Work Load Wl

3500 lb

Warning

READ THIS GUIDELINE BEFORE USING LSG SNAKE GRIPSFOLLOW GRIPS BANDING INSTRUCTIONS CONTAINED IN THIS DOCUMENTSafety is always No. 1. Make sure no one is under the line as it is being pulled through the blocks and crown.DO NOT stand below or near the drilling line under tension, severe injury or death could occur. KEEP BACKBoth ends of the snake grip must be properly BANDED AND TAPED according to banding instructions located in this documentFailure to follow the safety and use instructions properly could lead to injury or even death.
