Lewis 18 in. X Series Mesh Grip with 3/4-1-1/4 in. Range and 3000 lb UTS
Lewis 18 in. X Series Mesh Grip with 3/4-1-1/4 in. Range and 3000 lb UTS
SKU:PUL-d082f4
Durable Lewis X Series Mesh Grip for efficient cable pulling, with 3000 lb UTS & unique design for tight clearances.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Lewis 18 in. X Series Mesh Grip with 3/4-1-1/4 in. Range and 3000 lb UTS
$34.99
Quantity: 1
Claim Your Seller Account
Lewis 18 in. X Series Mesh Grip with 3/4-1-1/4 in. Range and 3000 lb UTS
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

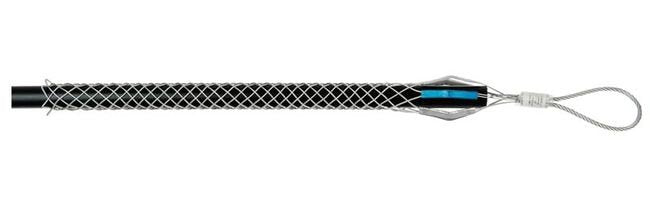

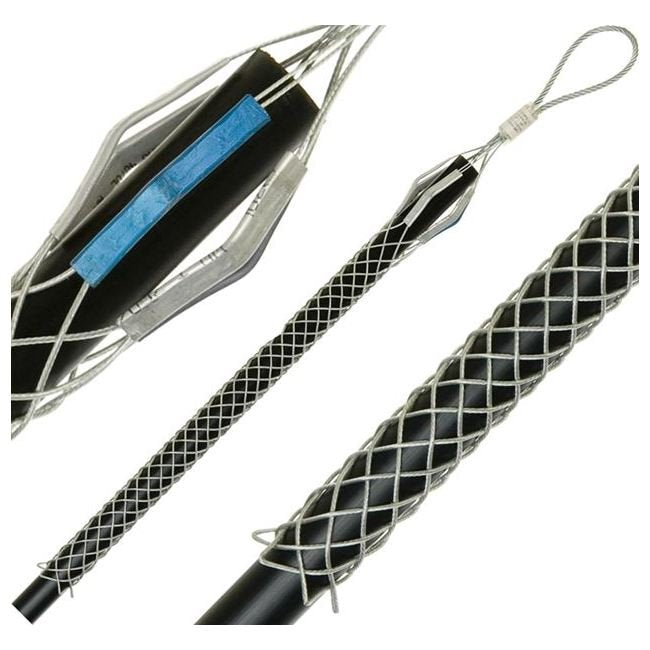

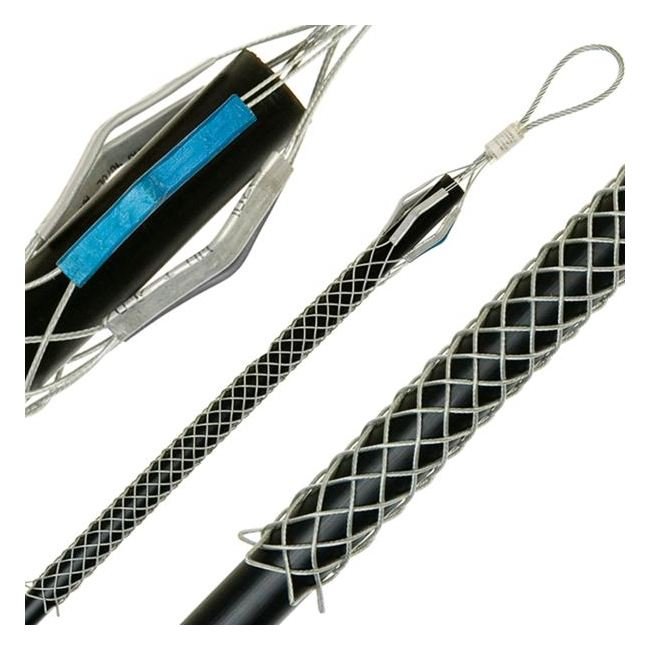

The Lewis X Series Pulling Grip is a premium choice for cable pulling applications, renowned for its durability and performance. Color-coded for easy identification, this plastic-coated grip extends longevity, enhances gripping efficiency, and reduces wire damage risks. Designed with a ball bearing swivel user in mind, it features a single wire eye for swift swivel attachment, preventing any binding in the swivel throat during pulls. The unique backwards weave design increases the pulling surface and facilitates easy passage through tight spaces. Incorporating metal sleeves to withstand harsh pulling environments, this grip, with a 1000 lb work load and 3000 lb ultimate tensile strength, is a reliable asset for professionals needing precision and strength in cable pulling tasks.
Product Specifications
Dimensions Eye
5 in
Dimensions Mesh
18 in
Dimensions Range
3/4 to 1 1/4 in
Features
The X-Series features metal sleeves near the top of the grip to eliminate wear when pulling through clay conduit, gravel or other abrasive pulling environments. This series is constructed with galvanized wire but can be ordered with stainless steel at additional cost.Plastic-Coated with Quick Color ID
Specifications Brand
Lewis
Specifications Color
Light Blue
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated
Specifications Patent No
3,122,806
Specifications Style
Standard X Grips
Specifications Type
Cable Pulling Mesh Grip
Specifications Ultimate Tensile Strength Uts
3000 lb
Specifications Weave
Backwards
Specifications Work Load Wl
1000 lb
