Lewis 2 1/2 to 3 in. Overhead Pulling Grip - SEG Series
Lewis 2 1/2 to 3 in. Overhead Pulling Grip - SEG Series
SKU:PUL-2c60f9
Durable SEG Series Overhead Pulling Grip for efficient wire pulling tasks with hardened steel rotating eyes.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 2 1/2 to 3 in. Overhead Pulling Grip - SEG Series
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 2 1/2 to 3 in. Overhead Pulling Grip - SEG Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

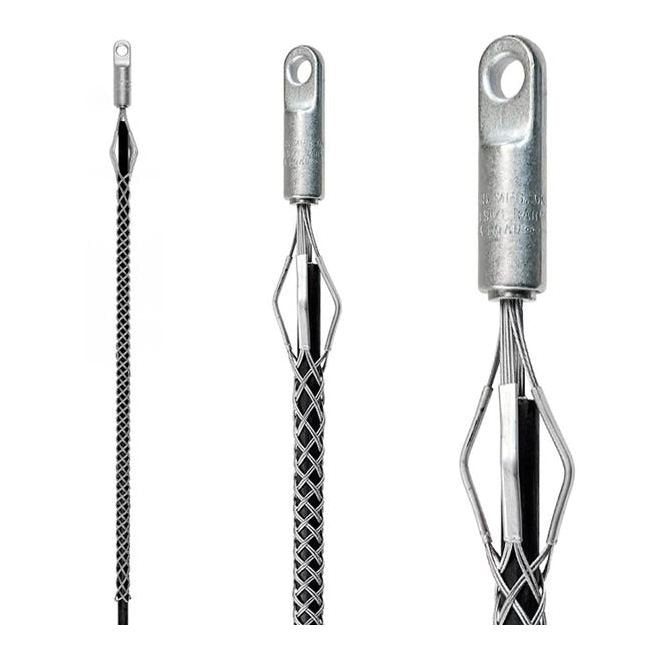

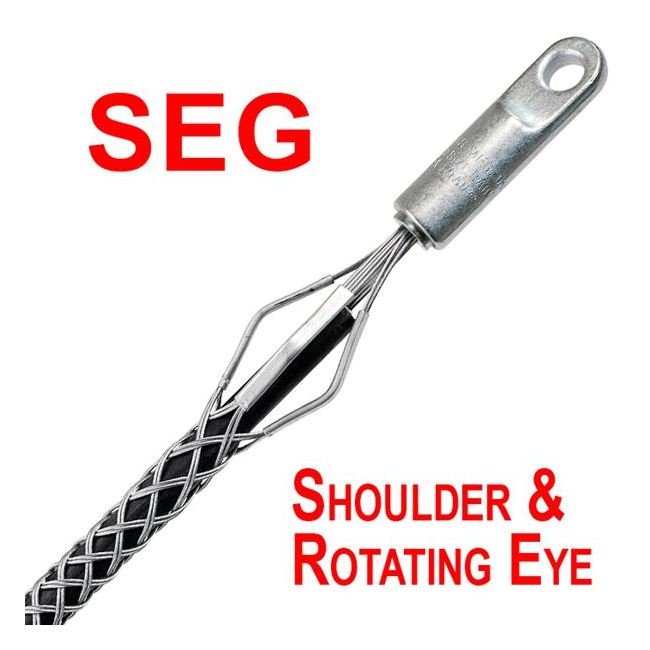

The Lewis SEG Series Overhead Pulling Grip is a reliable solution for wire pulling applications, featuring hardened steel rotating eyes that ensure durability and smooth threading through blocks and sheaves without binding. With a work load of 16,700 lb and ultimate tensile strength of 33,400 lb, these grips provide secure and efficient pulling operations. The swivel eye grips, not ball bearing swivels, are designed to relieve pulling torque upon tension release. For continual swivel movement needs, consider compatible ball bearing swivel options like the HD and W series for overhead applications or the HD-S series for high tension environments requiring sealed swivels.
Product Specifications
Additional Information

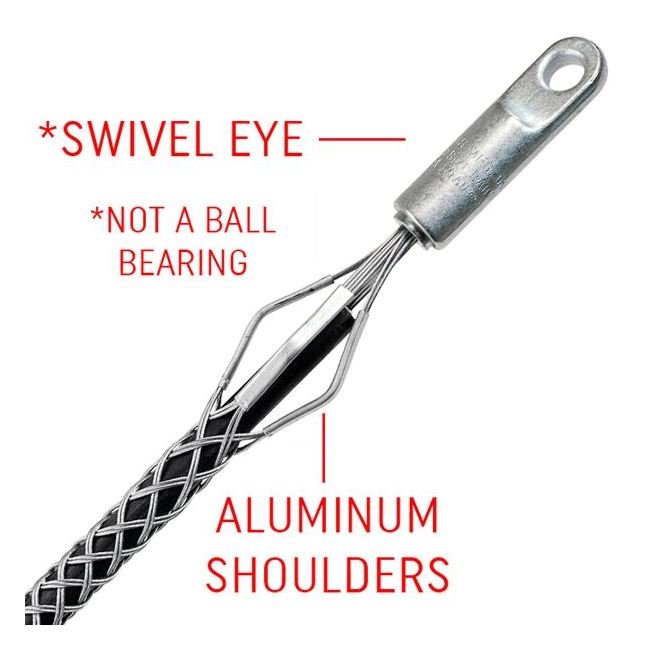

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

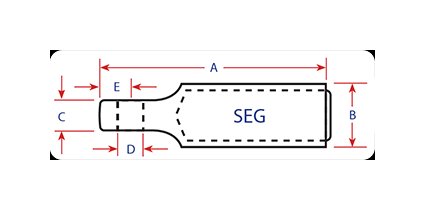

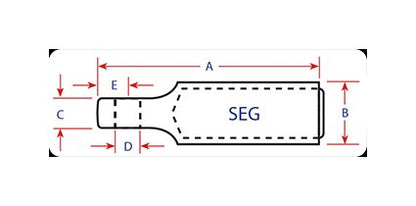

Dimensions A
8 in
Dimensions B
2 in
Dimensions C
11/16 in
Dimensions D
1 1/16 in
Dimensions E
1 1/4 in
Dimensions Mesh
60 in
Dimensions Range
2 1/2 to 3 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
33400 lb
Specifications Work Load Wl
16700 lb
