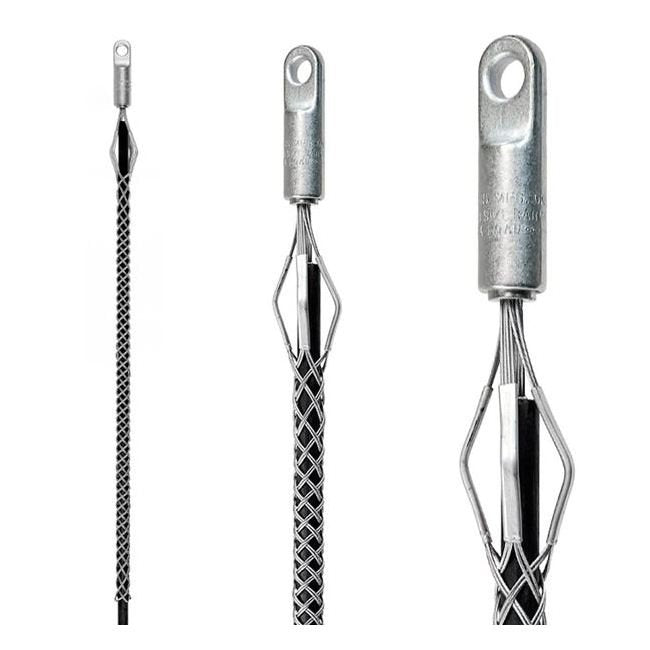

Lewis 2 1/2 to 3 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
Lewis 2 1/2 to 3 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
SKU:PUL-2c60f9
Rugged Lewis Overhead Pulling Grip with Hardened Steel Rotating Eye for efficient overhead pulling tasks.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 2 1/2 to 3 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 2 1/2 to 3 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis Overhead Pulling Grip is a robust solution for overhead pulling tasks, featuring a hardened steel rotating eye that ensures durability and efficiency. With a work load of 16700 lb and ultimate tensile strength of 33400 lb, this grip is designed for heavy-duty applications. The rotating eye, while not a ball bearing swivel, smoothly threads through blocks and sheaves without binding, offering seamless operation. Ideal for overhead pulling in challenging environments, this grip meets stringent industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

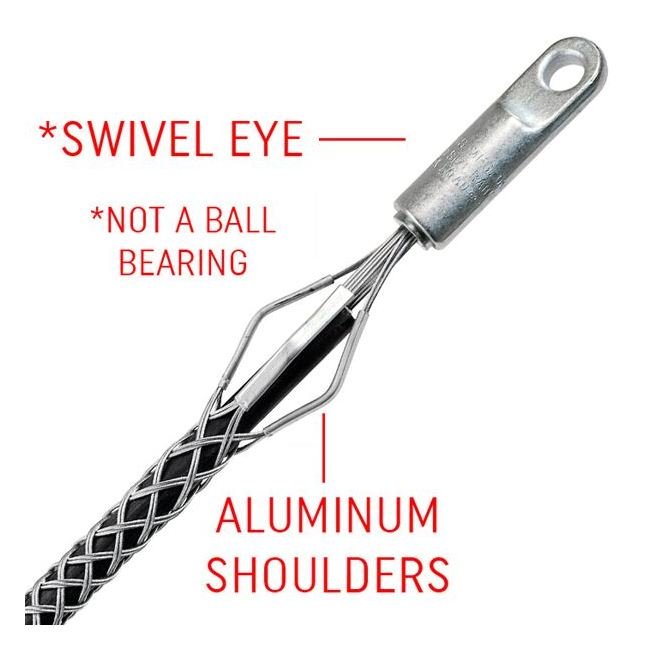

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.
Dimensions A
8 in
Dimensions B
2 in
Dimensions C
11/16 in
Dimensions D
1 1/16 in
Dimensions E
1 1/4 in
Dimensions Mesh
60 in
Dimensions Range
2 1/2 to 3 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style

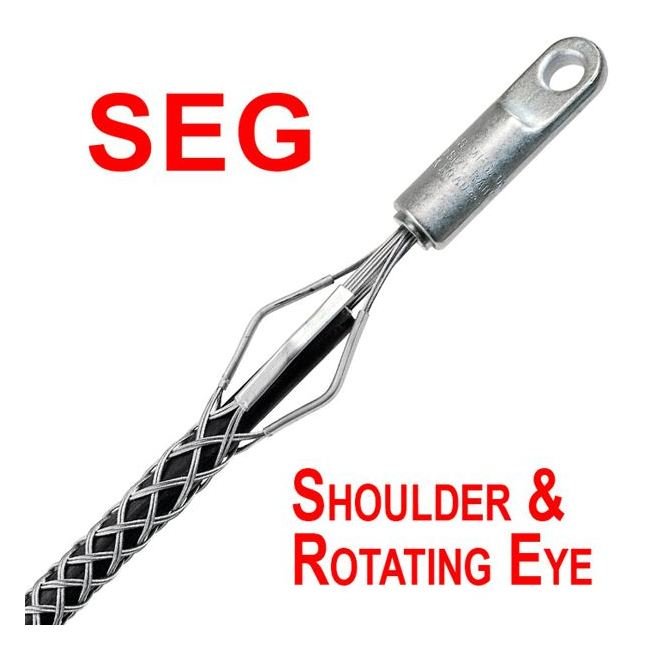

SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
33400 lb
Specifications Work Load Wl
16700 lb
