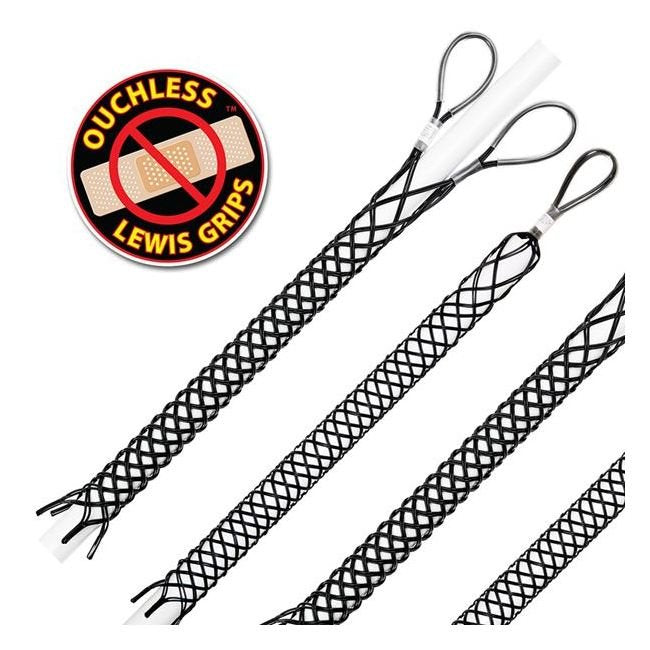

Lewis 2-2 1/2" Double Weave Single Eye Fiber Ouchless Grip™
Lewis 2-2 1/2" Double Weave Single Eye Fiber Ouchless Grip™
SKU:PUL-18b43d
Reliable Lewis Ouchless Grip™: No wire frays/cuts, robust design for safe cable pulling operations.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Lewis 2-2 1/2" Double Weave Single Eye Fiber Ouchless Grip™
$35.99
Quantity: 1
Claim Your Seller Account
Lewis 2-2 1/2" Double Weave Single Eye Fiber Ouchless Grip™
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis Ouchless Grip™ is a reliable solution for overhead or underground cable pulling operations. Made of plastic-coated Aramid fibers, this grip ensures no wire frays or cuts, safeguarding against injuries. With a work load of 5000 lb and ultimate tensile strength of 10000 lb, the grip is durable and safer than metallic options. It's non-conductive, lightweight, and easy to load and remove, making it a versatile choice for diverse environments. Ideal for both consumer and institutional buyers looking for safety, efficiency, and reliability.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
2 to 2 1/2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
10000 lb
Specifications Weave
Double
Specifications Work Load Wl
5000 lb
