Lewis 2-2.5 in. Overhead Pulling Grip
Lewis 2-2.5 in. Overhead Pulling Grip
SKU:PUL-de064c
Durable Lewis Overhead Pulling Grip for efficient and safe operations. Ideal for high-tension environments. Not a ball bearing swivel.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Lewis 2-2.5 in. Overhead Pulling Grip
$79.99
Quantity: 1
Claim Your Seller Account
Lewis 2-2.5 in. Overhead Pulling Grip
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

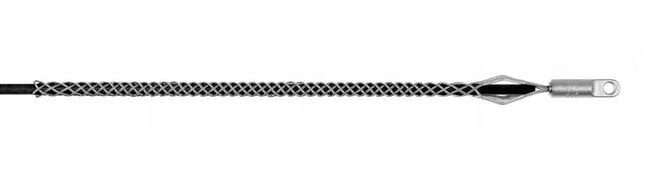

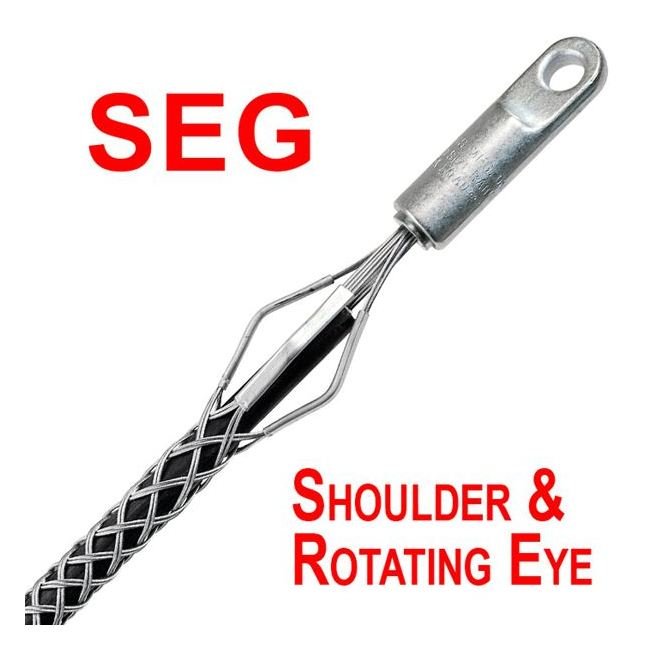

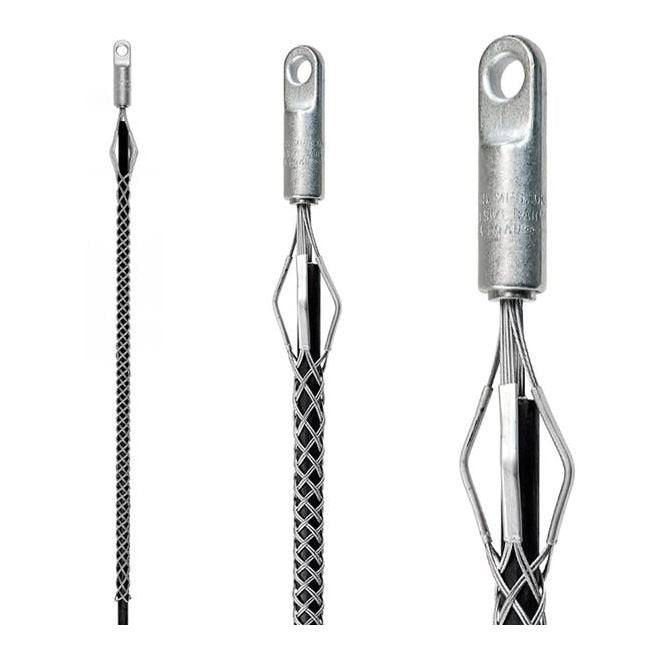

The Lewis 2-2.5 in. Overhead Pulling Grip from the SEG Series is a durable solution designed for efficient overhead pulling operations. Featuring hardened steel rotating eyes, this grip ensures smooth threading through blocks and sheaves without binding. With a work load of 16300 lb and an ultimate tensile strength of 32600 lb, it provides reliability and safety during heavy-duty pulling tasks. Not a ball bearing swivel, this grip is ideal for releasing pulling torque and is recommended for specific applications requiring high tension and harsh environmental conditions.
Product Specifications
Additional Information

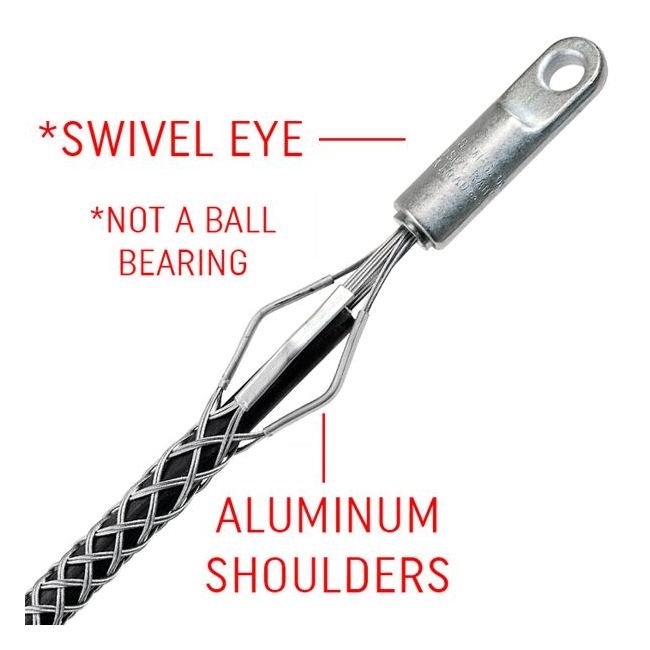

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

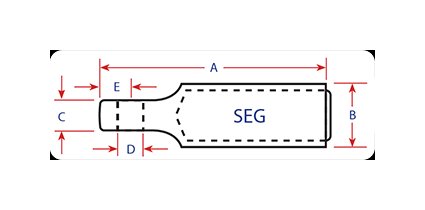

Dimensions A
7 1/2 in
Dimensions B
1 7/8 in
Dimensions C
21/32 in
Dimensions D
63/64 in
Dimensions E
1 3/16 in
Dimensions Mesh
60 in
Dimensions Range
2 to 2 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
32600 lb
Specifications Work Load Wl
16300 lb
