Lewis 2-2.5in Overhead Pulling Grip - Hardened Steel Rotating Eye
Lewis 2-2.5in Overhead Pulling Grip - Hardened Steel Rotating Eye
SKU:PUL-de064c
Durable Lewis 2-2.5in Overhead Pulling Grip with Hardened Steel Rotating Eye for seamless wire pulling tasks.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 2-2.5in Overhead Pulling Grip - Hardened Steel Rotating Eye
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 2-2.5in Overhead Pulling Grip - Hardened Steel Rotating Eye
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

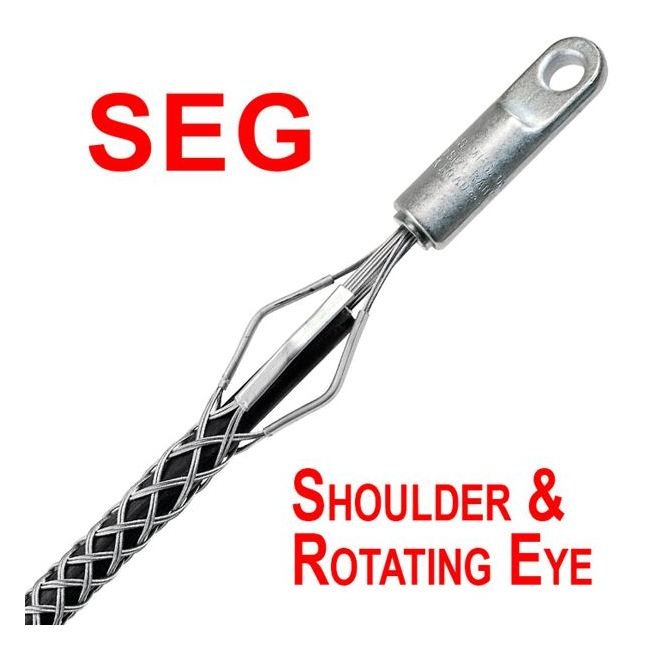

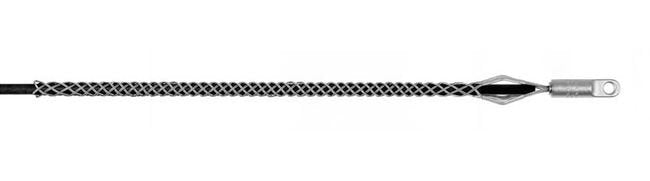

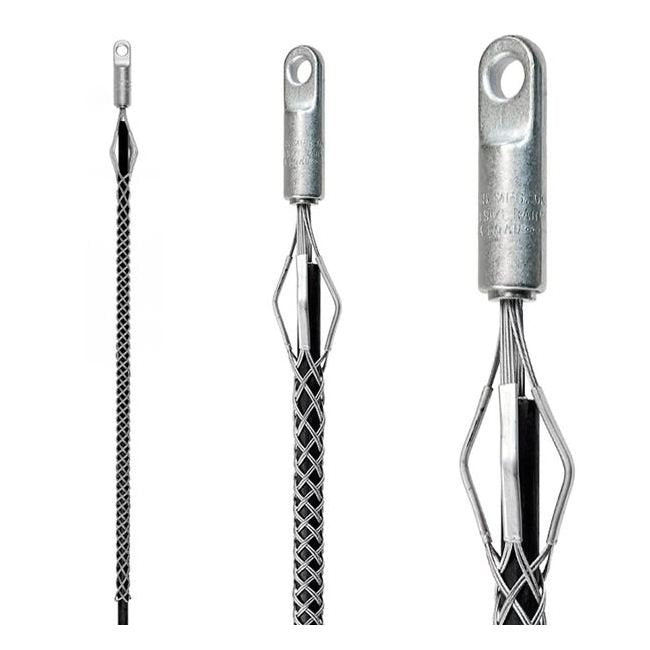

The Lewis 2 to 2 1/2 in. Range Overhead Pulling Grip is a robust solution for wire pulling tasks, designed to withstand heavy workloads with a Work Load (WL) of 16300 lb and Ultimate Tensile Strength (UTS) of 32600 lb. Featuring hardened steel rotating eyes, this grip ensures durability, streamlined threading through blocks/sheaves, and non-binding performance. The rotating swivel eye, though not a ball bearing swivel, efficiently relieves pulling torque when tension is released. For seamless swivel movement in high-tension environments, consider using ball bearing swivels like HD and W series swivels for overhead applications or HD-S series swivel for harsh environmental requirements.
Product Specifications
Additional Information

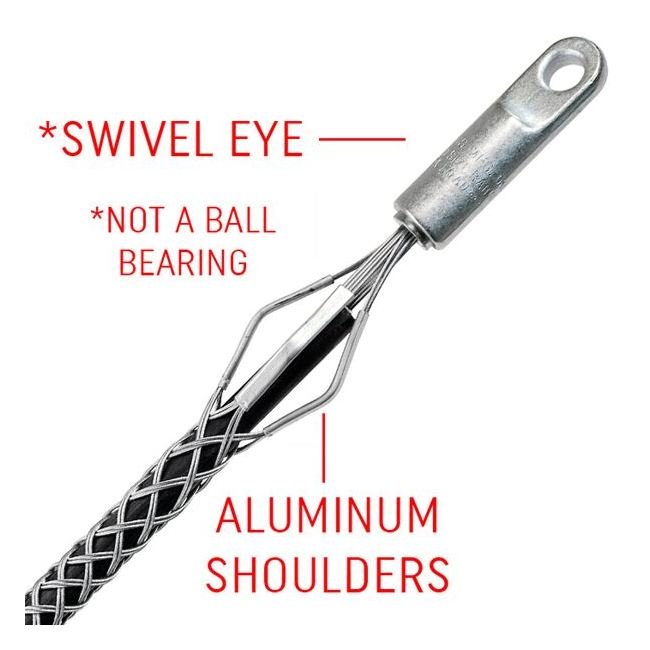

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

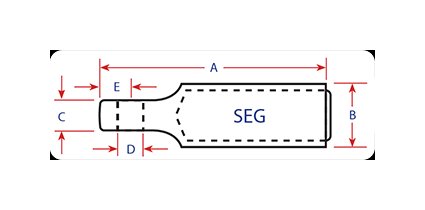

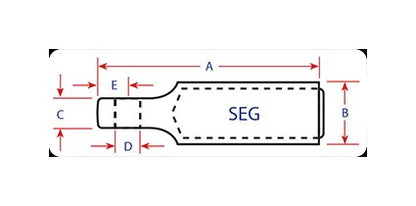

Dimensions A
7 1/2 in
Dimensions B
1 7/8 in
Dimensions C
21/32 in
Dimensions D
63/64 in
Dimensions E
1 3/16 in
Dimensions Mesh
60 in
Dimensions Range
2 to 2 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
32600 lb
Specifications Work Load Wl
16300 lb
