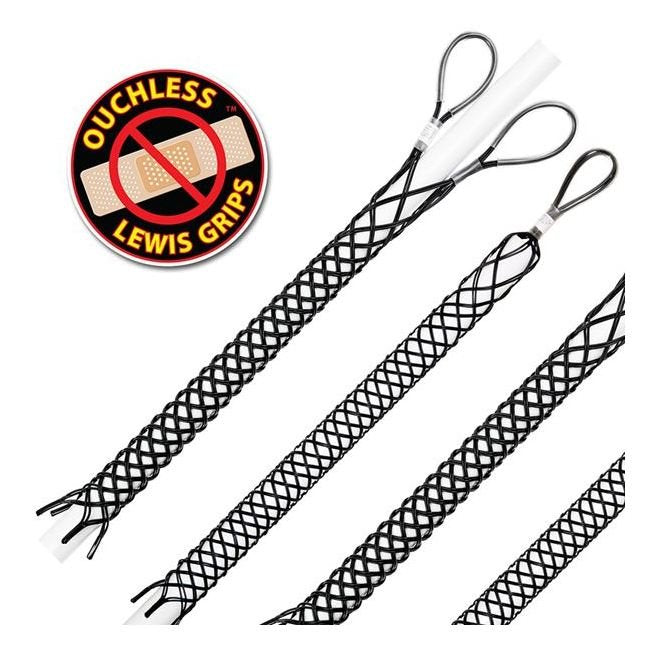

Lewis 2 in. Double Weave Aramid Fiber Ouchless Grip™
Lewis 2 in. Double Weave Aramid Fiber Ouchless Grip™
SKU:PUL-a18af6
Safety meets durability with the Lewis 2 in. Double Weave Aramid Fiber Ouchless Grip™. Non-conductive and easy to use, perfect for overhead and underground cable pulling operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 2 in. Double Weave Aramid Fiber Ouchless Grip™
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 2 in. Double Weave Aramid Fiber Ouchless Grip™
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis 2 in. Double Weave Aramid Fiber Ouchless Grip™ is a durable and safe solution for pulling electric or fiber optic cables in overhead or underground operations. With a work load of 3965 lb and ultimate tensile strength of 7930 lb, these grips are made of plastic-coated Aramid fiber strands to prevent wire frays or cuts. They are non-conductive, lighter than metal grips, and easier to load and remove, offering superior safety and convenience. Additionally, the Ouchless Lewis Grips™ do not have metallic fraying, making them ideal for environments where metallic grips are unsuitable.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 1/2 to 2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
DLE Models
Specifications Type
Double Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
7930 lb
Specifications Weave
Double
Specifications Work Load Wl
3965 lb
