Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip - SEG Series

Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip - SEG Series

PUL-4a5405

Durably built Lewis Overhead Pull Grip relieving torque for secure wire pulling tasks, 16700 lb work load.

$69.99
$69.99
Sale

Initiate Order

Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip - SEG Series

Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip - SEG Series

$69.99

Quantity: 1

Claim Your Seller Account

Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip - SEG Series

Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip - SEG Series

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

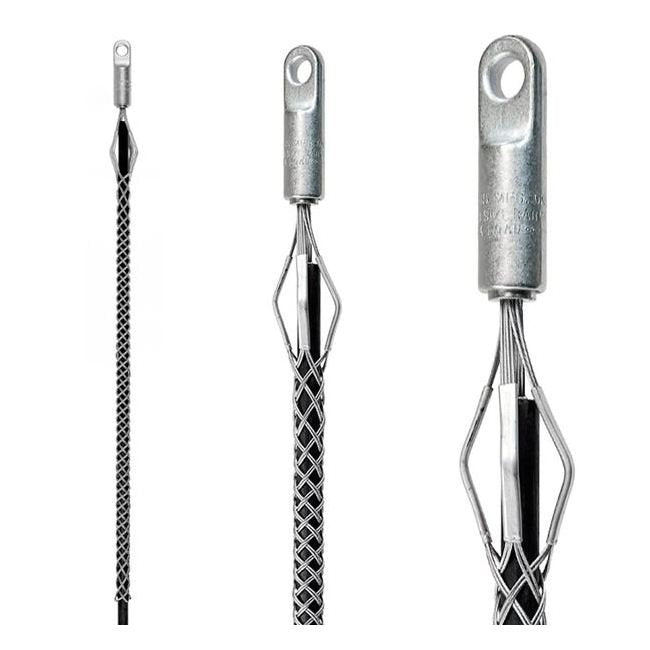

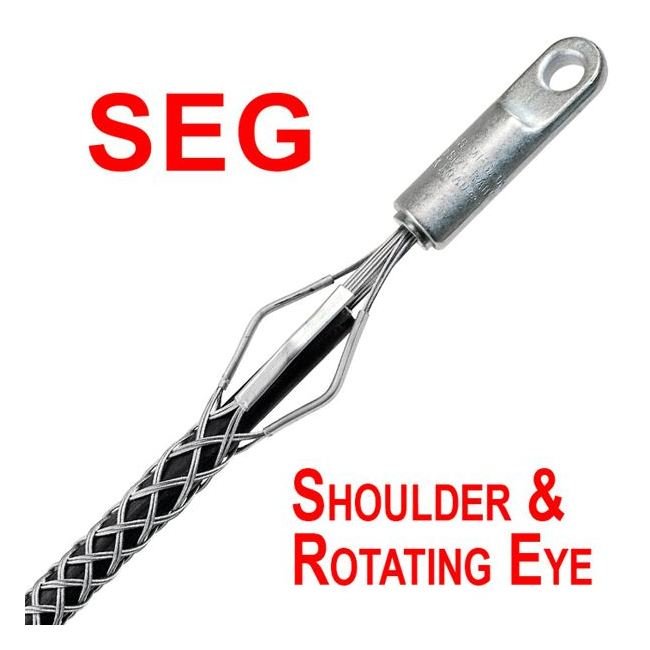

The Lewis 3 1/2 to 4 in. Range Overhead Pulling Grip from the SEG Series is a high-performance solution designed for wire pulling tasks. Featuring hardened steel rotating eyes, this grip offers exceptional durability, compact design, and seamless threading through blocks and sheaves without binding. With a work load of 16700 lb and ultimate tensile strength of 33400 lb, it ensures reliable performance under heavy tension. Not a Ball Bearing Swivel, it efficiently relieves pulling torque when tension is released. Ideal for overhead applications where a ball bearing swivel is not required.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information

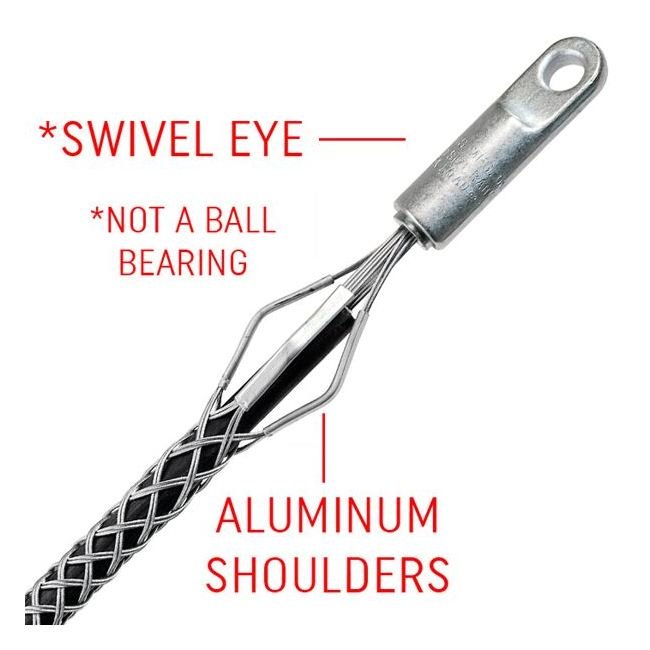

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.
Dimensions A
8 in
Dimensions B
2 in
Dimensions C
11/16 in
Dimensions D
1 1/16 in
Dimensions E
1 1/4 in
Dimensions Mesh
72 in
Dimensions Range
3 1/2 to 4 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
33400 lb
Specifications Work Load Wl
16700 lb
