Lewis 3 1/2 to 4 in. Range Segment Overhead Pulling Grip

Lewis 3 1/2 to 4 in. Range Segment Overhead Pulling Grip

PUL-4a5405

Secure overhead cable pulling grip with hardened steel rotating eye for smooth operation. Compliant with Federal/DoD standards.

$59.99
$59.99
Sale

Initiate Order

Lewis 3 1/2 to 4 in. Range Segment Overhead Pulling Grip

Lewis 3 1/2 to 4 in. Range Segment Overhead Pulling Grip

$59.99

Quantity: 1

Claim Your Seller Account

Lewis 3 1/2 to 4 in. Range Segment Overhead Pulling Grip

Lewis 3 1/2 to 4 in. Range Segment Overhead Pulling Grip

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

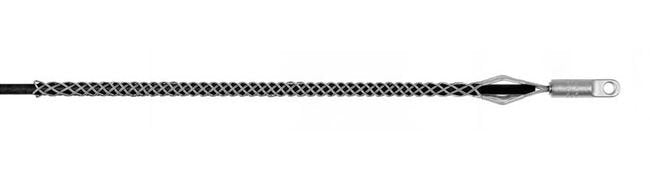

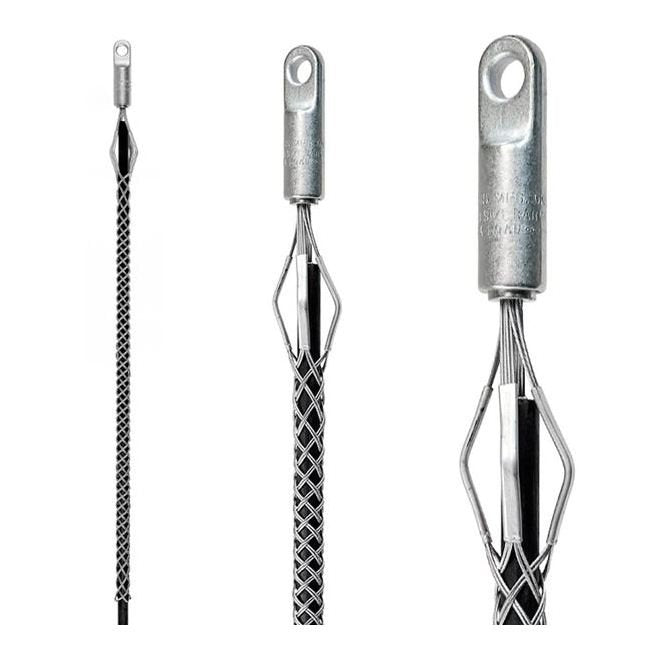

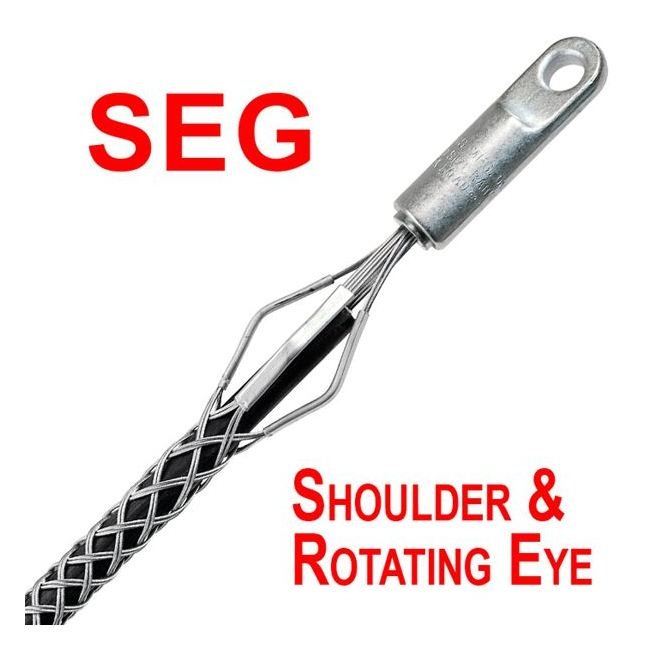

The Lewis Overhead Pulling Grip ensures secure and efficient cable pulling operations. With a work load of 16700 lb and ultimate tensile strength of 33400 lb, this grip is reliable and durable for heavy-duty applications. The hardened steel rotating eye allows smooth threading through blocks without binding, making it ideal for overhead installations. Not a ball bearing swivel, it releases pulling torque when tension is removed. Compliant with Federal/DoD procurement standards and suitable for applications requiring stringent specifications.

Product Specifications

Additional Information

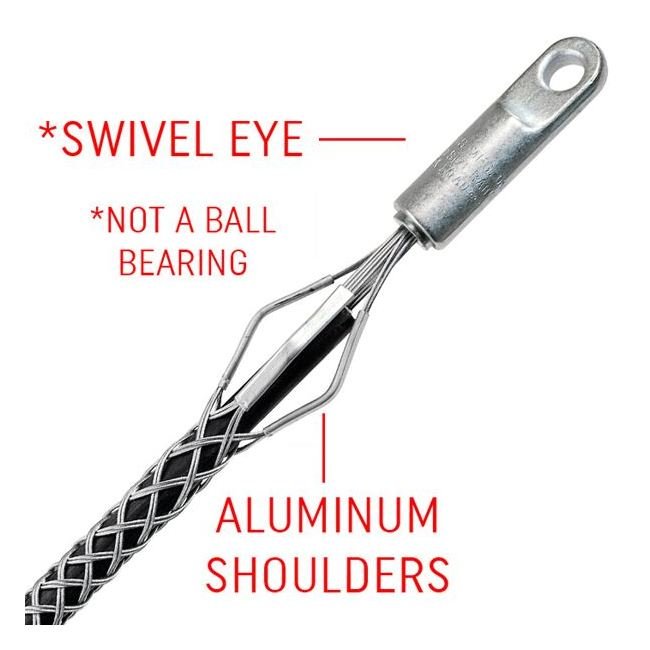

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

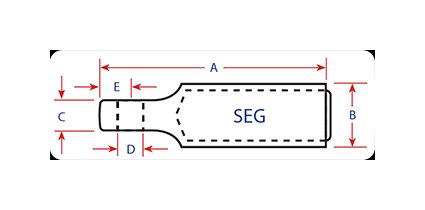

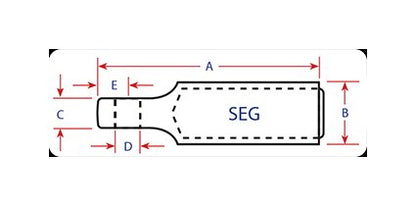

Dimensions A
8 in
Dimensions B
2 in
Dimensions C
11/16 in
Dimensions D
1 1/16 in
Dimensions E
1 1/4 in
Dimensions Mesh
72 in
Dimensions Range
3 1/2 to 4 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
33400 lb
Specifications Work Load Wl
16700 lb
