Lewis 3-3 1/2 in. SEG Series Overhead Pulling Grip

Lewis 3-3 1/2 in. SEG Series Overhead Pulling Grip

PUL-2f9472

Durable Lewis SEG Series Overhead Pulling Grip with hardened steel rotating eyes for efficient wire pulling. Non-ball bearing swivel for torque relief.

$89.99
$89.99
Sale

Initiate Order

Lewis 3-3 1/2 in. SEG Series Overhead Pulling Grip

Lewis 3-3 1/2 in. SEG Series Overhead Pulling Grip

$89.99

Quantity: 1

Claim Your Seller Account

Lewis 3-3 1/2 in. SEG Series Overhead Pulling Grip

Lewis 3-3 1/2 in. SEG Series Overhead Pulling Grip

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

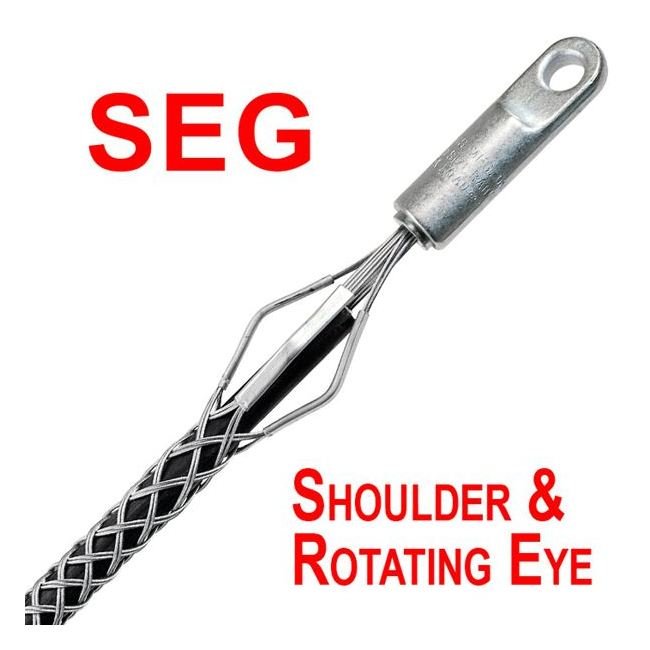

The Lewis SEG Series Overhead Pulling Grip features hardened steel rotating eyes designed for durability and smooth threading through blocks and sheaves without binding. With a work load of 16,700 lb and ultimate tensile strength of 33,400 lb, this grip offers reliability and performance. The non-ball bearing swivel eye relieves pulling torque when tension is released, ideal for various wire pulling applications. Ensure seamless operations with this compact and robust pulling grip suitable for demanding environments.

Product Specifications

Additional Information

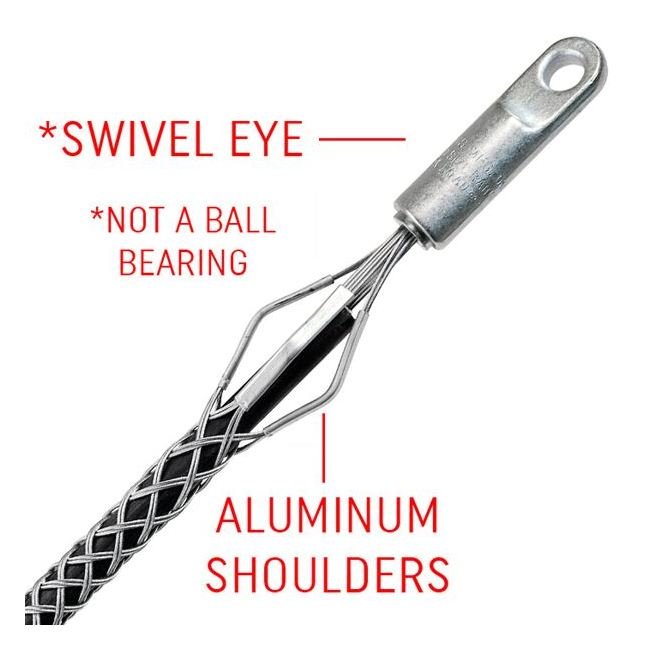

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

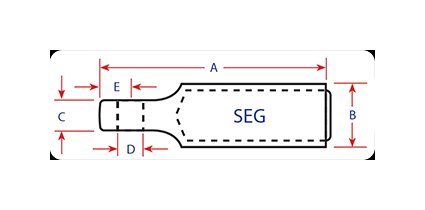

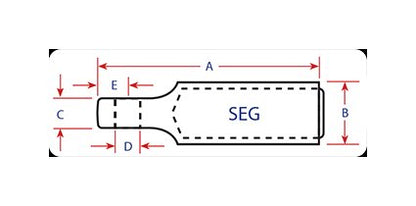

Dimensions A
8 in
Dimensions B
2 in
Dimensions C
11/16 in
Dimensions D
1 1/16 in
Dimensions E
1 1/4 in
Dimensions Mesh
66 in
Dimensions Range
3 to 3 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
33400 lb
Specifications Work Load Wl
16700 lb
