Lewis 3-3.5 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
Lewis 3-3.5 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
SKU:PUL-2f9472
Enhance pulling operations with Lewis Overhead Pulling Grip - durable, efficient, and reliable for heavy-duty tasks.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Lewis 3-3.5 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$79.99
Quantity: 1
Claim Your Seller Account
Lewis 3-3.5 in. Range Overhead Pulling Grip with Hardened Steel Rotating Eye
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

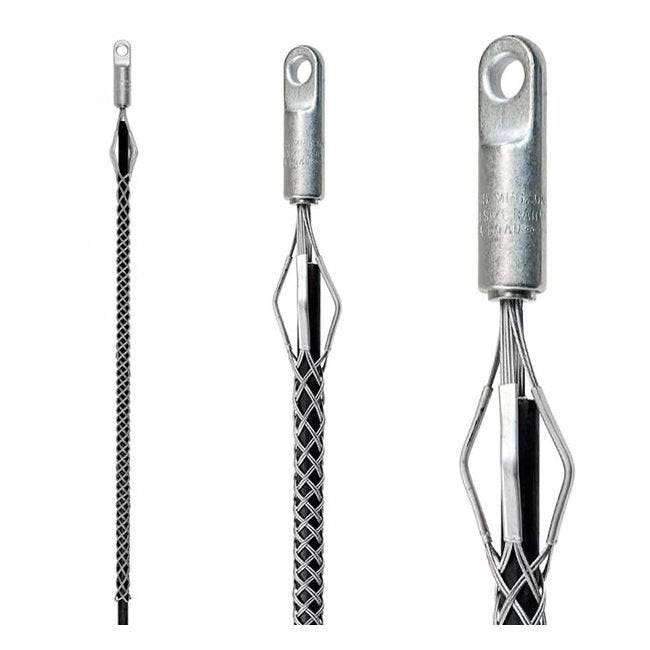

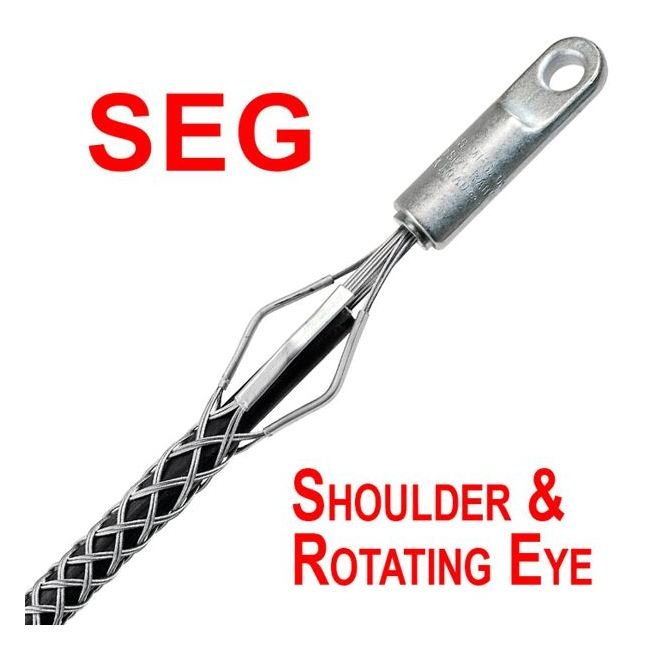

Upgrade your pulling operations with the Lewis Overhead Pulling Grip designed for durability and efficiency. The hardened steel rotating eye ensures smooth threading through blocks and sheaves, eliminating binding issues. With a work load capacity of 16700 lb and ultimate tensile strength of 33400 lb, this grip is a reliable choice for heavy-duty tasks. Not a ball bearing swivel, this grip still offers controlled torque release when needed. Ensure seamless operations with Lewis quality and performance.
Product Specifications
Additional Information

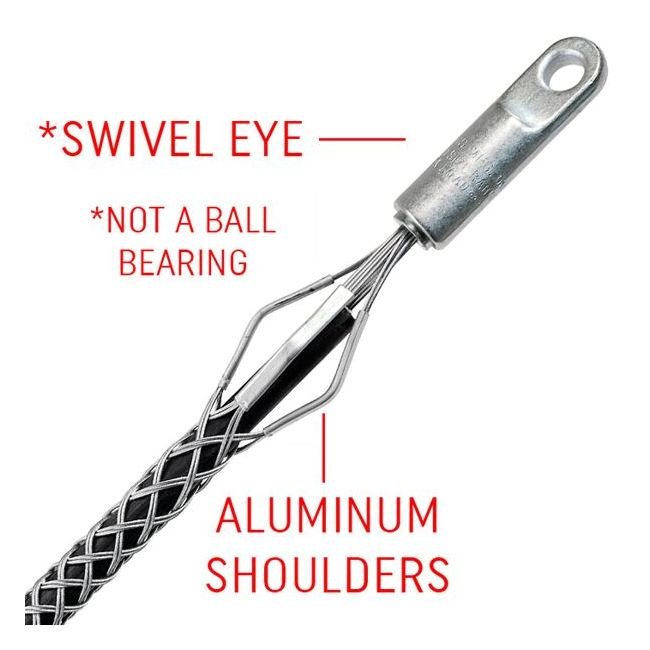

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

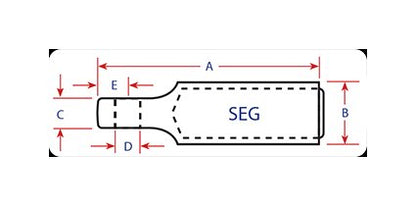

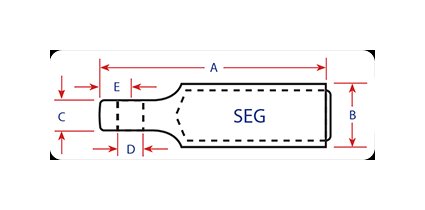

Dimensions A
8 in
Dimensions B
2 in
Dimensions C
11/16 in
Dimensions D
1 1/16 in
Dimensions E
1 1/4 in
Dimensions Mesh
66 in
Dimensions Range
3 to 3 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
33400 lb
Specifications Work Load Wl
16700 lb
