Lewis 3/4-1in Single Eye Fiber Ouchless Grip
Lewis 3/4-1in Single Eye Fiber Ouchless Grip
SKU:PUL-b0b8f3
Lightweight and durable Lewis Ouchless Grip for safe cable pulling in diverse environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Lewis 3/4-1in Single Eye Fiber Ouchless Grip
$39.99
Quantity: 1
Claim Your Seller Account
Lewis 3/4-1in Single Eye Fiber Ouchless Grip
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

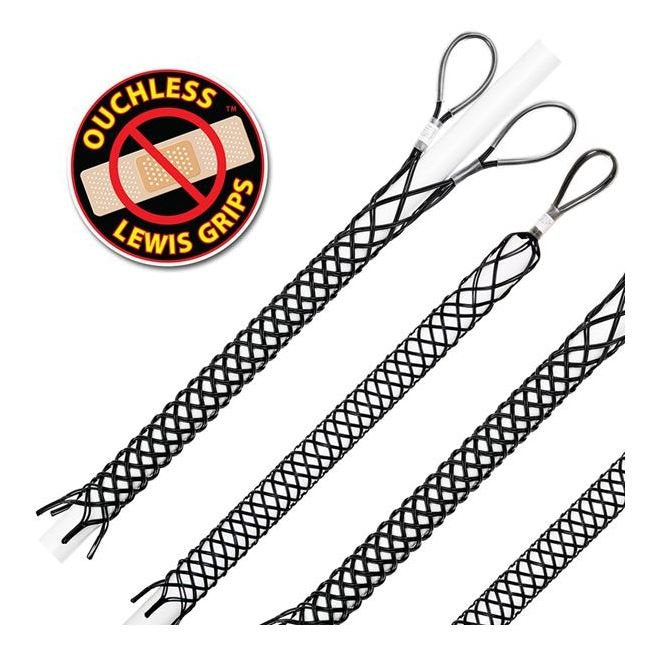

The Lewis 3/4 to 1 in. Range Single Weave Single Eye Fiber Ouchless Grip™ is a reliable and safe solution for pulling electric or fiber optic cables. Made of plastic-coated Aramid fibers with a work load of 1200 lb and ultimate tensile strength of 2400 lb, these grips ensure durability and non-conductivity. Featuring a mesh closing design and being much lighter than metal grips, they are easier to load and remove without the risk of wire frays or cuts. The Ouchless Lewis Grips™ are a trusted choice in overhead or underground operations, offering enhanced safety and efficiency.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
4 1/2 in
Dimensions Mesh
24 in
Dimensions Range
3/4 to 1 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
2400 lb
Specifications Weave
Single
Specifications Work Load Wl
1200 lb
