Lewis 3-4 in. Aramid Fiber Double Eye Ouchless Grip™
Lewis 3-4 in. Aramid Fiber Double Eye Ouchless Grip™
SKU:PUL-d158e4
Securely pull cables with the Lewis 3-4 in. Aramid Fiber Ouchless Grip™, offering safety and ease of use in overhead and underground operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis 3-4 in. Aramid Fiber Double Eye Ouchless Grip™
$29.99
Quantity: 1
Claim Your Seller Account
Lewis 3-4 in. Aramid Fiber Double Eye Ouchless Grip™
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

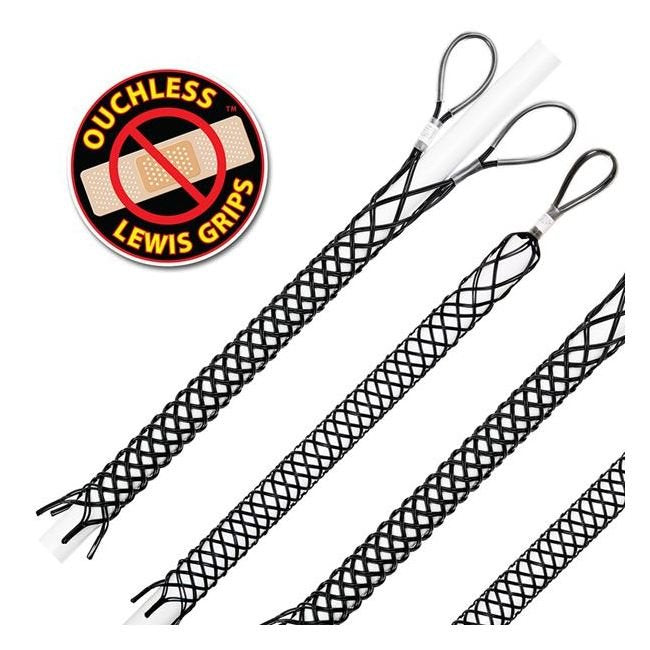

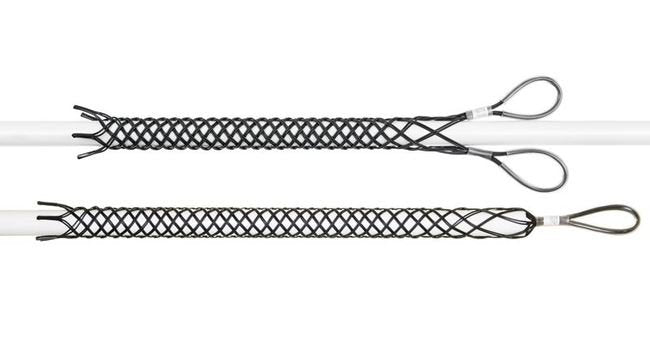

The Lewis 3-4 in. Aramid Fiber Double Eye Ouchless Grip™ is an essential tool for overhead or underground operations involving the pulling of electric or fiber optic cables. Constructed with tough plastic-coated Aramid fiber strands, this grip offers a work load of 5000 lb and ultimate tensile strength of 10000 lb. Its double weave double eye design ensures a secure grip without the risk of wire frays or cuts, making it safer than traditional metallic grips. Additionally, this non-conductive grip is much lighter than metal alternatives, easier to load and remove, and suitable for use in energized environments. When durability is crucial, consider the stainless steel option for coastal or corrosive environments.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
48 in
Dimensions Range
3 to 4 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
DLE Models
Specifications Type
Double Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
10000 lb
Specifications Weave
Double
Specifications Work Load Wl
5000 lb
