Lewis 3-4 in. Ouchless Grip, Plastic-Coated Aramid Fiber
Lewis 3-4 in. Ouchless Grip, Plastic-Coated Aramid Fiber
SKU:PUL-03f475
Innovative Lewis 3-4 in. Ouchless Grip for safe and efficient cable pulling operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis 3-4 in. Ouchless Grip, Plastic-Coated Aramid Fiber
$29.99
Quantity: 1
Claim Your Seller Account
Lewis 3-4 in. Ouchless Grip, Plastic-Coated Aramid Fiber
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

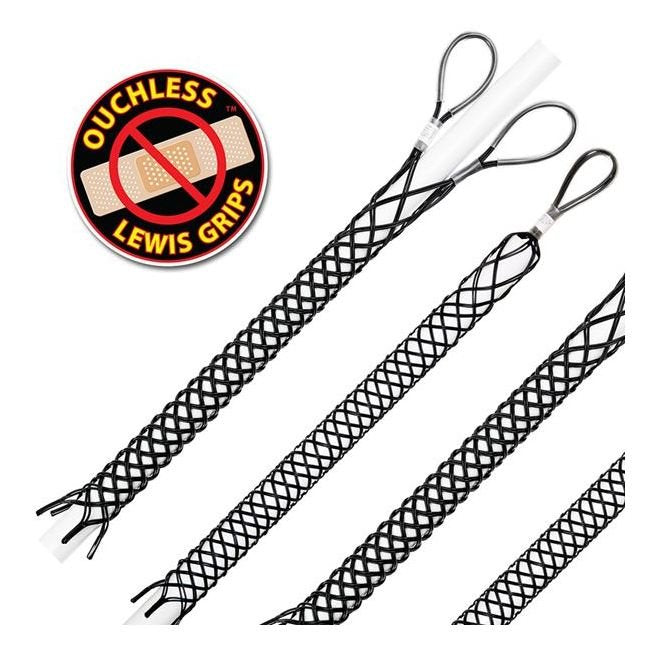

The Lewis 3-4 in. Range Double Weave Single Eye Fiber Ouchless Grip™ is a game-changer in cable pulling operations. Made of tough plastic-coated Aramid fibers, these Grips ensure no wire frays or cuts, guaranteeing safety and efficiency. With a work load of 5000 lb and ultimate tensile strength of 10000 lb, these grips are ideal for overhead or underground applications. Their non-conductive and lightweight design makes them versatile and easy to handle, perfect for energized environments. The inclusion of Aramid fibers eliminates the risk of sharp metal edges and corrosion issues, offering a reliable and durable solution for all pulling needs.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 1/2 in
Dimensions Mesh
52 in
Dimensions Range
3 to 4 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
10000 lb
Specifications Weave
Double
Specifications Work Load Wl
5000 lb
