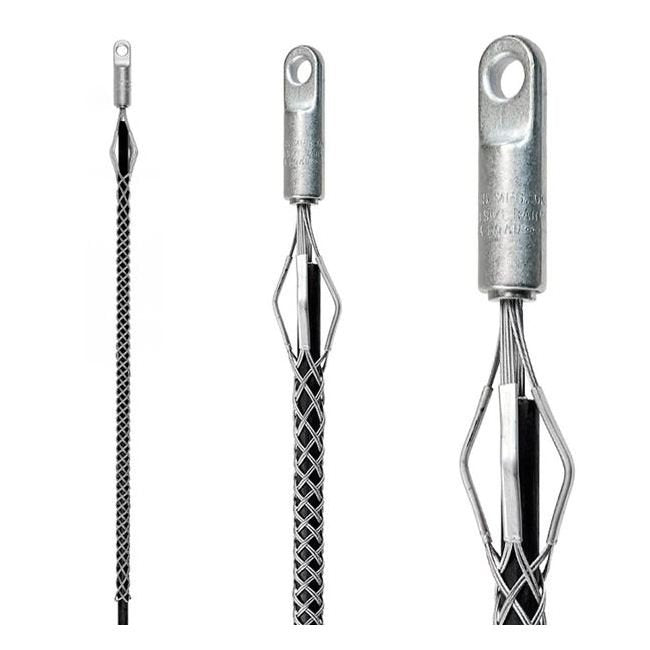

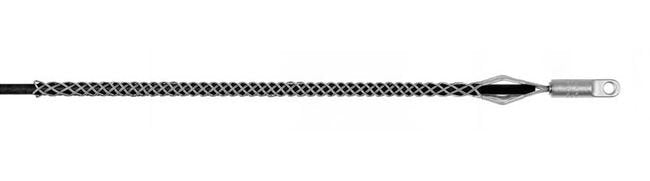

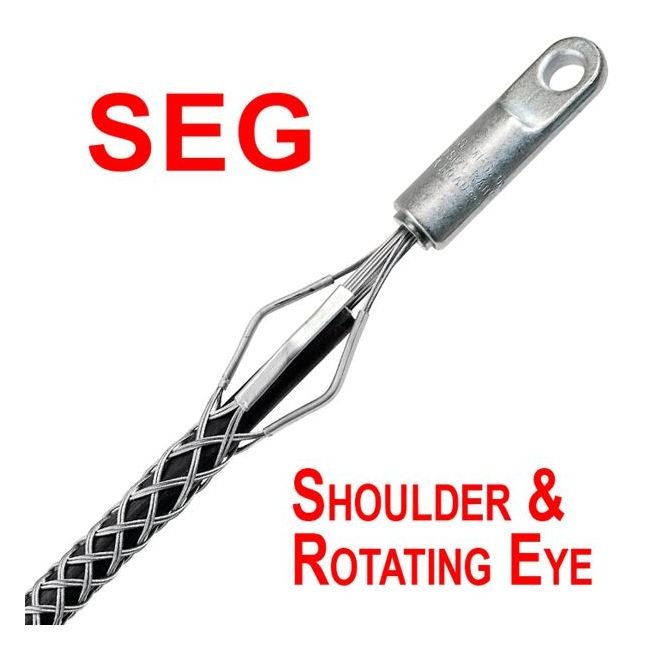

The Lewis Overhead Pulling Grip in the SEG Series is expertly crafted with hardened steel rotating eyes, ensuring durability and streamlined performance. With a working load of 23300 lb and ultimate tensile strength of 46600 lb, this grip provides reliable support for overhead pulling applications. The swivel eye design allows smooth threading through blocks and sheaves without binding, offering a hassle-free experience during operations. Please note that while the rotating eye swivel is not a ball bearing swivel, it effectively relieves pulling torque when tension is released, making it a practical choice for various scenarios.
Product Specifications
Additional Information

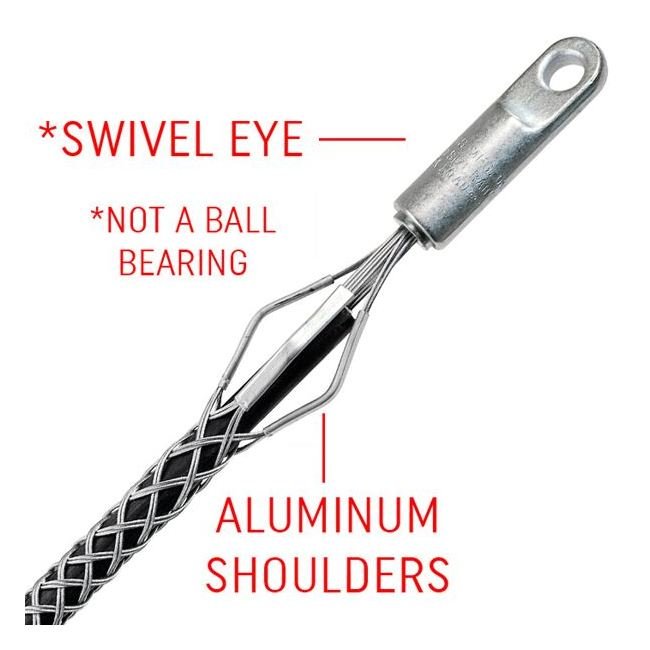

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

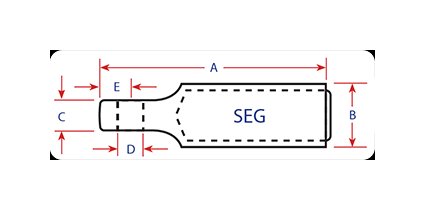

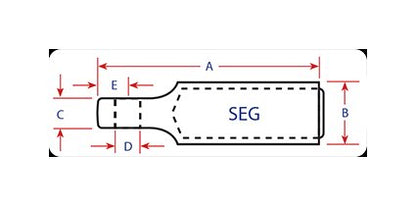

Dimensions A
8 1/2 in
Dimensions B
2 1/4 in
Dimensions C
13/16 in
Dimensions D
1 1/8 in
Dimensions E
1 3/8 in
Dimensions Mesh
72 in
Dimensions Range
4 1/2 to 5 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
46600 lb
Specifications Work Load Wl
23300 lb
