Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip - SEG Series

Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip - SEG Series

PUL-e13b27

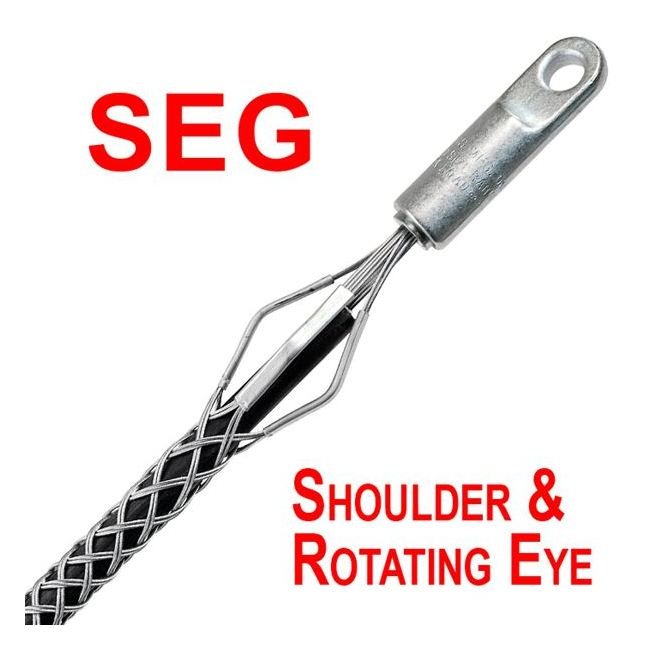

Enhance wire pulling efficiency with the Lewis Overhead Pulling Grip - SEG Series, featuring hardened steel rotating eyes for smooth block and sheave threading.

$39.99
$39.99
Sale

Initiate Order

Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip - SEG Series

Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip - SEG Series

$39.99

Quantity: 1

Claim Your Seller Account

Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip - SEG Series

Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip - SEG Series

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

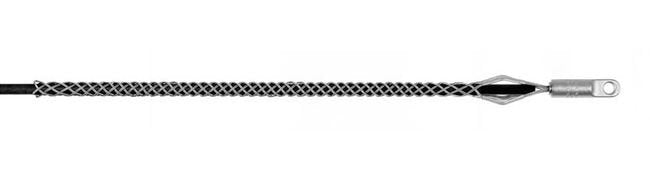

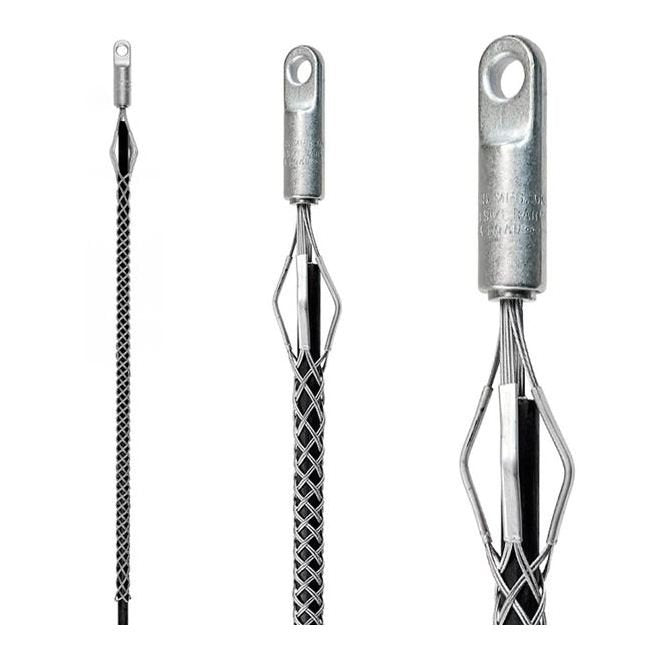

The Lewis 4 1/2 to 5 in. Range Overhead Pulling Grip from the SEG Series features a durable design with hardened steel rotating eyes, ensuring seamless threading through blocks and sheaves without binding. With a robust work load of 23300 lb and an Ultimate Tensile Strength of 46600 lb, this grip offers reliability and efficiency for wire pulling applications. Not a ball bearing swivel, the rotating eye grip provides controlled torque release for enhanced safety in high-tension environments, making it a dependable choice for a wide range of pulling tasks.

Product Specifications

Additional Information

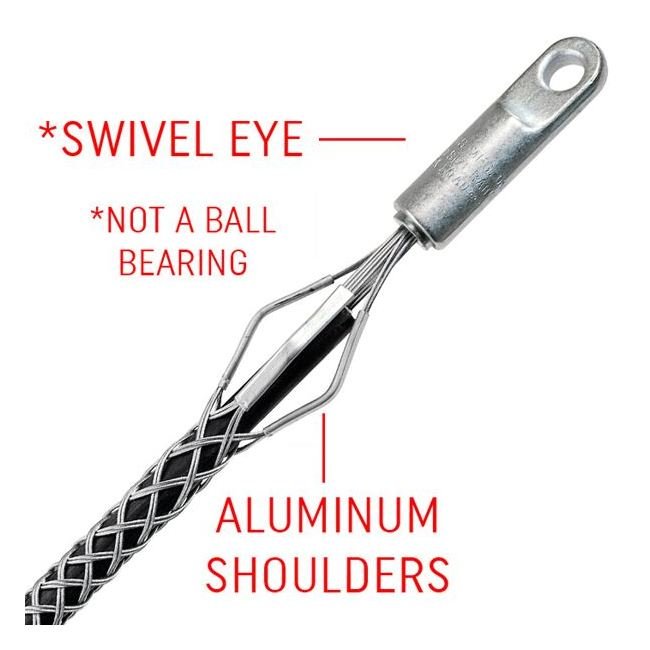

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

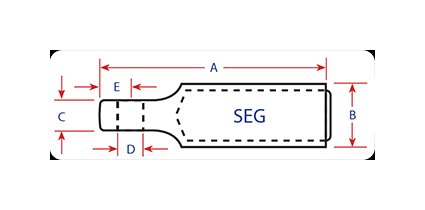

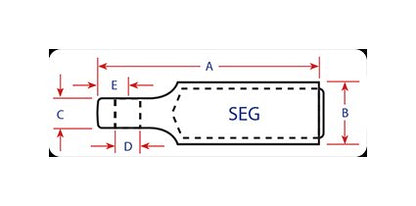

Dimensions A
8 1/2 in
Dimensions B
2 1/4 in
Dimensions C
13/16 in
Dimensions D
1 1/8 in
Dimensions E
1 3/8 in
Dimensions Mesh
72 in
Dimensions Range
4 1/2 to 5 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
46600 lb
Specifications Work Load Wl
23300 lb
