Lewis 4-1/8 in. Length HD Ball Bearing Swivel for Tension Stringing
Lewis 4-1/8 in. Length HD Ball Bearing Swivel for Tension Stringing
SKU:TOO-a558be
Lewis 4-1/8 in. Length HD Ball Bearing Swivel for reliable and heavy-duty tension stringing applications. Made of high-grade steel with 1500 lb WL & 4500 lb UTS.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis 4-1/8 in. Length HD Ball Bearing Swivel for Tension Stringing
$29.99
Quantity: 1
Claim Your Seller Account
Lewis 4-1/8 in. Length HD Ball Bearing Swivel for Tension Stringing
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

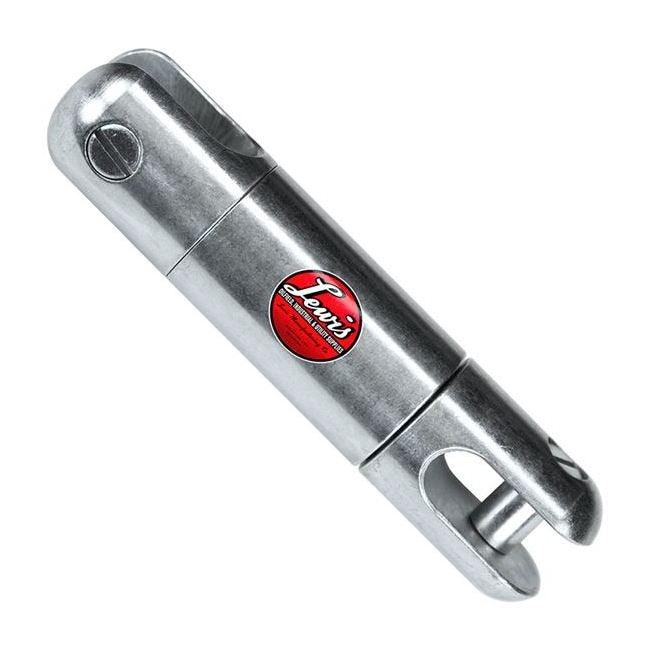

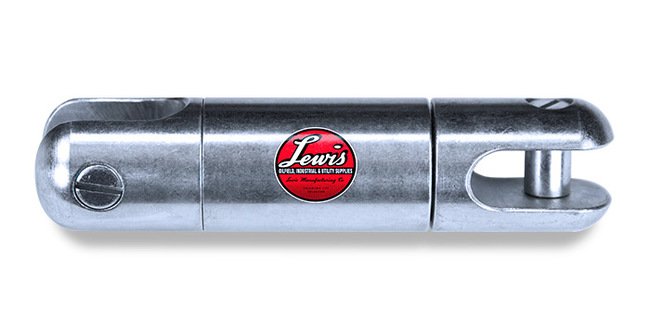

The Lewis 4-1/8 in. Length HD Ball Bearing Swivel is designed for tension stringing applications, ensuring the conductor stays neutral during transmission and distribution line stringing. Made of high-grade pre-stressed steel, this swivel can handle heavy-duty performance with a Work Load (WL) of 1500 lb and Ultimate Tensile Strength (UTS) of 4500 lb. Featuring screwdriver removable pins, it offers ease of maintenance and is greasable for smooth operation. Lewis swivels exceed industry safety standards, making them a reliable choice for critical utility line tasks.
Product Specifications
Dimensions Dia D
0.875 in
Dimensions Jaw C
3/8 in
Dimensions Length A
4-1/8 in
Dimensions Pin Dia B
5/16 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Material
Steel
Specifications Patent No
5,484,220
Specifications Performance
Heavy Duty
Specifications Type
Standard & Directional Boring HD Heavy Duty Swivels
Specifications Ultimate Tensile Strength Uts
4500 lb
Specifications Work Load Wl
1500 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
