Lewis 4-4.5" Overhead Pulling Grip - SEG Series
Lewis 4-4.5" Overhead Pulling Grip - SEG Series
SKU:PUL-b56bfc
Durable Lewis 4-4.5" Overhead Pulling Grip with Hardened Steel Rotating Eyes for efficient and reliable performance.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
Lewis 4-4.5" Overhead Pulling Grip - SEG Series
$65.99
Quantity: 1
Claim Your Seller Account
Lewis 4-4.5" Overhead Pulling Grip - SEG Series
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

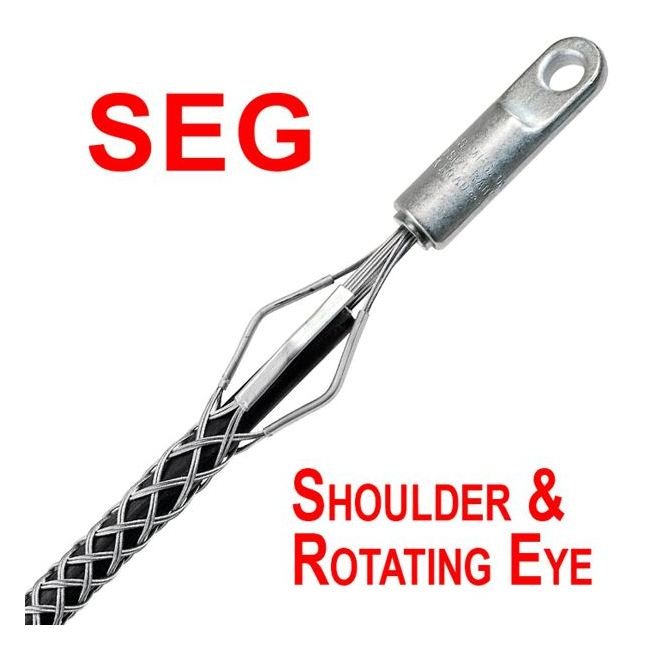

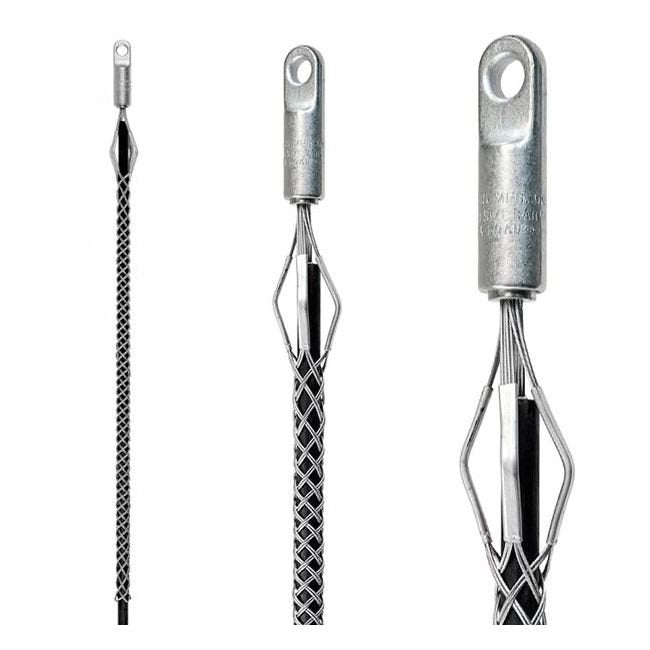

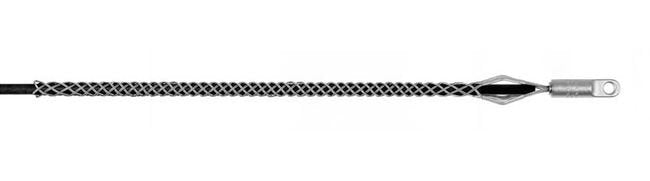

The Lewis 4-4.5" Overhead Pulling Grip from the SEG Series excels in durability and efficiency. Crafted with hardened steel rotating eyes, these grips offer a work load of 23300 lb and an ultimate tensile strength of 46600 lb. Their compact and streamlined design allows seamless threading through blocks and sheaves. Not a ball bearing swivel, the rotating eye swivel efficiently relieves pulling torque when tension is released, ensuring reliable performance in demanding applications.
Product Specifications
Additional Information

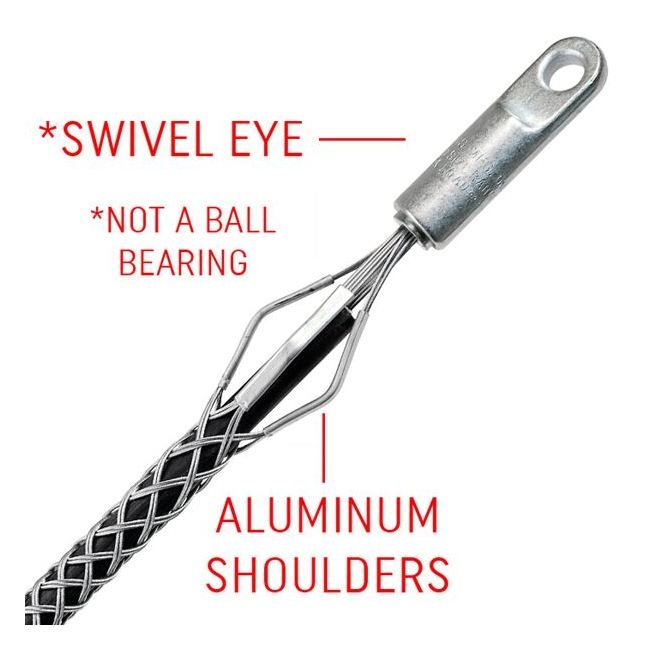

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

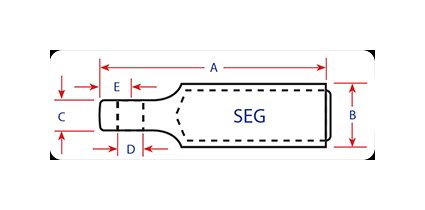

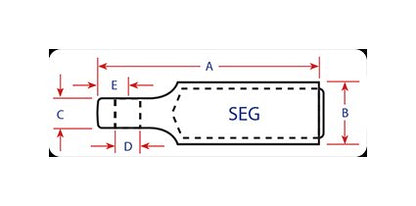

Dimensions A
8 1/2 in
Dimensions B
2 1/4 in
Dimensions C
13/16 in
Dimensions D
1 1/8 in
Dimensions E
1 3/8 in
Dimensions Mesh
72 in
Dimensions Range
4 to 4 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
46600 lb
Specifications Work Load Wl
23300 lb
