Lewis 5 to 5 1/2 in. Range Overhead Pulling Grip
Lewis 5 to 5 1/2 in. Range Overhead Pulling Grip
SKU:PUL-a723ee
Premium Lewis Overhead Pulling Grip for heavy-duty applications, featuring hardened steel rotating eye for durability and efficiency.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Lewis 5 to 5 1/2 in. Range Overhead Pulling Grip
$89.99
Quantity: 1
Claim Your Seller Account
Lewis 5 to 5 1/2 in. Range Overhead Pulling Grip
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

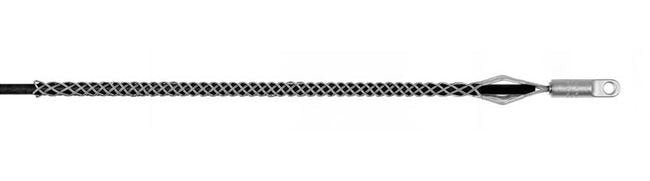

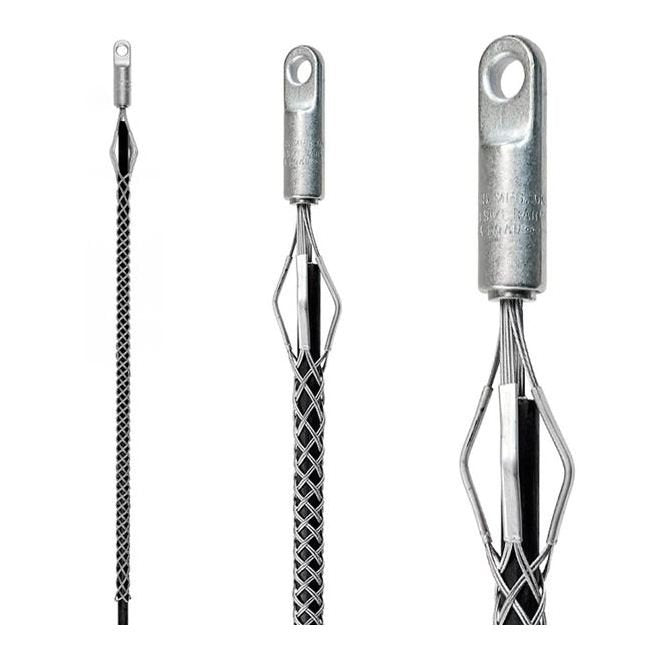

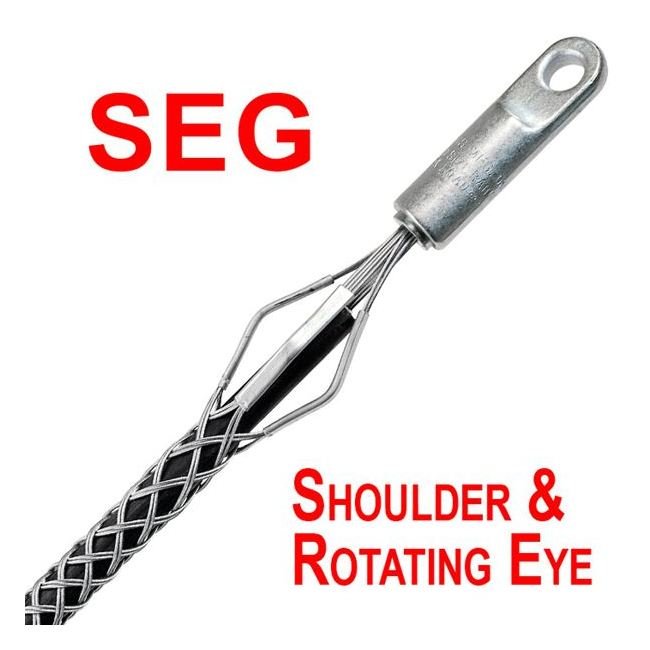

The Lewis 5 to 5 1/2 in. Range Overhead Pulling Grip from the SEG Series is a top-tier solution for overhead pulling applications. Constructed with hardened steel rotating eyes, this grip offers unmatched durability and efficiency. With a work load of 23300 lb and ultimate tensile strength of 46600 lb, it meets the highest industry standards for reliability and performance. The rotating eye swivel, although not a ball bearing type, smoothly navigates blocks and sheaves without binding, providing a seamless pulling experience. Ideal for heavy-duty use, this grip ensures optimal functionality and longevity in demanding environments.
Product Specifications
Additional Information

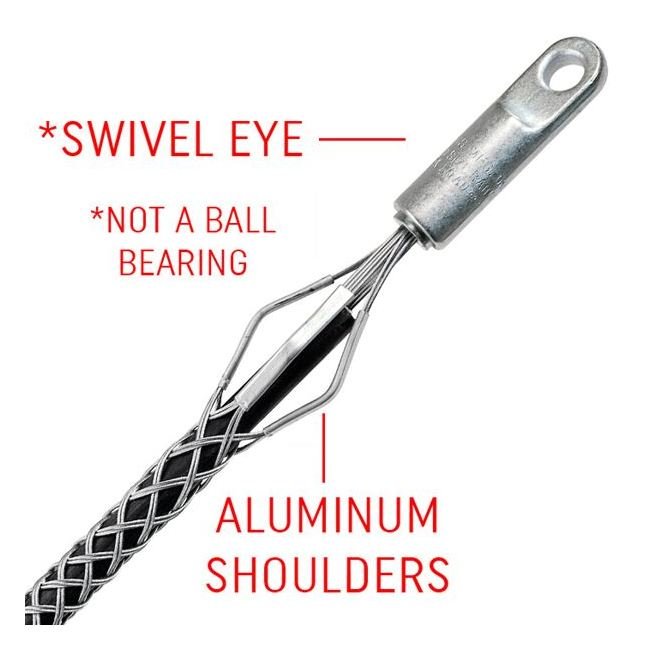

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

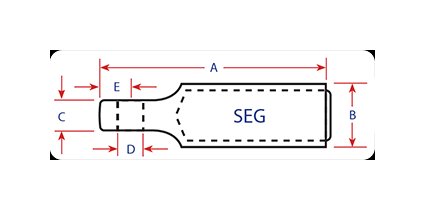

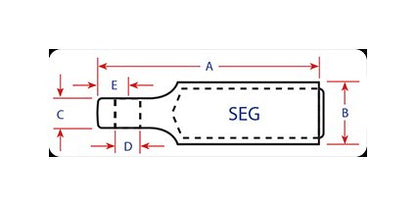

Dimensions A
8 1/2 in
Dimensions B
2 1/4 in
Dimensions C
13/16 in
Dimensions D
1 1/8 in
Dimensions E
1 3/8 in
Dimensions Mesh
72 in
Dimensions Range
5 to 5 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
46600 lb
Specifications Work Load Wl
23300 lb
