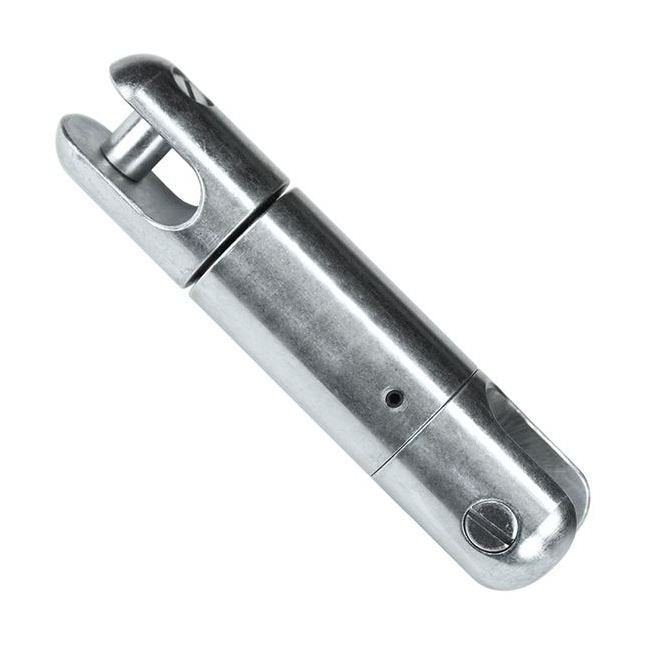

Lewis 6-1/8in. HD-S Sealed Ball Bearing Swivel for Directional Boring
Lewis 6-1/8in. HD-S Sealed Ball Bearing Swivel for Directional Boring
SKU:TOO-969f8c
Efficiently manage directional boring with the Lewis 6-1/8in. HD-S Sealed Ball Bearing Swivel.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Lewis 6-1/8in. HD-S Sealed Ball Bearing Swivel for Directional Boring
$129.99
Quantity: 1
Claim Your Seller Account
Lewis 6-1/8in. HD-S Sealed Ball Bearing Swivel for Directional Boring
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis 6-1/8in. HD-S Sealed Ball Bearing Swivel is a reliable solution for directional boring applications. Designed to prevent equipment's rotational torque from affecting the pulled product, this swivel ensures smooth operations. With a work load capacity of 9000 lb and an ultimate tensile strength of 27,000 lb, it meets rigorous industry standards. The swivel is permanently sealed to keep contaminants out, eliminating the need for lubrication, and offers options for screwdriver or allen wrench removable pins for added versatility. Ensure safety and efficiency in your boring projects with Lewis Swivels.
Product Specifications
Dimensions Dia D
1-7/16 in
Dimensions Jaw C
5/8 in
Dimensions Length A
6-1/8 in
Dimensions Pin Dia B
1/2 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Patent No
5,484,220
Specifications Type
Standard & Directional Boring HD-S Sealed Swivels
Specifications Ultimate Tensile Strength Uts
27,000 lb
Specifications Work Load Wl
9000 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
