Lewis 6-Inch HD Ball Bearing Swivel for Transmission & Distribution Lines
Lewis 6-Inch HD Ball Bearing Swivel for Transmission & Distribution Lines
SKU:TOO-9bf8dc
Boost efficiency and safety with the Lewis 6-Inch HD Ball Bearing Swivel for transmission & distribution lines.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Lewis 6-Inch HD Ball Bearing Swivel for Transmission & Distribution Lines
$59.99
Quantity: 1
Claim Your Seller Account
Lewis 6-Inch HD Ball Bearing Swivel for Transmission & Distribution Lines
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

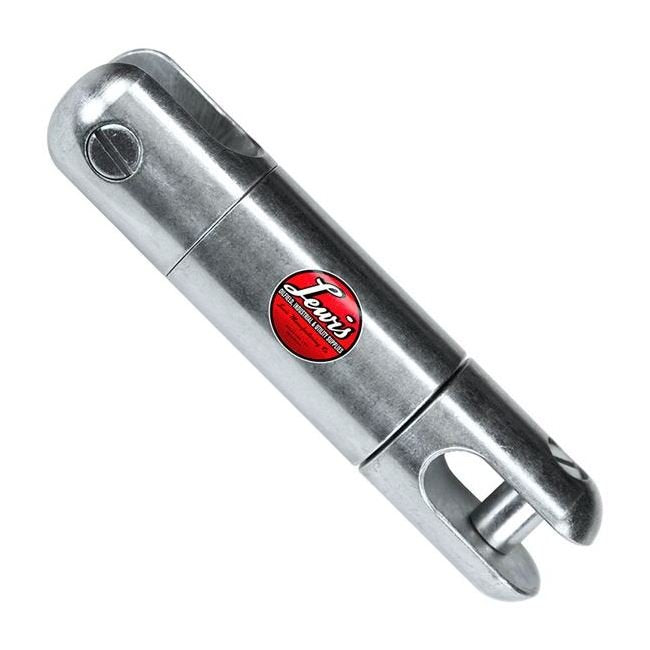

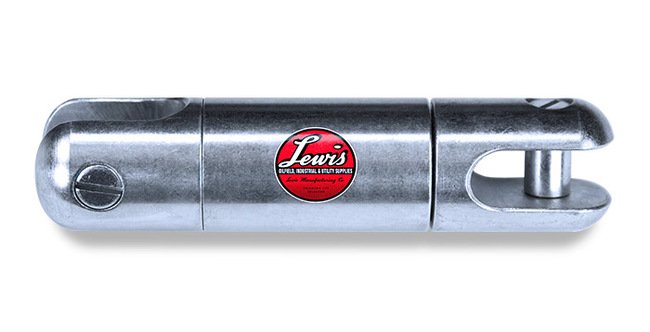

The Lewis 6-Inch HD Ball Bearing Swivel is a robust solution designed for tension stringing to ensure precise positioning of conductors during the stringing of transmission and distribution lines. Crafted from high-grade pre-stressed steel, this Heavy Duty (HD) Series Swivel offers a Work Load (WL) of 9000 lb and an Ultimate Tensile Strength (UTS) of 27,000 lb, making it ideal for heavy-duty applications. With thrust and radial bearings strategically placed, it can absorb shock loads without compromising rotation, while the screwdriver-removable pins enhance ease of use and maintenance. This greasable swivel is engineered to excel in maintaining operational efficiency and safety on utility projects.
Product Specifications
Dimensions Dia D
1-7/16 in
Dimensions Jaw C
5/8 in
Dimensions Length A
6 in
Dimensions Pin Dia B
1/2 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Material
Steel
Specifications Patent No
5,484,220
Specifications Performance
Heavy Duty
Specifications Type
Standard & Directional Boring HD Heavy Duty Swivels
Specifications Ultimate Tensile Strength Uts
27,000 lb
Specifications Work Load Wl
9000 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
