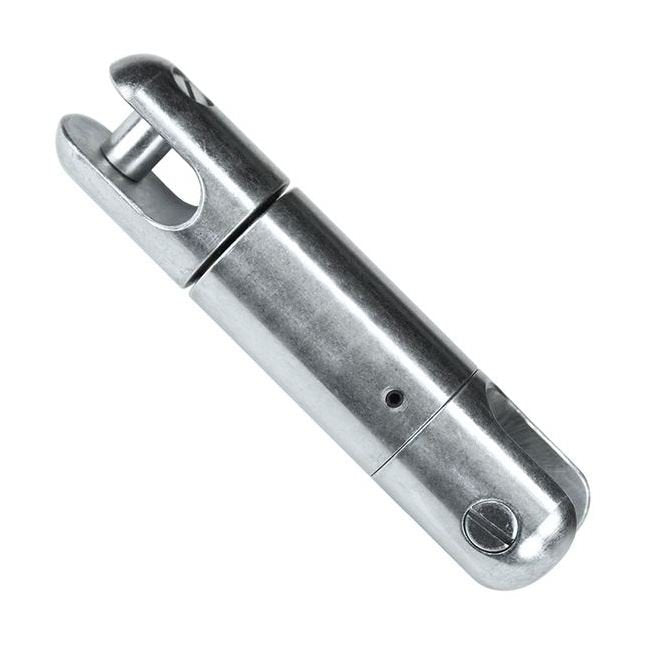

Lewis 7-3/8 in. HD-S Sealed Ball Bearing Swivel
Lewis 7-3/8 in. HD-S Sealed Ball Bearing Swivel
SKU:TOO-98d40e
Experience reliable torque prevention with the Lewis 7-3/8 in. HD-S Sealed Ball Bearing Swivel, ideal for directional boring applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Lewis 7-3/8 in. HD-S Sealed Ball Bearing Swivel
$79.99
Quantity: 1
Claim Your Seller Account
Lewis 7-3/8 in. HD-S Sealed Ball Bearing Swivel
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis 7-3/8 in. HD-S Sealed Ball Bearing Swivel is a reliable solution designed to prevent rotational torque interference during directional boring applications. With a work load (WL) of 12,000 lb and ultimate tensile strength (UTS) of 36,000 lb, this swivel is built for durability and performance. Its permanently sealed design keeps contaminants out, eliminating the need for constant lubrication. Ensuring safety, Lewis recommends regular inspections and proper maintenance to maximize the swivel's longevity and efficiency.
Product Specifications
Dimensions Dia D
1.625 in
Dimensions Jaw C
5/8 in
Dimensions Length A
7.375 in
Dimensions Pin Dia B
5/8 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Patent No
5,484,220
Specifications Type
Standard & Directional Boring HD-S Sealed Swivels
Specifications Ultimate Tensile Strength Uts
36,000 lb
Specifications Work Load Wl
12,000 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
