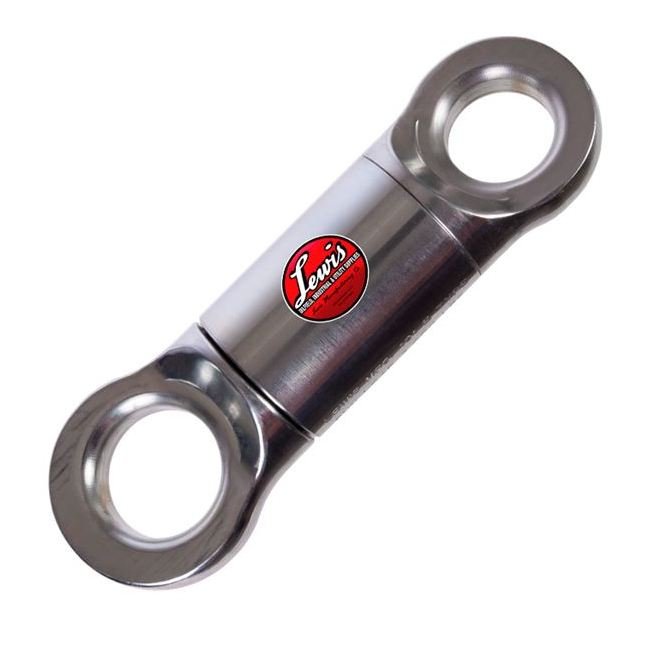

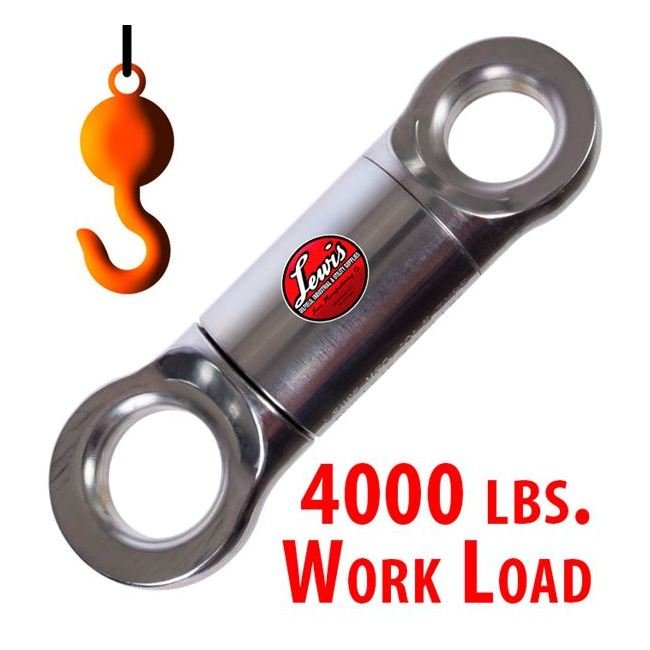

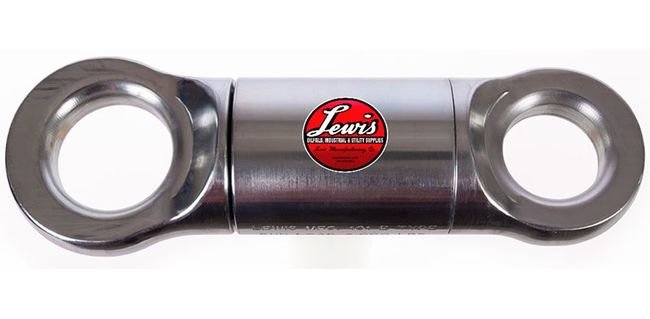

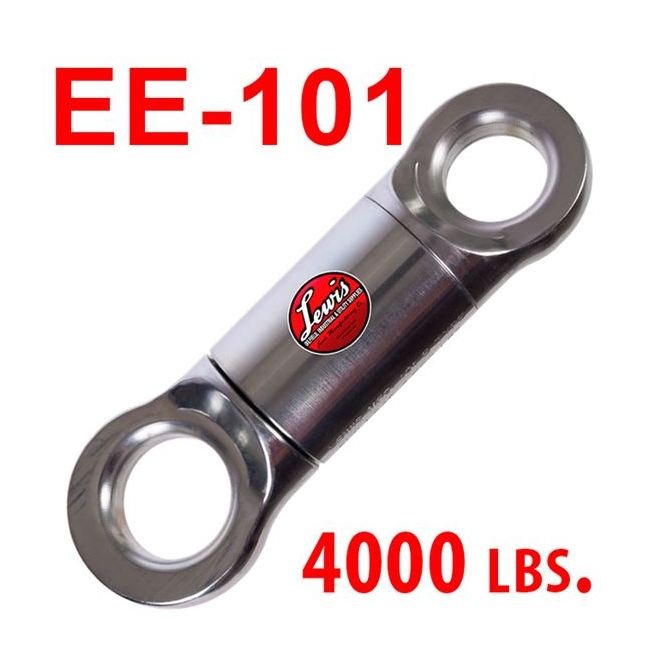

The Lewis 8-1/8 in. EE-101 Ball Bearing Swivel is a rugged and reliable solution designed for rigging applications. With a work load of 4000 lb and ultimate tensile strength of 10000 lb, this sealed ball bearing swivel ensures smooth operation and durability. Its sealed design guarantees optimal performance and safety in demanding rigging environments. Lewis Manufacturing Company emphasizes thorough inspection and maintenance guidelines to ensure continued operational efficiency and user safety.
Product Specifications
Dimensions Body Diameter F
2 in
Dimensions Large Inner Diameter C
1-1/2 in
Dimensions Large Outer Diameter B
2-9/16 in
Dimensions Length A
8-1/8 in
Dimensions Small Inner Diameter E
1-1/4 in
Dimensions Small Outer Diameter D
2-5/16 in
Features
Sealed Ball Bearing Swivel for Rigging
Specifications Brand
Lewis
Specifications Type
Bearing Swivel
Specifications Ultimate Tensile Strength Uts
10000 lb
Specifications Work Load Wl
4000 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
