Lewis 8-5/8 in. HD Ball Bearing Swivel for Heavy Duty Transmission Lines
Lewis 8-5/8 in. HD Ball Bearing Swivel for Heavy Duty Transmission Lines
SKU:TOO-780587
High-grade steel HD Ball Bearing Swivel for heavy-duty tension stringing, supporting up to 21,000 lb work load with 63,000 lb ultimate tensile strength.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Lewis 8-5/8 in. HD Ball Bearing Swivel for Heavy Duty Transmission Lines
$89.99
Quantity: 1
Claim Your Seller Account
Lewis 8-5/8 in. HD Ball Bearing Swivel for Heavy Duty Transmission Lines
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

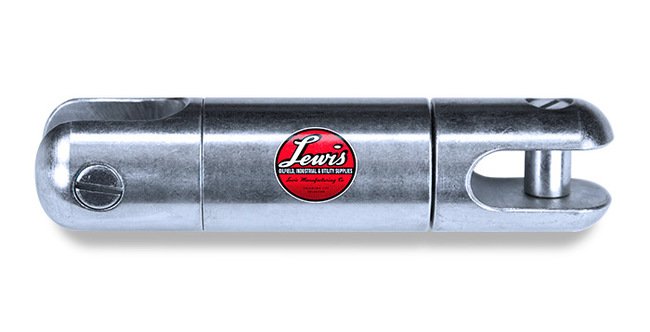

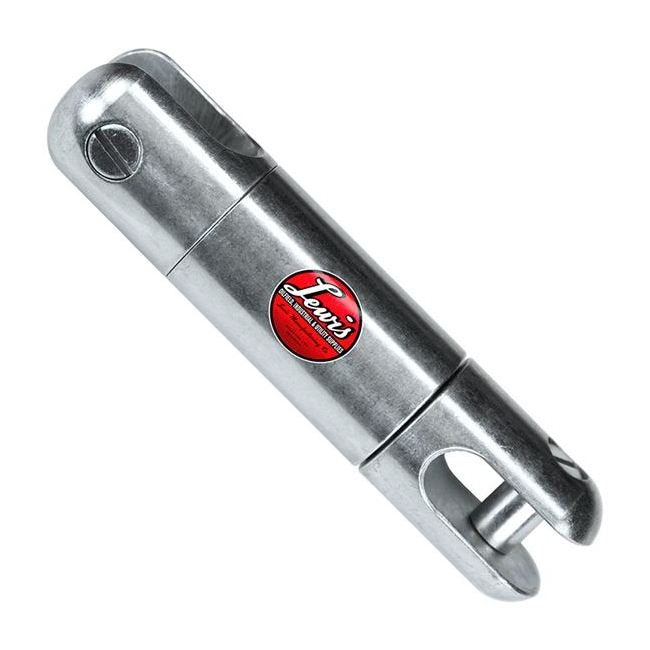

The Lewis 8-5/8 in. HD Ball Bearing Swivel is designed for heavy-duty tension stringing, ensuring conductors stay in the neutral position during transmission and distribution line projects. Made from high-grade pre-stressed steel, this swivel can handle work loads of up to 21,000 lb and has an ultimate tensile strength of 63,000 lb. Featuring thrust and radial bearings for absorbing shock loads without affecting rotation, it maintains reliability under intense pressure. With screwdriver-removable pins and a warning for proper inspection and lubrication practices, this Lewis swivel excels in safety and durability standards.
Product Specifications
Dimensions Dia D
2 in
Dimensions Jaw C
3/4 in
Dimensions Length A
8-5/8 in
Dimensions Pin Dia B
3/4 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Material
Steel
Specifications Patent No
5,484,220
Specifications Performance
Heavy Duty
Specifications Type
Standard & Directional Boring HD Heavy Duty Swivels
Specifications Ultimate Tensile Strength Uts
63,000 lb
Specifications Work Load Wl
21,000 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
