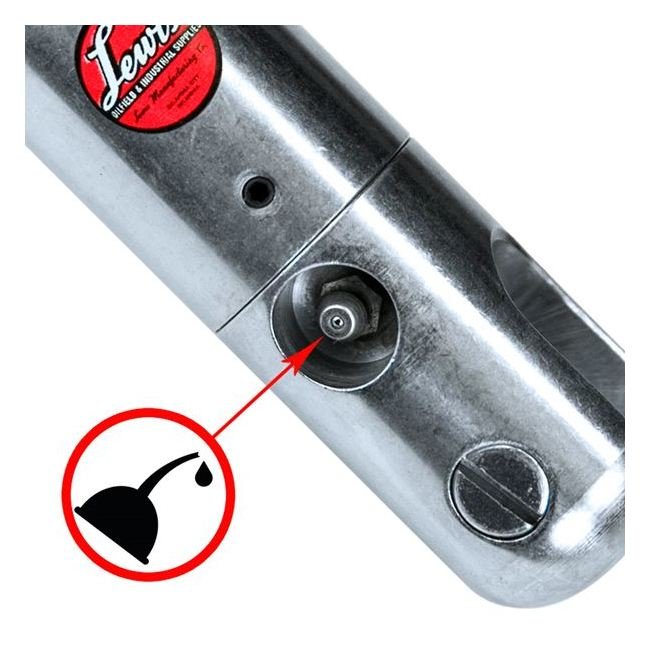

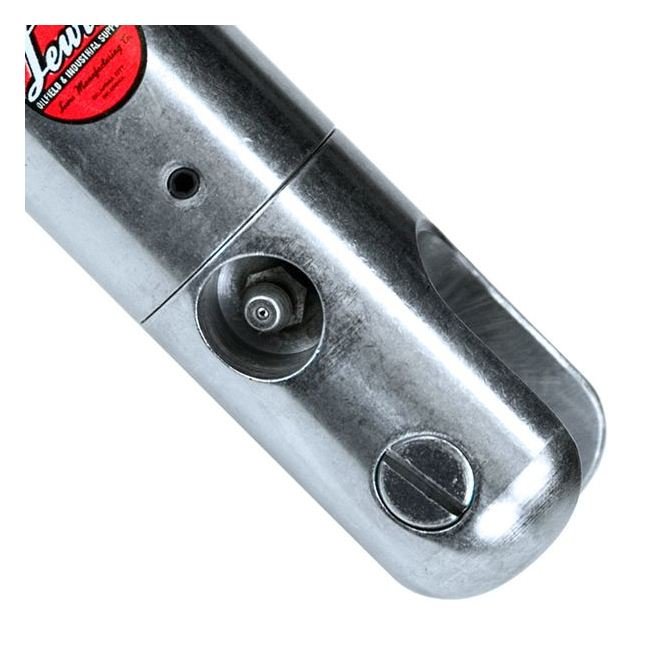

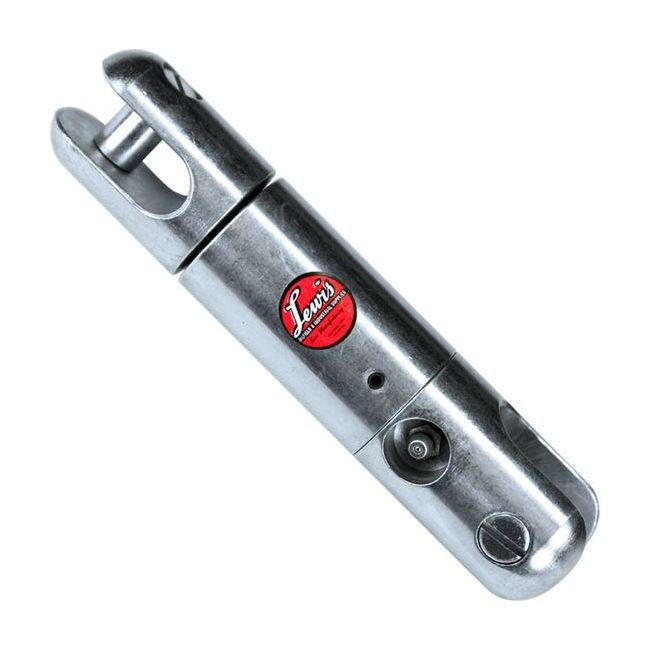

The Lewis 9 in. Length HD-S-Z Sealed Ball Bearing Swivel is the optimal choice for Directional Boring in both overhead and underground applications requiring a greasable swivel. With a robust Work Load of 21,000 lb and Ultimate Tensile Strength of 63,000 lb, this Lewis swivel ensures high-quality performance. Incorporating greasable option and patented design (Patent No. 5,484,220), it guarantees reliability and longevity. Ensure safety and efficiency with this Lewis swivel, designed for heavy-duty industrial applications.
Product Specifications
Dimensions Dia D
2 in
Dimensions Jaw C
3/4 in
Dimensions Length A
9.000 in
Dimensions Pin Dia B
3/4 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Patent No
5,484,220
Specifications Type

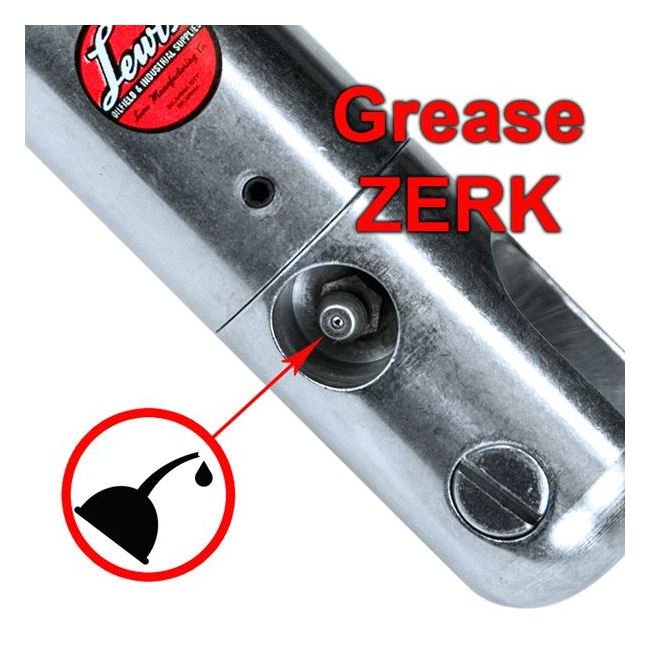

Standard & Directional Boring HD-S-Z Sealed Grease Zerk Swivels
Specifications Ultimate Tensile Strength Uts
63,000 lb
Specifications Work Load Wl
21,000 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
