Lewis HD-S-Z Sealed Ball Bearing Swivel, 5-1/16 in. Length
Lewis HD-S-Z Sealed Ball Bearing Swivel, 5-1/16 in. Length
SKU:PUL-0f9eeb
Durable Lewis HD-S-Z Sealed Ball Bearing Swivel for directional boring, with 5,400 lb work load & 16,200 lb ultimate tensile strength.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Lewis HD-S-Z Sealed Ball Bearing Swivel, 5-1/16 in. Length
$79.99
Quantity: 1
Claim Your Seller Account
Lewis HD-S-Z Sealed Ball Bearing Swivel, 5-1/16 in. Length
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

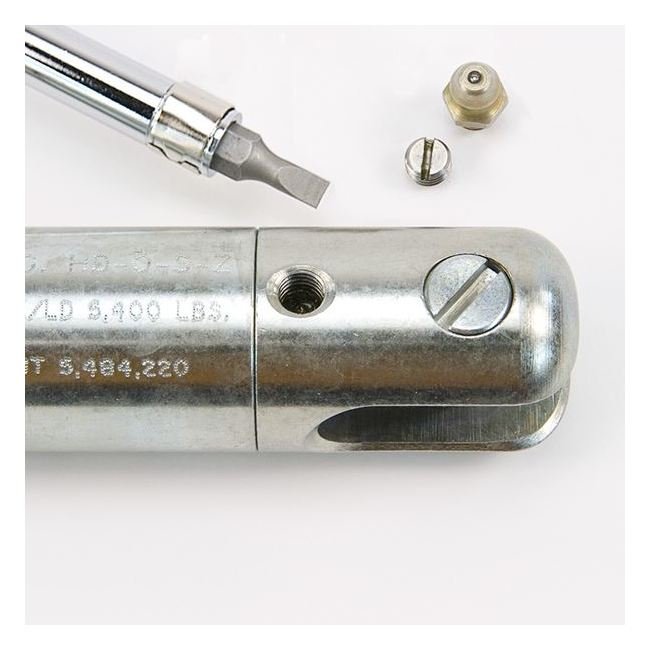

The Lewis HD-S-Z Sealed Ball Bearing Swivel is engineered for directional boring in both overhead and underground applications, combining high-quality materials with a greasable design for enhanced durability and performance. With a work load of 5,400 lb and ultimate tensile strength of 16,200 lb, this swivel ensures reliable operation under demanding conditions. Featuring a patented design (Patent No. 5,484,220) and meticulously crafted dimensions, this swivel is a top choice for those seeking robust and greasable swivel solutions. Compliance with Lewis Manufacturing Company's inspection guidelines and maintenance recommendations ensures optimal performance and longevity.
Product Specifications
Dimensions Dia D
1.125 in
Dimensions Jaw C
1/2 in
Dimensions Length A
5-1/16 in
Dimensions Pin Dia B
7/16 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Patent No
5,484,220
Specifications Type
Standard & Directional Boring HD-S-Z Sealed Grease Zerk Swivels
Specifications Ultimate Tensile Strength Uts
16,200 lb
Specifications Work Load Wl
5,400 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
