Lewis LSG Series Snake Grip Wire Rope & Cable Pulling Grip, 1/4-1 1/2 in. Range
Lewis LSG Series Snake Grip Wire Rope & Cable Pulling Grip, 1/4-1 1/2 in. Range
SKU:PUL-127800
Securely grip cable & wire rope with Lewis LSG Series Snake Grip, 1/4-1 1/2 in. range. Prevents line twisting, easy installation, and high strength.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis LSG Series Snake Grip Wire Rope & Cable Pulling Grip, 1/4-1 1/2 in. Range
$49.99
Quantity: 1
Claim Your Seller Account
Lewis LSG Series Snake Grip Wire Rope & Cable Pulling Grip, 1/4-1 1/2 in. Range
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

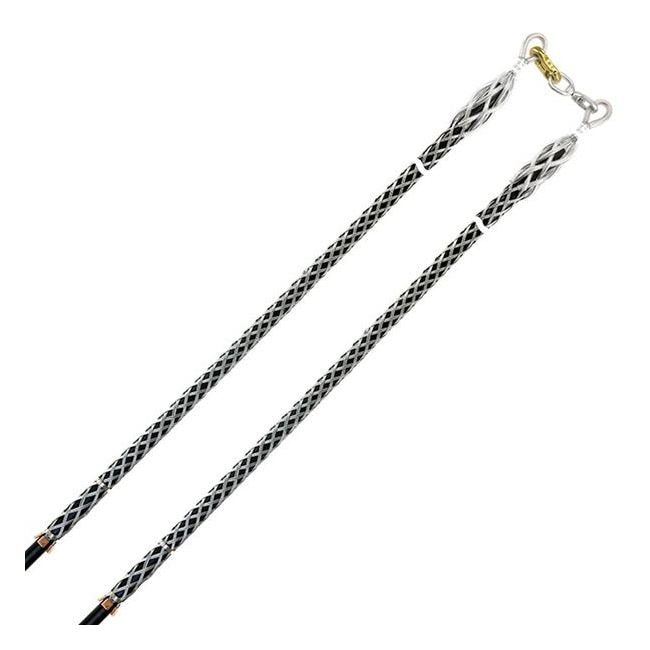

The Lewis LSG Series Snake Grip is a versatile solution for gripping various cable and wire rope sizes, ranging from 1/4 to 1 1/2 inches. Designed with a swivel and swing link for smooth maneuverability through blocks, this grip prevents line twisting, ensuring efficient cable installations. With a work load capacity of 1200 lbs and an ultimate tensile strength of 2400 lbs, this LSG Snake Grip guarantees secure and reliable cable handling. Safety is paramount, so strict banding and taping guidelines must be followed to prevent accidents. Trust the Lewis LSG Series for dependable, twist-free cable and wire rope handling.
Product Specifications
Additional Information

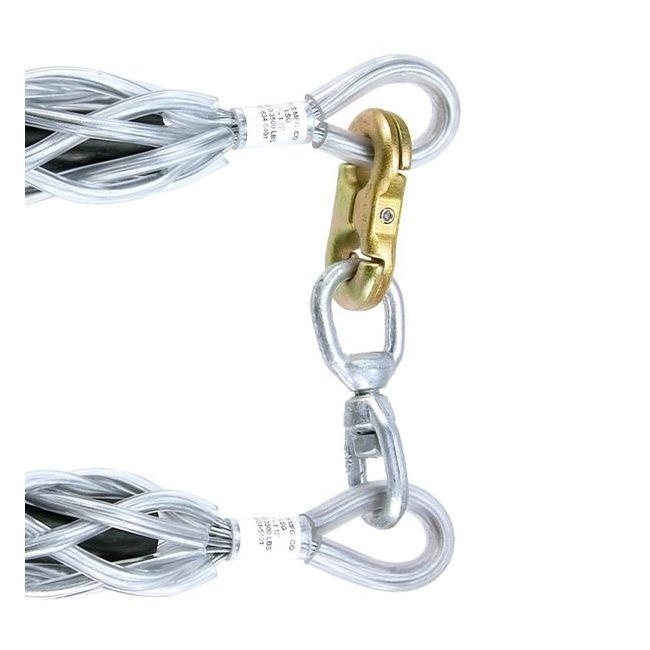

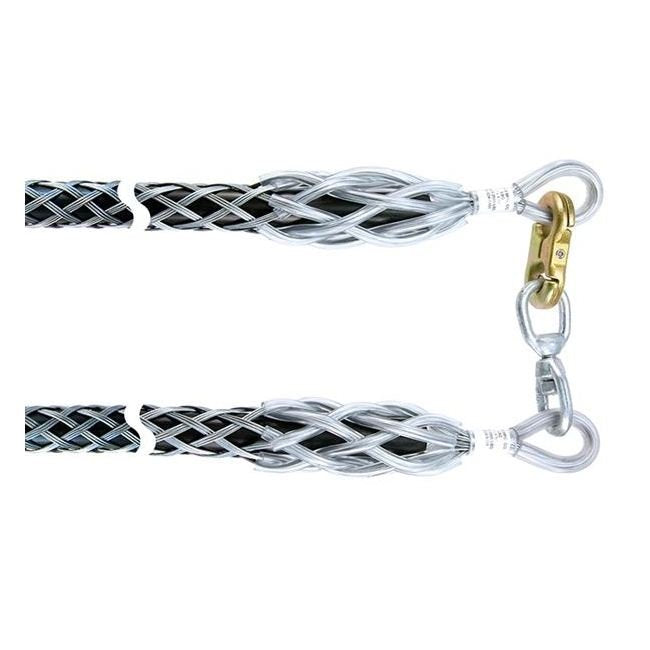

The swivel and swing link go smoothly through blocks and prevent line twisting. Install new cable by using old existing cable as pulling line. Always seize the ends of the Grip by banding and taping. Make sure to BAND AND TAPE the ends of the Grips.
Dimensions Range
1/4 to 1 1/2 in
Note
The Grip on the Special Size LSG models are not the same on each side.
Specifications Brand
Lewis
Specifications Style
LSG Snake Grip
Specifications Type
Wire Rope & Cable Snake Grip
Specifications Ultimate Tensile Strength Uts
2400 lb
Specifications Work Load Wl
1200 lb
Warning
READ THIS GUIDELINE BEFORE USING LSG SNAKE GRIPSFOLLOW GRIPS BANDING INSTRUCTIONS CONTAINED IN THIS DOCUMENTSafety is always No. 1. Make sure no one is under the line as it is being pulled through the blocks and crown.DO NOT stand below or near the drilling line under tension, severe injury or death could occur. KEEP BACKBoth ends of the snake grip must be properly BANDED AND TAPED according to banding instructions located in this documentFailure to follow the safety and use instructions properly could lead to injury or even death.
