Lewis LSG Series Wire Rope & Cable Snake Grip, 3 1/2-4 1/4 in. Range
Lewis LSG Series Wire Rope & Cable Snake Grip, 3 1/2-4 1/4 in. Range
SKU:PUL-fe574e
Enhance cable and wire rope grip with Lewis LSG Series for secure, smooth, and safe pulling applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis LSG Series Wire Rope & Cable Snake Grip, 3 1/2-4 1/4 in. Range
$49.99
Quantity: 1
Claim Your Seller Account
Lewis LSG Series Wire Rope & Cable Snake Grip, 3 1/2-4 1/4 in. Range
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

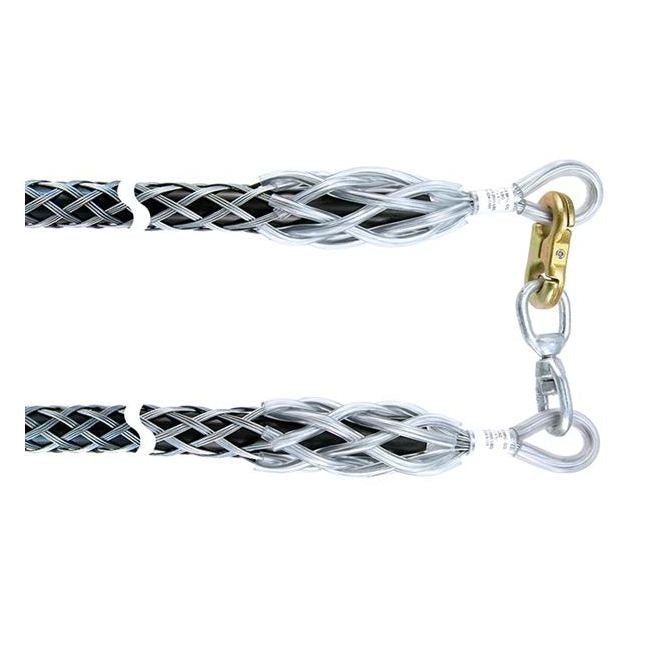

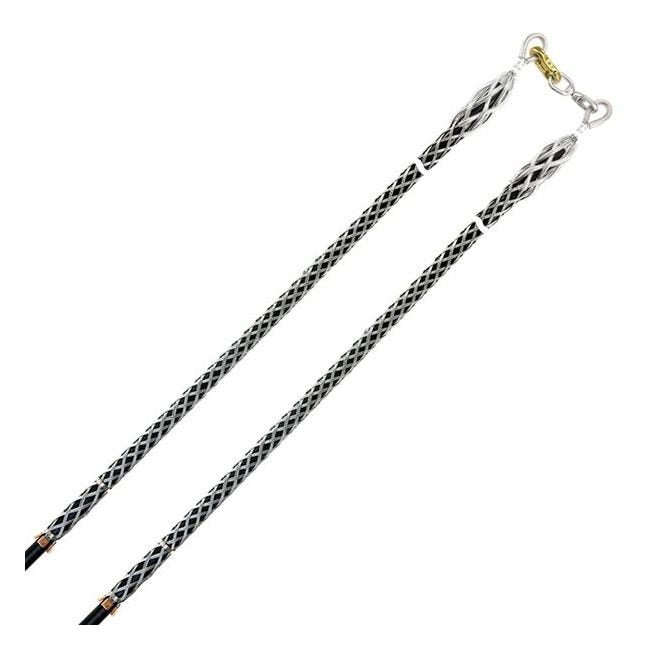

The Lewis LSG Series Wire Rope & Cable Snake Grip offers versatile expansion and contraction capabilities to securely grip various cable and wire rope sizes. With a work load of 5000 lb and ultimate tensile strength of 10000 lb, this grip ensures reliable performance in pulling applications. Its swivel and swing link design facilitates smooth movement through blocks, preventing line twisting. Easy to install, this grip allows for new cable insertion using existing ones. Safety is paramount with banding and taping instructions provided for secure usage, ensuring compliance with industry standards and regulations.
Product Specifications
Additional Information

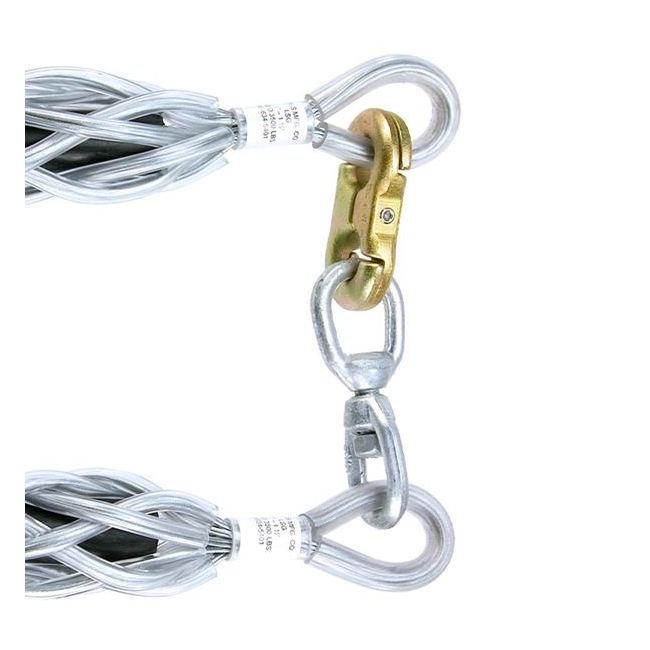

The swivel and swing link go smoothly through blocks and prevent line twisting. Install new cable by using old existing cable as pulling line. Always seize the ends of the Grip by banding and taping. Make sure to BAND AND TAPE the ends of the Grips.
Dimensions Range
3 1/2 to 4 1/4 in
Specifications Brand
Lewis
Specifications Style
LSG Snake Grip
Specifications Type
Wire Rope & Cable Snake Grip
Specifications Ultimate Tensile Strength Uts
10000 lb
Specifications Work Load Wl
5000 lb
Warning
READ THIS GUIDELINE BEFORE USING LSG SNAKE GRIPSFOLLOW GRIPS BANDING INSTRUCTIONS CONTAINED IN THIS DOCUMENTSafety is always No. 1. Make sure no one is under the line as it is being pulled through the blocks and crown.DO NOT stand below or near the drilling line under tension, severe injury or death could occur. KEEP BACKBoth ends of the snake grip must be properly BANDED AND TAPED according to banding instructions located in this documentFailure to follow the safety and use instructions properly could lead to injury or even death.
