Lewis SEG Series 1/4-1/2 in. Range Overhead Pulling Grip
Lewis SEG Series 1/4-1/2 in. Range Overhead Pulling Grip
SKU:PUL-372e09
Lewis SEG Series Overhead Pulling Grip: Durable hardened steel grip for smooth and secure overhead pulling. Not a ball bearing swivel, releasing torque to ensure controlled pulling.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis SEG Series 1/4-1/2 in. Range Overhead Pulling Grip
$29.99
Quantity: 1
Claim Your Seller Account
Lewis SEG Series 1/4-1/2 in. Range Overhead Pulling Grip
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis SEG Series Overhead Pulling Grip offers unmatched strength and durability for overhead pulling applications. Constructed with hardened steel rotating eyes, this grip ensures smooth threading through blocks and sheaves without binding. With a work load of 1200 lb and ultimate tensile strength of 2400 lb, it provides reliable performance in demanding environments. Not a ball bearing swivel, it releases pulling torque when tension is relieved, making it ideal for various applications requiring secure and controlled pulling capabilities.
Product Specifications
Additional Information

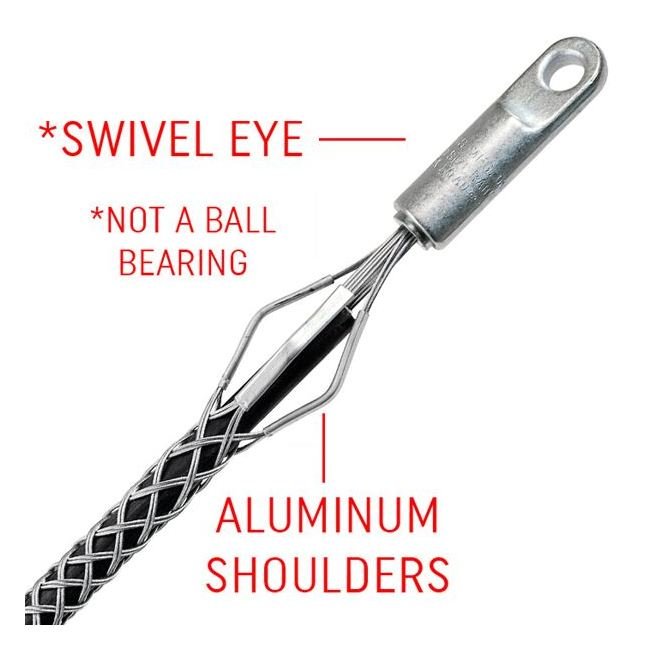

NOT A BALL BEARING SWIVEL: The rotating swivel eye is not a ball bearing swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used.

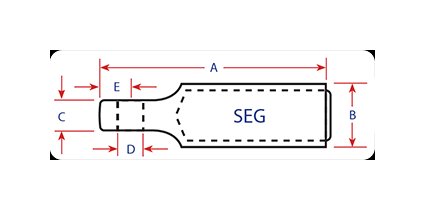

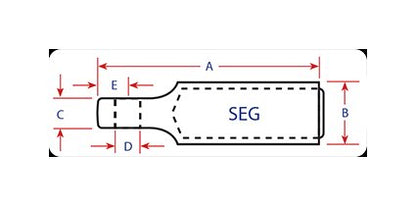

Dimensions A
3 1/4 in
Dimensions B
7/8 in
Dimensions C
3/8 in
Dimensions D
15/32 in
Dimensions E
17/32 in
Dimensions Mesh
24 in
Dimensions Range
1/4 to 1/2 in
Note
The rotating eye swivel is Not a Ball Bearing Swivel and will not turn while under tension. It will turn to relieve pulling torque when the pulling tension is released. If a continual swivel movement is needed, a ball bearing swivel should be used per following applications:HD and W series swivels for overheadHD-S series swivel when a high tension environment is anticipated, coupled with a need for a sealed swivel: i.e. harsh environmental requirements.
Specifications Brand
Lewis
Specifications Eye Material
Hardened Steel
Specifications Style
SEG MODELS, SWIVEL EYE GRIPS
Specifications Type
Overhead Pulling Grip
Specifications Ultimate Tensile Strength Uts
2400 lb
Specifications Work Load Wl
1200 lb
