Lewis X Series 46 in. Standard X Grips Pulling Grip
Lewis X Series 46 in. Standard X Grips Pulling Grip
SKU:PUL-43b008
Durable Lewis X Series Pulling Grip for efficient cable pulling, color-coded, plastic-coated, ultimate tensile strength of 16,500 lb, ideal for professional wire pulling applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Lewis X Series 46 in. Standard X Grips Pulling Grip
$39.99
Quantity: 1
Claim Your Seller Account
Lewis X Series 46 in. Standard X Grips Pulling Grip
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

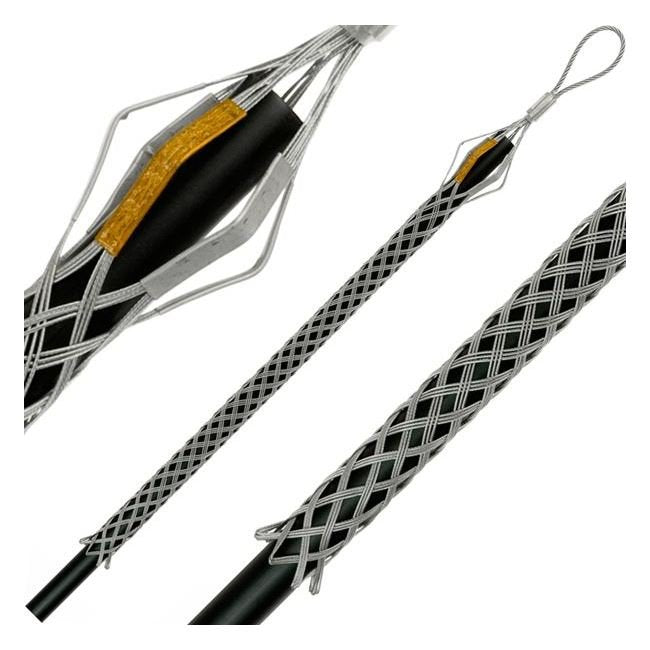

The Lewis X Series 46 in. Standard X Grips Pulling Grip is a durable and efficient cable pulling mesh grip designed for professional wire pulling applications. Color-coded for easy identification, this grip features a plastic-coated construction that extends its lifespan and enhances gripping performance, reducing the risk of injuries from frayed wires. With an ultimate tensile strength of 16,500 lb and a unique backwards weave design, this grip offers enhanced pulling surface and the ability to maneuver through tight clearances with ease. Ideal for use in challenging environments, such as clay conduits or gravel, the Lewis X Series grip is available in galvanized wire and can be customized with stainless steel options. Equipped with a single wire eye for easy attachment of a swivel, this grip is engineered to meet the demanding needs of professional cable installers.
Product Specifications
Dimensions Eye
7 in
Dimensions Mesh
46 in
Dimensions Range
2 3/4 to 3 1/2 in
Features
The X-Series features metal sleeves near the top of the grip to eliminate wear when pulling through clay conduit, gravel or other abrasive pulling environments. This series is constructed with galvanized wire but can be ordered with stainless steel at additional cost.Plastic-Coated with Quick Color ID
Specifications Brand
Lewis
Specifications Color
Orange
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated
Specifications Patent No
3,122,806
Specifications Style
Standard X Grips
Specifications Type
Cable Pulling Mesh Grip
Specifications Ultimate Tensile Strength Uts
16500 lb
Specifications Weave
Backwards
Specifications Work Load Wl
5500 lb
