Lexco Cable Round Bend U-Bolts

Lexco Cable Round Bend U-Bolts

SKU:WIR-9b4c8a

Durable Round Bend U-Bolts for various pipe sizes, with NC rolled threads, multiple finish options, and optional U-Bolt plates.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Lexco Cable Round Bend U-Bolts

Lexco Cable Round Bend U-Bolts

$49.99

Quantity: 1

Claim Your Seller Account

Lexco Cable Round Bend U-Bolts

Lexco Cable Round Bend U-Bolts

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Lexco Cable Round Bend U-Bolts are precision-manufactured from low carbon steel, designed for steel or wrought iron pipes ranging from 1/4" to 18" in size. These U-Bolts feature NC rolled threads, come with two (2) hex nuts, and offer optional U-Bolt plates. With standard zinc plated, hot galvanized, or black oxide finishes, these U-Bolts can also be coated with other materials. The round, square, or 'V' types are available with diameters up to 1", crafted in both ferrous and non-ferrous metals, meeting rigorous institutional standards.

Product Specifications

Note Note
Some sizes also available in Stainless Steel Made in USA
Specifications Coating Material
Aluminum

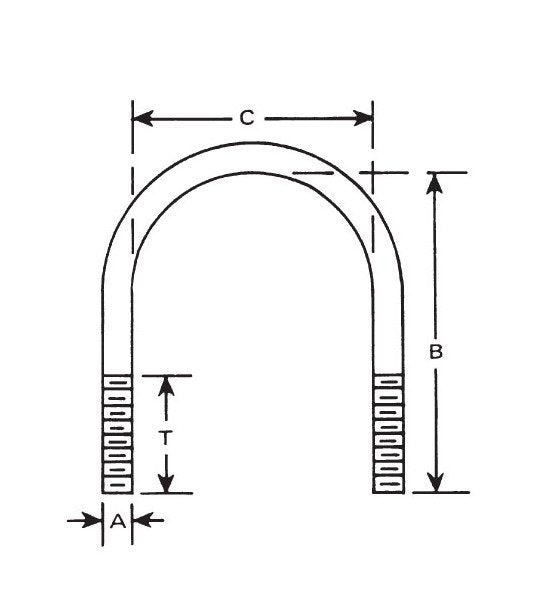

Specifications Diameter And Thread A
1/4"-20
Specifications For Pipe Size
3/4 "
Specifications Inside Diameter C
1-1/8 "
Specifications Inside Length B
2 "
Specifications Package Type
Each
Specifications Stock Number
05AL
Specifications Thread Length T
1 "
Specifications Weight100
2 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
