Lexco Round Bend U-Bolts

Lexco Round Bend U-Bolts

SKU:WIR-2c6e21

High-quality Lexco Round Bend U-Bolts for a variety of pipe sizes, offering durability and customization options.

Regular price $65.99
Regular price Sale price $65.99
Sale

Initiate Order

Lexco Round Bend U-Bolts

Lexco Round Bend U-Bolts

$65.99

Quantity: 1

Claim Your Seller Account

Lexco Round Bend U-Bolts

Lexco Round Bend U-Bolts

$65.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Lexco Round Bend U-Bolts are expertly crafted from low carbon steel with NC rolled threads, designed for Steel or Wrought Iron pipe sizes ranging from 1/4" to 18". Each U-Bolt comes with two (2) imported hex nuts and options for zinc plated, hot galvanized, or black oxide finishes. Custom coatings and self-coloring are available upon request. With variations in round, square, or 'V' types, these U-Bolts are manufactured to meet stringent specifications in both ferrous and non-ferrous metals. For added versatility, U-Bolt plates are also available. Some sizes are crafted from Stainless Steel, proudly made in the USA.

Product Specifications

Note Note
Some sizes also available in Stainless Steel Made in USA
Specifications Coating Material
Black Oxide

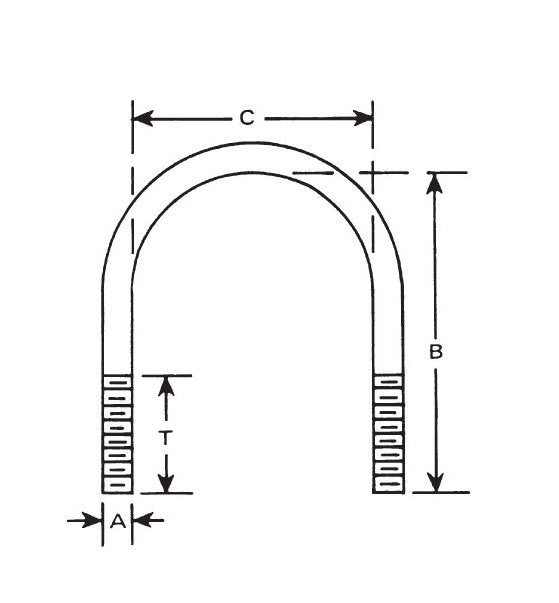

Specifications Diameter And Thread A
1/4"-20
Specifications For Pipe Size
3/4 "
Specifications Inside Diameter C
1-1/8 "
Specifications Inside Length B
2 "
Specifications Package Type
Each
Specifications Stock Number
05BO
Specifications Thread Length T
1 "
Specifications Weight100
7 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
