Lexco Round Bend U-Bolts

Lexco Round Bend U-Bolts

SKU:WIR-393fa3

High-quality Lexco U-Bolts for 1/4"-18" Steel or Wrought Iron pipes, featuring low carbon steel construction, and various finish options.

Regular price $32.99
Regular price Sale price $32.99
Sale

Initiate Order

Lexco Round Bend U-Bolts

Lexco Round Bend U-Bolts

$32.99

Quantity: 1

Claim Your Seller Account

Lexco Round Bend U-Bolts

Lexco Round Bend U-Bolts

$32.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Lexco Round Bend U-Bolts are crafted from low carbon steel with NC rolled threads, ideal for Steel or Wrought Iron pipes ranging from 1/4" to 18" in size. This set includes two hex nuts and offers optional U-Bolt plate. Standard finishes include Zinc plated, hot galvanized, and black oxide. These U-Bolts can be customized with various coatings upon request. Manufactured to rigorous specifications, the Lexco U-Bolts are available in Round, Square, or 'V' types up to 1" diameter in both ferrous and non-ferrous metals, ensuring durability and reliability for diverse applications.

Product Specifications

Note Note
Some sizes also available in Stainless Steel Made in USA
Specifications Coating Material
Black Oxide

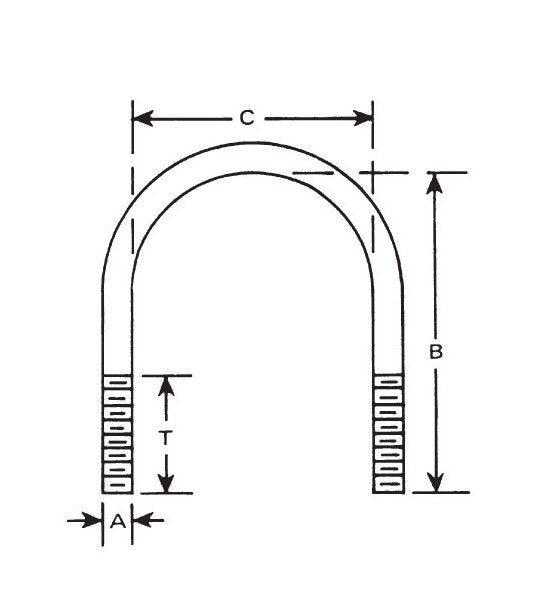

Specifications Diameter And Thread A
5/16"-18
Specifications For Pipe Size
1-1/4 "
Specifications Inside Diameter C
1-3/4 "
Specifications Inside Length B
2-11/16 "
Specifications Package Type
Each
Specifications Stock Number
013BO
Specifications Thread Length T
1-1/8 "
Specifications Weight100
13 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
