LFI 36x42x36 Wall Flush Door Pass Through
LFI 36x42x36 Wall Flush Door Pass Through
SKU:FLU-8632ac
Secure and efficient 36x42x36 Wall Flush Door Pass Through with heavy-duty stainless steel construction and customizable features for diverse needs.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
LFI 36x42x36 Wall Flush Door Pass Through
$2,799.99
Quantity: 1
Claim Your Seller Account
LFI 36x42x36 Wall Flush Door Pass Through
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

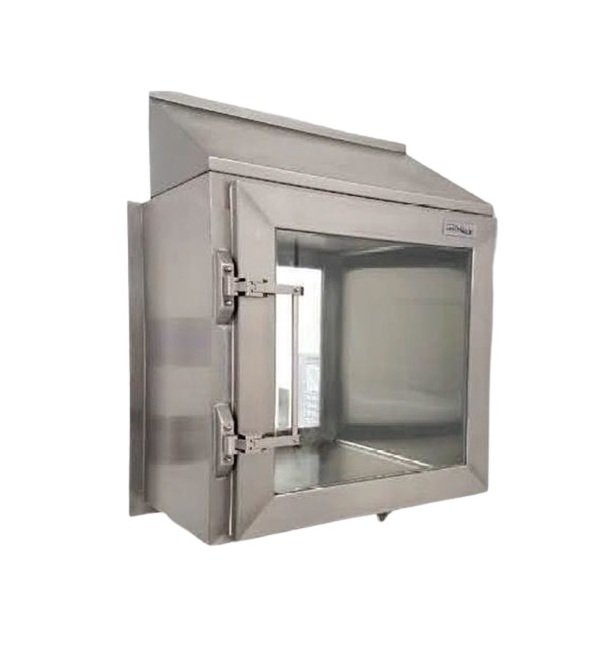

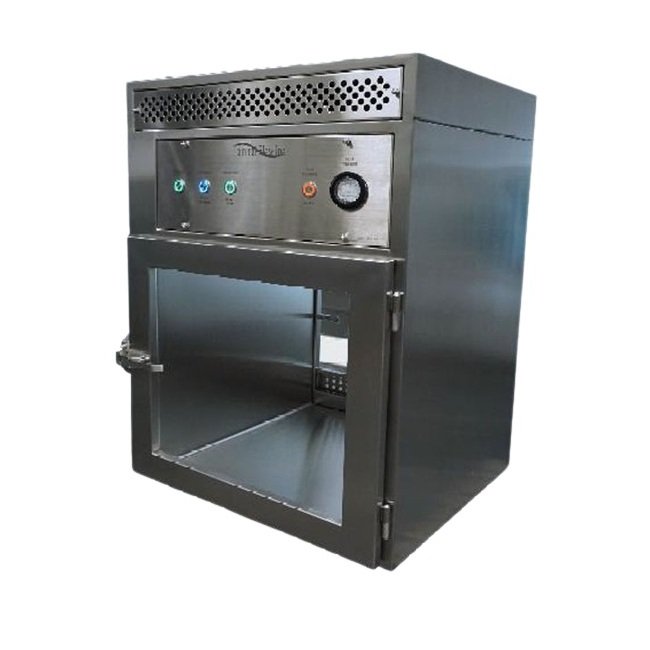

The LFI 36x42x36 Wall Flush Door Pass Through is engineered for secure and efficient transfer of items between controlled environments. Crafted with heavy-duty stainless steel, this pass thru features options like electromagnetic interlocks, LED lighting, and HEPA filtration to meet diverse operational needs. Designed to uphold stringent quality standards, LFI Pass Thrus assure seamless functionality with customizable features and precise construction.
Product Specifications
Construction Construction
A completely self-contained system constructed of double wall, heavy duty 14 and 16 ga stainless steel. Continuously welded interiors ground smooth and polished provide a seamless 1/2" rad. coved corner interior as standard method of construction. Heavy duty stainless steel latches assure a positive door sea!. Doors are manufactured from either heavy gauge double wall or tubular construction. Doors are available with Lexan, Plexiglas, or Laminated Safety Glass viewing panels. HEPA filtered Pass Thrus active feature a continuously welded knife edge incorporated into the top of the Pass Thru flush mounted with a perforated stainless steel grille located downstream of the HEPA filter. Grilles are removable and accessible from within the Pass Thru. Systems are fully assembled and wired at our facility prior to shipping.
Controls And Features Controls And Features

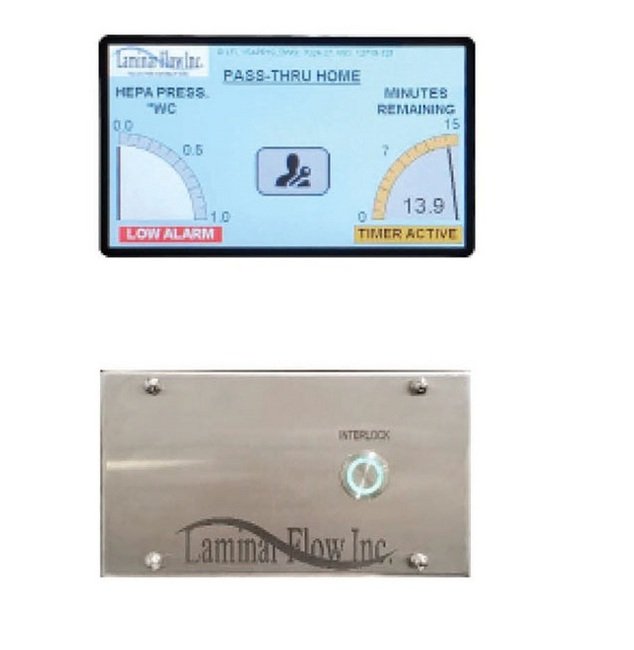

Pass-Thru Controls and Features All Pass-Thrus can be equipped with an assortment of optional features:Electromagnetic interlocks integrated into the Pass Thru body with Red/Green LED indicator lights.Automatic doors with Wave Switch operation.Interior LED lightingColor Touchscreen PLC/HMI for Pass Thru control and diagnostic Options for Pass Thrus with HEPA filtrationForced air blower with speed controlFilter Pressure monitoring gaugeVisual and/or audible alerts for Low and High PressureDigital Purge timer with additional Red/Green indicator lightsBAS Feedback for remote monitoringOther features are available on request, discuss any custom requirements with the LFI sales team, they will be happy to meet your unique needs.
Filters Filters
If specified, HEPA or ULPA filters are available. Gel Seal technology is utilized as a standard with all of our systems. This design allows for the gel trough to be around the filter and the knife edge integrally incorporated into the Pass Thru. Perforated stainless steel grilles located downstream and flush to the interior protect the filter and provide even air distribution. Both serviced from within the Pass Thru chamber.
Internal Sizes Depth
36 in
Internal Sizes Height
42 in
Internal Sizes Width
36 in
Note Note
Laminar Flow Inc. Pass Thrus are designed to protect product and ambient areas while passing through adjacent rooms with different classifications.Please note standard sizes shown. For custom sizes please contact a LFI sales representative.All systems constructed of 304 or 316L stainless steel polished to a number 4 finish.All industry standard electrical voltages and electrical configurations are available.If applicable, electrical connections, filters & lights may need to be installed in the field by others.Installation, electrical tie-in in field by others.
Options Options
Mechanical InterlockElectro-magnetic InterlockPLC controlsLED lightingAutomated door with wave technologyHEPA or ULPA filterSingle pass air flow with air ductSloped topSingle pass air flow with blowerRecirculating air flow with blowerRemovable shelfWall mountedFloor mountedVHP ports
Technical Specs Brands
Laminar Flow Inc.
Technical Specs Note For Internal Sizes
Unless noted otherwise, all dimensions are external.

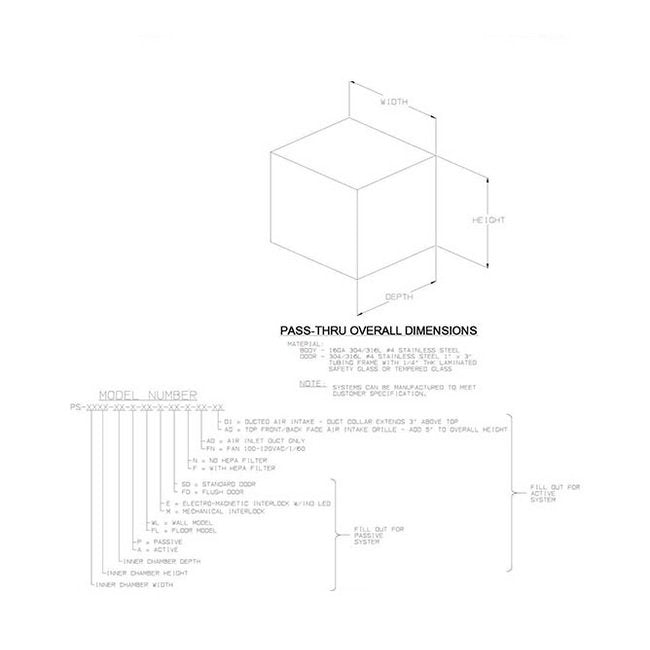

Wall Model Overall Dimensions Active Depth For Wall Model
38-1/2 in
Wall Model Overall Dimensions Active Height For Wall Model
55-1/2 in
Wall Model Overall Dimensions Active Width For Wall Model
43-1/2 in
Wall Model Overall Dimensions Note For Active Wall Model Overall
Dimensions are mechanical and electro-magnetic interlocks.
Wall Model Overall Dimensions Note For Passive Wall Model Overal
Height dimensions for mechanical interlock add 8-1/2". For electro-magnetic interlock.
Wall Model Overall Dimensions Passive Depth For Wall Model
38-1/2 in
Wall Model Overall Dimensions Passive Height For Wall Model
45 in
Wall Model Overall Dimensions Passive Width For Wall Model
43-1/2 in
