LFI 42-Inch Wall Flush Door Pass Through

LFI 42-Inch Wall Flush Door Pass Through

FLU-19d3ee

High-quality 42-Inch Wall Flush Door Pass Through with customizable interlocks and advanced features for secure room transfers in institutional settings.

$3,499.99
$3,499.99
Sale

Initiate Order

LFI 42-Inch Wall Flush Door Pass Through

LFI 42-Inch Wall Flush Door Pass Through

$3,499.99

Quantity: 1

Claim Your Seller Account

LFI 42-Inch Wall Flush Door Pass Through

LFI 42-Inch Wall Flush Door Pass Through

$3,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

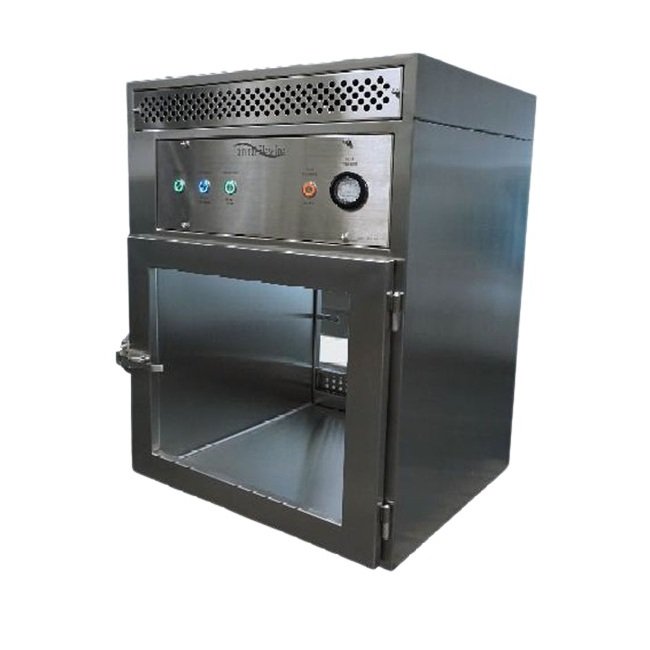

The LFI 42-Inch Wall Flush Door Pass Through is a premium solution designed for seamless inter-room transfer while maintaining strict access control. Constructed with heavy-duty stainless steel, it features customizable interlock systems, including electromagnetic options, and various optional features like LED lighting and HEPA filtration. With precisely engineered dimensions and superior craftsmanship, this pass through ensures long-term reliable operation, suitable for industrial, healthcare, and research facilities.

Product Specifications

Construction Construction
A completely self-contained system constructed of double wall, heavy duty 14 and 16 ga stainless steel. Continuously welded interiors ground smooth and polished provide a seamless 1/2" rad. coved corner interior as standard method of construction. Heavy duty stainless steel latches assure a positive door sea!. Doors are manufactured from either heavy gauge double wall or tubular construction. Doors are available with Lexan, Plexiglas, or Laminated Safety Glass viewing panels. HEPA filtered Pass Thrus active feature a continuously welded knife edge incorporated into the top of the Pass Thru flush mounted with a perforated stainless steel grille located downstream of the HEPA filter. Grilles are removable and accessible from within the Pass Thru. Systems are fully assembled and wired at our facility prior to shipping.
Controls And Features Controls And Features

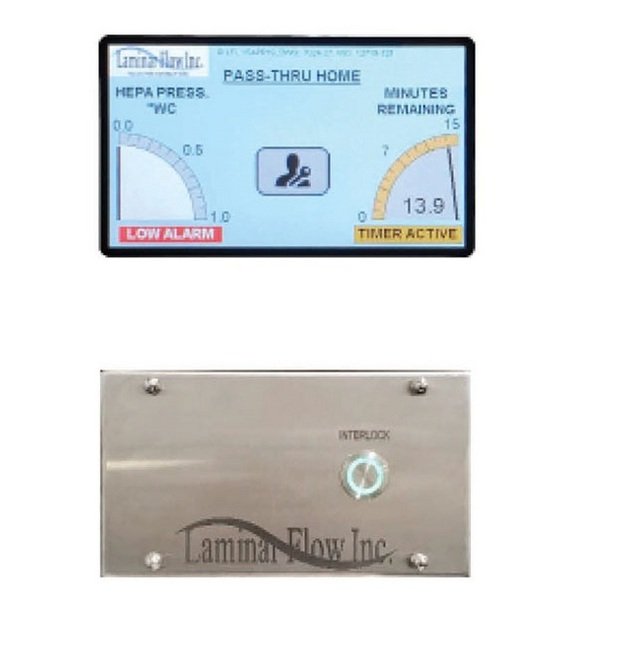

Pass-Thru Controls and Features All Pass-Thrus can be equipped with an assortment of optional features:Electromagnetic interlocks integrated into the Pass Thru body with Red/Green LED indicator lights.Automatic doors with Wave Switch operation.Interior LED lightingColor Touchscreen PLC/HMI for Pass Thru control and diagnostic Options for Pass Thrus with HEPA filtrationForced air blower with speed controlFilter Pressure monitoring gaugeVisual and/or audible alerts for Low and High PressureDigital Purge timer with additional Red/Green indicator lightsBAS Feedback for remote monitoringOther features are available on request, discuss any custom requirements with the LFI sales team, they will be happy to meet your unique needs.
Filters Filters
If specified, HEPA or ULPA filters are available. Gel Seal technology is utilized as a standard with all of our systems. This design allows for the gel trough to be around the filter and the knife edge integrally incorporated into the Pass Thru. Perforated stainless steel grilles located downstream and flush to the interior protect the filter and provide even air distribution. Both serviced from within the Pass Thru chamber.
Internal Sizes Depth
48 in
Internal Sizes Height
42 in
Internal Sizes Width
42 in
Note Note
Laminar Flow Inc. Pass Thrus are designed to protect product and ambient areas while passing through adjacent rooms with different classifications.Please note standard sizes shown. For custom sizes please contact a LFI sales representative.All systems constructed of 304 or 316L stainless steel polished to a number 4 finish.All industry standard electrical voltages and electrical configurations are available.If applicable, electrical connections, filters & lights may need to be installed in the field by others.Installation, electrical tie-in in field by others.
Options Options
Mechanical InterlockElectro-magnetic InterlockPLC controlsLED lightingAutomated door with wave technologyHEPA or ULPA filterSingle pass air flow with air ductSloped topSingle pass air flow with blowerRecirculating air flow with blowerRemovable shelfWall mountedFloor mountedVHP ports
Technical Specs Brands
Laminar Flow Inc.
Technical Specs Note For Internal Sizes
Unless noted otherwise, all dimensions are external.

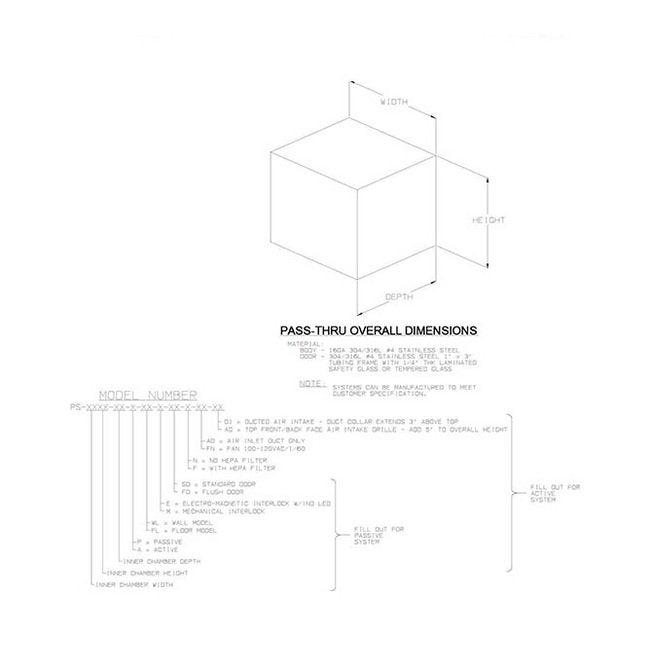

Wall Model Overall Dimensions Active Depth For Wall Model
50-1/2 in
Wall Model Overall Dimensions Active Height For Wall Model
55-1/2 in
Wall Model Overall Dimensions Active Width For Wall Model
49-1/2 in
Wall Model Overall Dimensions Note For Active Wall Model Overall
Dimensions are mechanical and electro-magnetic interlocks.
Wall Model Overall Dimensions Note For Passive Wall Model Overal
Height dimensions for mechanical interlock add 8-1/2". For electro-magnetic interlock.
Wall Model Overall Dimensions Passive Depth For Wall Model
50-1/2 in
Wall Model Overall Dimensions Passive Height For Wall Model
45 in
Wall Model Overall Dimensions Passive Width For Wall Model
49-1/2 in
