The LFI 4x4 Non-Potent Downflow Booth is a state-of-the-art solution for cleanroom environments, featuring a completely self-contained system with patent-pending construction. Constructed from heavy-duty stainless steel, this booth ensures long-term reliability and low maintenance. Equipped with HEPA or ULPA filters and advanced features such as LOP, LED lighting, and touchscreen controls, it meets stringent industry standards for efficient air filtration and product protection.
Product Specifications
Construction Construction
A completely self-contained system utilizing welded patent pending construction. Systems are fabricated from heavy duty 14 and 16 ga 304 or 316L stainless steel with a #4; polished finish. Exterior welds are kept to a minimum and ground smooth and polished. Continuously welded and formed patent pending filter grid ensures a completely self-contain leak free systems. Systems are shipped in sections with internal wiring completed in each section. Clean area walls manufactured per customer specification, solid double pan stainless steel or clear panels in tubing frame. Stainless steel overhead tubing at system entrance provides for curtain installation without penetrating filter plenum.
Controls And Features Controls And Features

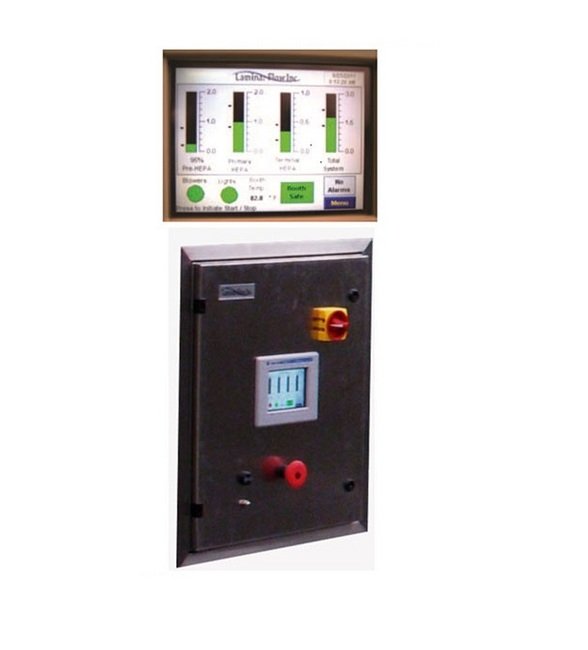

LOP (Local Operator Panel) can be located in clean area for easy access, panel is NEMA 4x.NEMA 12 remote with main fuses, overloads and drives.Interior LED lighting, 4000K, dimmableColor touchscreen PLC/HMI for DownFlow Booth control and diagnosticFilter pressure monitoring gaugeVisual and/or audible alerts for Low and High pressureBAS feedback for remote monitoringComplete FAT and binder manual supplied
Electrical Electrical
EC blowersAll control enclosures are UL 508 CertifiedAll wiring is in accordance with UL guidelinesHazardous location components available
High Efficiency Particulate Air Hepaultra Low Particulate Air Ul
If specified, HEPA or ULPA filters are available. Gel Seal technology is utilized as a standard with all of our systems. This design allows for the gel trough to be around the filter and the knife edge integrally incorporated into the Filter Plenum. Perforated stainless steel grilles located downstream and flush to the interior protect the filter and provide even air distribution. Both serviced from within the clean area.Provides up to ISO 5 99.9995 eff. to 0.3 microns OEL to 50 ug Supplemental movable screens available for lower OEL requirements
Note Note
Dimensions are based on standard LFI filters, substitution with a customer preferred filter size will change system dimensions.Laminar Flow Inc. DownFlow Booths are designed to protect product and/or personnel using potent or non-potent products with a classification of at least ISO 5 at 0.3 micros.Please note standard sizes shown. For custom sizes please contact a LFI sales representative.All systems constructed of 304 or 316L stainless steel polished to a number 4 finish.All industry standard electrical voltages and electrical configurations are available.If applicable, electrical connections, filters & lights may need to be installed in the field by others.Installation, electrical tie-in in field by others.
Options Options
BACNETcontrolsBAG-IN/BAG-OUT filter housingHEPA or ULPA terminal filtersMotor/blower access from outside or inside clean areaRoll up doorsModular sections for ease installationStainless steel side walls with reinforcing channelsPersonnel protective barriers for lower OEL requirements
Technical Specs Brands
Laminar Flow Inc.
Technical Specs Clean Area Length
47-3/4 in
Technical Specs Clean Area Width
47-7/8 in
Technical Specs Nominal Size
4 x 4 ft
Technical Specs Overall Length
72 in
Technical Specs Overall Width
52 in
