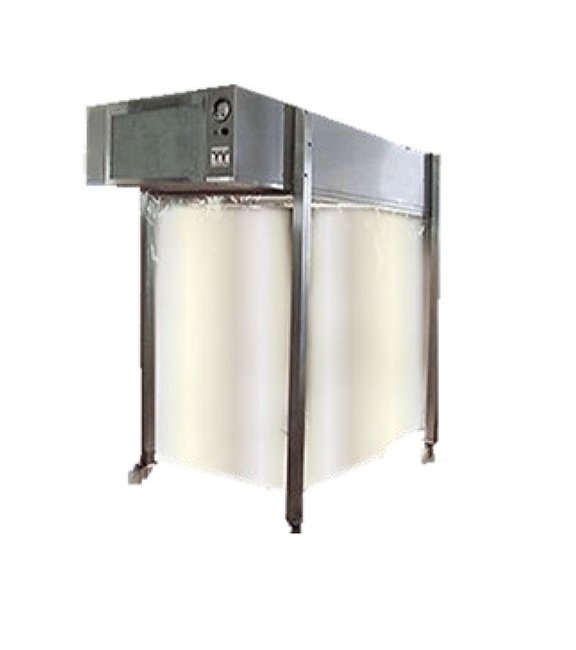

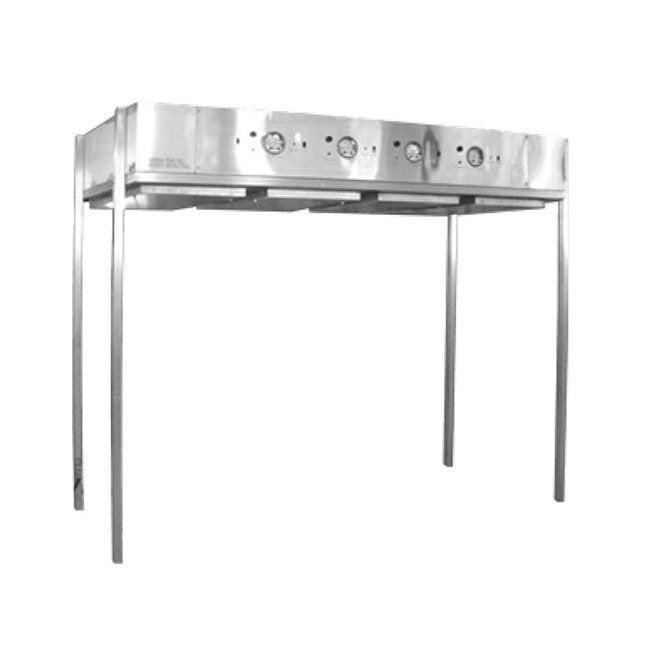

The LFI Portable Cleanroom offers a compact and customizable solution for ISO 5 or ISO 4 applications. With HEPA or ULPA filter options, stainless steel construction, integrated controls, and high-efficiency EC motor/blowers, this cleanroom ensures precise air filtration and reliable performance. Its patented welded construction and gel seal technology meet stringent cleanliness requirements, making it ideal for government and institutional use.
Product Specifications
Construction Construction
LFI's PCR is a completely self-contained system utilizing patented welded construction. Systems are fabricated entirely from heavy-duty 14 and 16 ga 304/304L or 316L stainless steel with a #4; polished finish. Exterior welds are kept to a minimum and ground smooth and polished. Continuously welded and formed patented filter grid ensures a completely self-contained leak-free system. 1-piece formed light channels are recessed and continuously welded to the filter grid. Stainless steel perimeter tubing allows for curtain installation without penetrating the filter plenum.
Construction Electrical
EC Blowers.Registered UL508a facility.All UL or ETL components are used.All wiring in accordance with UL Guidelines.Hazardous location components available.
Construction Filters
HEPA or ULPA filters are available that provide up to ISO 4 or 99.9995 % to 0.012 microns. Gel seal technology is utilized as a standard with all our systems. The knife edge around the filter plenum is integrally incorporated into the gel trough around the filter. Perforated stainless steel grilles located downstream and flush to the filter protect the filter and provide even air distribution. Both can be serviced from within the clean area.
Construction Large Intake Prefilters
All LFI prefilters are a 75% ASHRAE efficient prefilter pad that fits securely within an assembled, re-useable PVC frame. This type of prefilter eliminates the shedding of contaminates associated with cardboard framed prefilters. All prefilter intakes are sized to allow the maximum amount of flow.
Controls And Features Controls And Features
Entire unit is constructed of 304/304L or 316L stainless steel.Integrated controls with multiple options.120V or 240V versions available with matching plug.LED Lighting, 4000K.Internal baffles to provide 90 fpm ± 20% on average.Injection and sample ports.HEPA plenum pressure monitoring.Visual/audible alerts for low and high pressure.BAS feedback for remote monitoring.99.999% HEPA gel seal removable room side.Perforated S/S removable HEPA screens 40% open.High Efficiency EC Motor/Blowers.

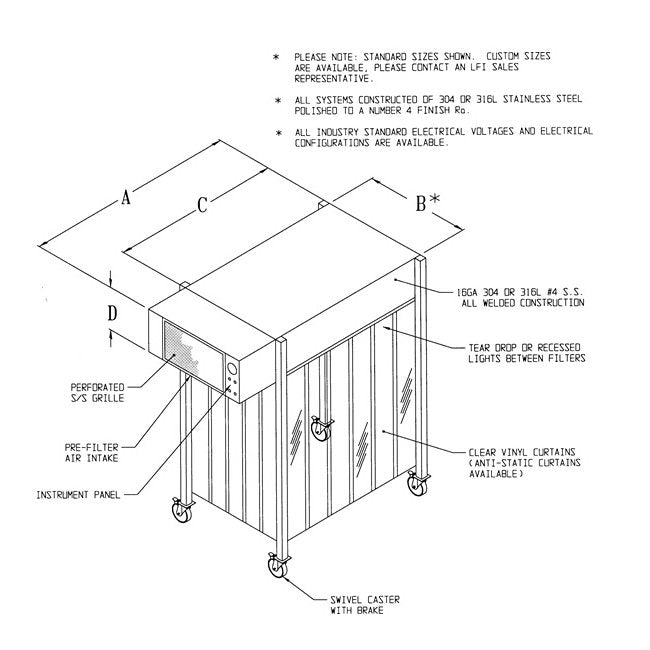

Dimensions And Weight Dimension A
74-3/4 in
Dimensions And Weight Dimension B
51-1/2 in
Dimensions And Weight Dimension C
52-3/4 in
Dimensions And Weight Dimension D
22 in
Dimensions And Weight Nominal Filter Area Size
4 x 4 ft
Dimensions And Weight Note For Dimensions
Dimension does not include legs.
Dimensions And Weight Weight
600 lb
Product Options Product Options
Custom configuration sizes.Standard Sizes Available.Casters.High CRI dimmable LED lighting.BAS/BMS monitoring and controls.ULPA 99.9995% Filters.Color touchscreen PLC/HMI for controls and Diagnostics.Standard or Non-static clear PVC curtain strip.
Technical Specs Brands
Laminar Flow Inc.
