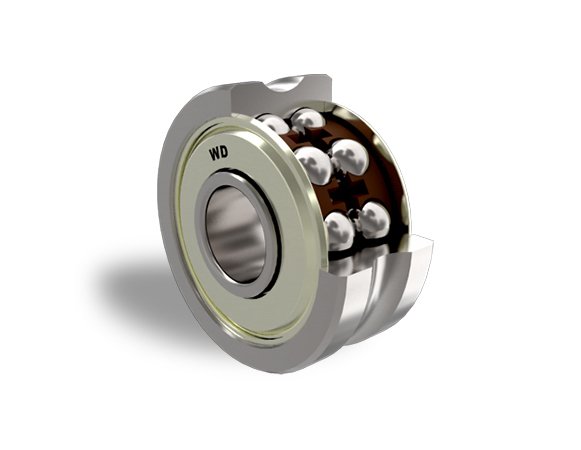

LFR Series Track Roller Bearings

Name: LFR Series Track Roller Bearings
Brand: WD Bearings
SKU: TRA-ef50e6
Price: 49.99 USD
Availability: OutOfStock

SKU:TRA-ef50e6

N/A

$49.99

Sale

Quantity

Expect your order to arrive on time.

All orders are processed through a secure, PCI-compliant checkout.

View full details

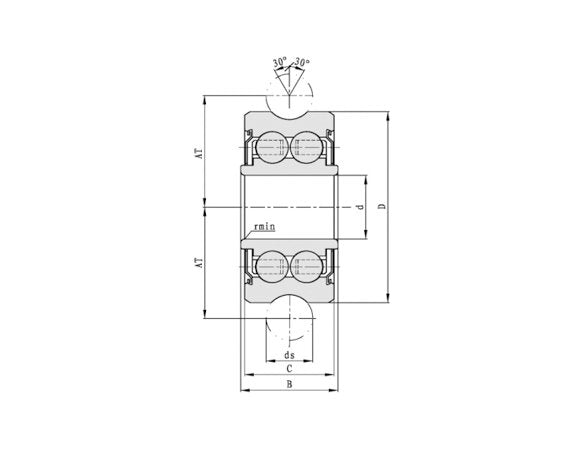

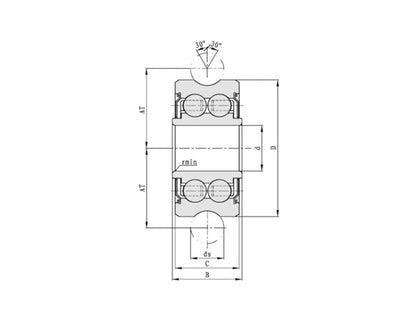

Product Specifications

Basic Size Bore Diameter

12 mm

Basic Size Dimension At

21.75 mm

Basic Size Dimension C

15.9 mm

Basic Size Dimension D2

17.1 mm

Basic Size Dimension Ds

10 mm

Basic Size Minimum Dimension R

0.6 mm

Basic Size Outside Diameter

35 mm

Basic Size Overall Bearing Width

15.9 mm

Load Rating Dynamic Cr Load Rating

8300 kN

Load Rating Static Cor Load Rating

5000 kN
