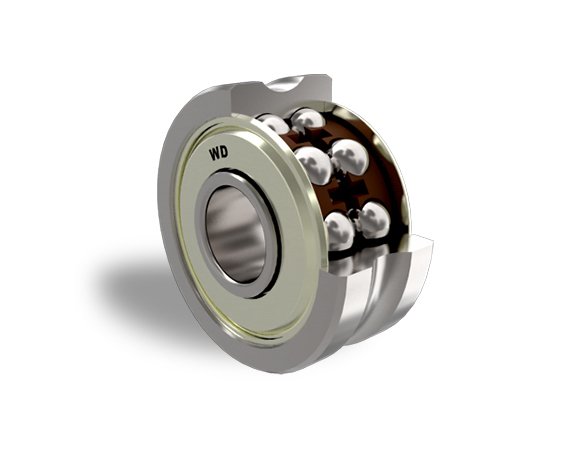

LFR Series Track Roller Bearings

Name: LFR Series Track Roller Bearings
Brand: WD Bearings
SKU: TRA-820119
Price: 49.99 USD
Availability: OutOfStock

SKU:TRA-820119

N/A

$49.99

Sale

Quantity

Expect your order to arrive on time.

All orders are processed through a secure, PCI-compliant checkout.

View full details

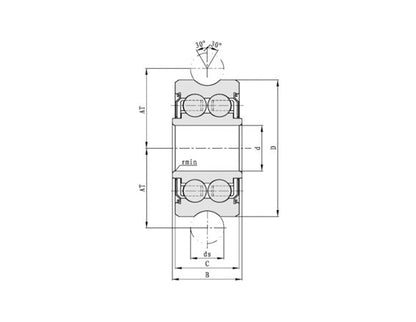

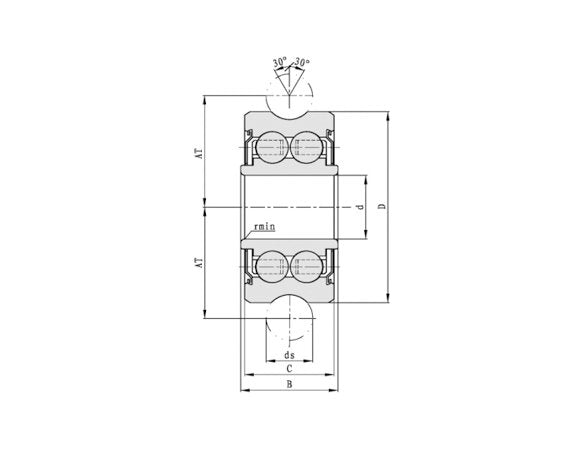

Product Specifications

Basic Size Bore Diameter

5 mm

Basic Size Dimension At

10.5 mm

Basic Size Dimension C

7 mm

Basic Size Dimension D2

8 mm

Basic Size Dimension Ds

6 mm

Basic Size Minimum Dimension R

0.2 mm

Basic Size Outside Diameter

17 mm

Basic Size Overall Bearing Width

8 mm

Load Rating Dynamic Cr Load Rating

1630 kN

Load Rating Static Cor Load Rating

900 kN
