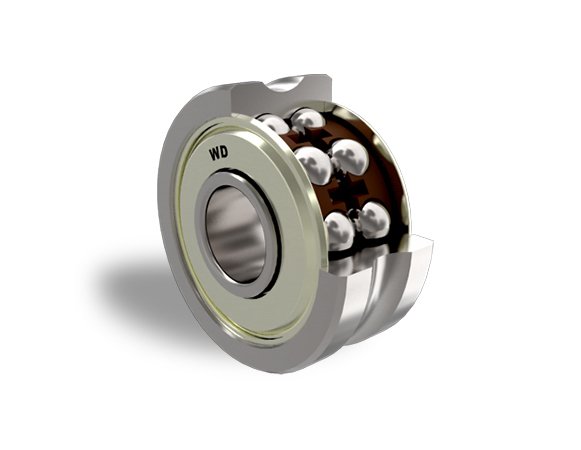

LFR Series Track Roller Bearings

Name: LFR Series Track Roller Bearings
Brand: WD Bearings
SKU: TRA-9b6862
Price: 49.99 USD
Availability: OutOfStock

SKU:TRA-9b6862

N/A

$49.99

Sale

Quantity

Expect your order to arrive on time.

All orders are processed through a secure, PCI-compliant checkout.

View full details

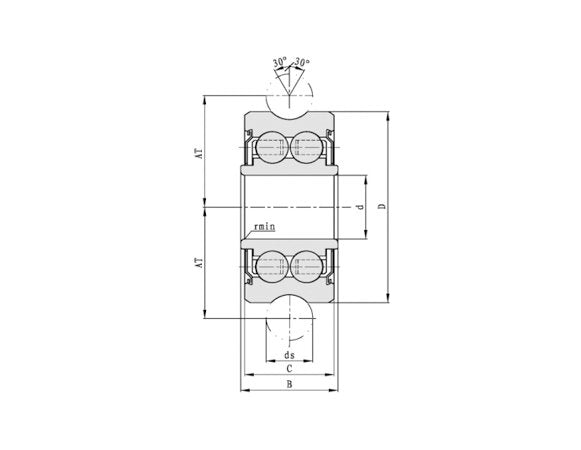

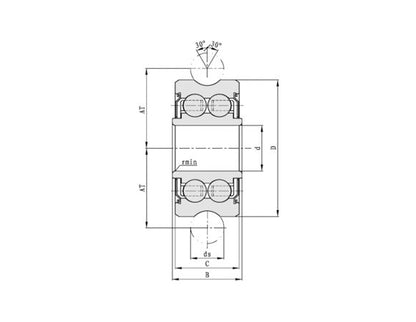

Product Specifications

Basic Size Bore Diameter

25 mm

Basic Size Dimension At

41 mm

Basic Size Dimension C

23.8 mm

Basic Size Dimension D2

37.4 mm

Basic Size Dimension Ds

20 mm

Basic Size Minimum Dimension R

1 mm

Basic Size Outside Diameter

72 mm

Basic Size Overall Bearing Width

25.8 mm

Load Rating Dynamic Cr Load Rating

23200 kN

Load Rating Static Cor Load Rating

16500 kN
