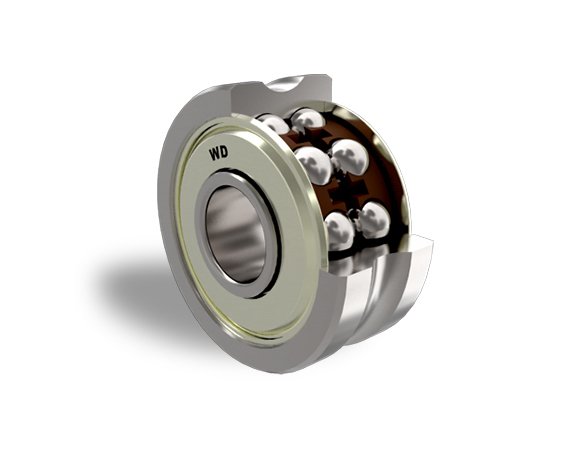

LFR Series Track Roller Bearings

Name: LFR Series Track Roller Bearings
Brand: WD Bearings
SKU: TRA-319502
Price: 49.99 USD
Availability: OutOfStock

SKU:TRA-319502

N/A

$49.99

Sale

Quantity

Expect your order to arrive on time.

All orders are processed through a secure, PCI-compliant checkout.

View full details

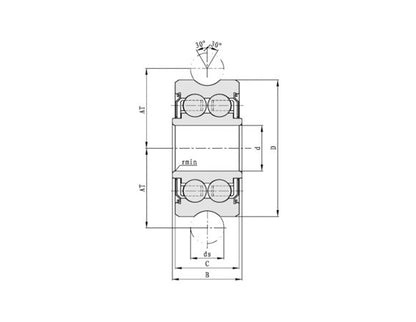

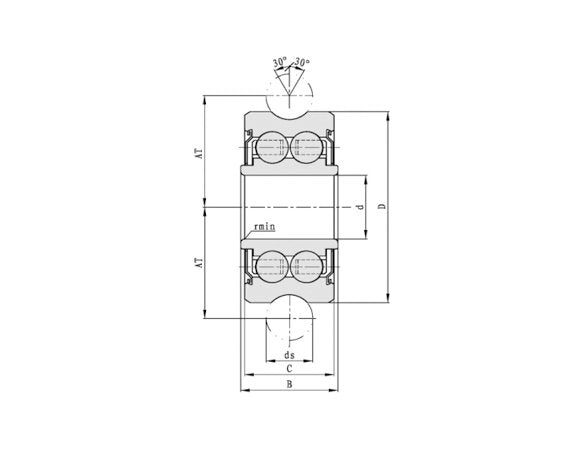

Product Specifications

Basic Size Bore Diameter

20 mm

Basic Size Dimension At

31.5 mm

Basic Size Dimension C

20.6 mm

Basic Size Dimension D2

26.5 mm

Basic Size Dimension Ds

16 mm

Basic Size Minimum Dimension R

1 mm

Basic Size Outside Diameter

52 mm

Basic Size Overall Bearing Width

22.6 mm

Load Rating Dynamic Cr Load Rating

15300 kN

Load Rating Static Cor Load Rating

10100 kN
